23 AIMB-252 User Manual
Chapter 1 Production Introduction

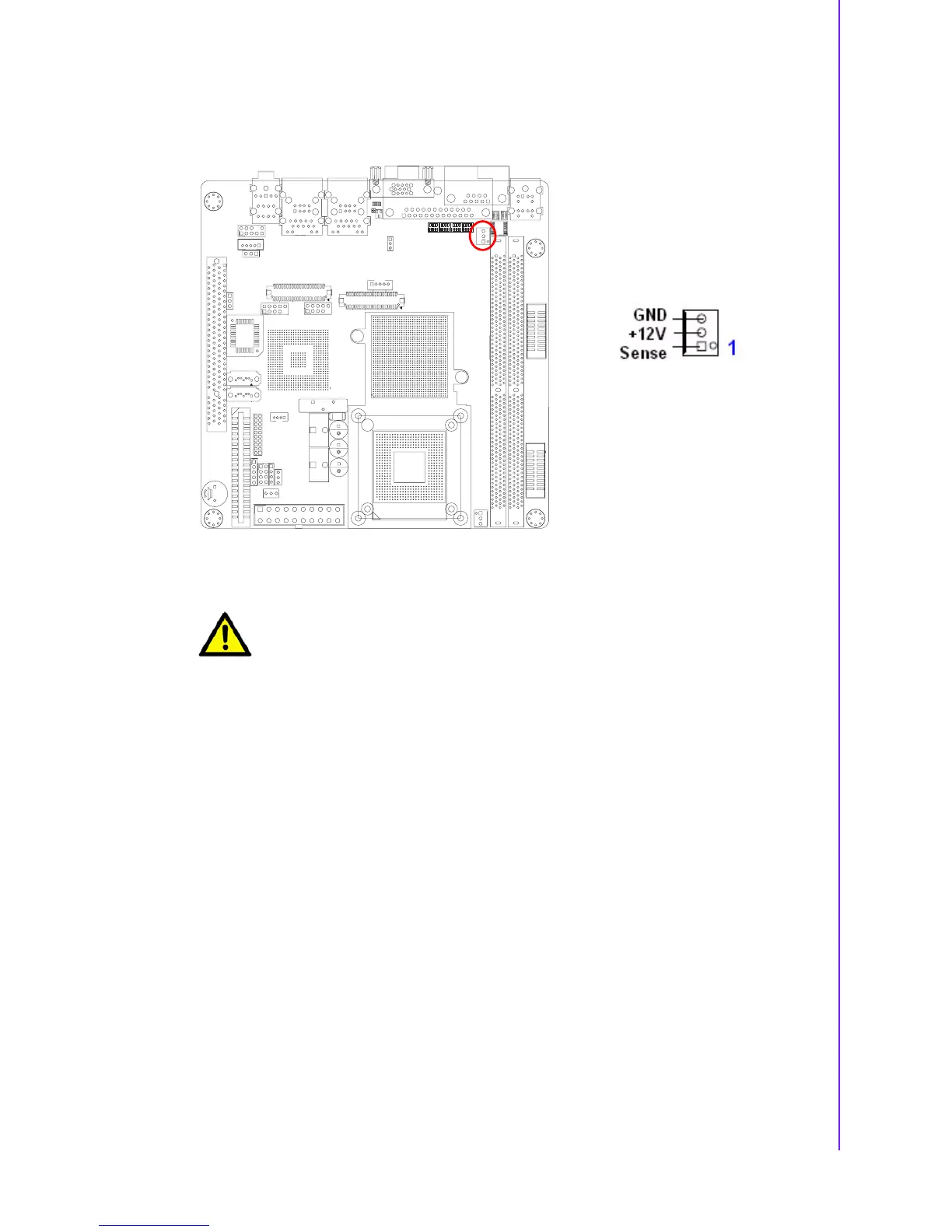

1.14.3 System Fan Connector (SYSFAN1)
Caution!
Do not forget to connect the fan cables to the fan connectors. Insuf-
ficient air flow inside the system may damage the motherboard
components, and hardware monitoring errors can occur if you fail
to plug this connector.
These are not jumpers! DO NOT place jumper caps on the fan con-
nectors.
