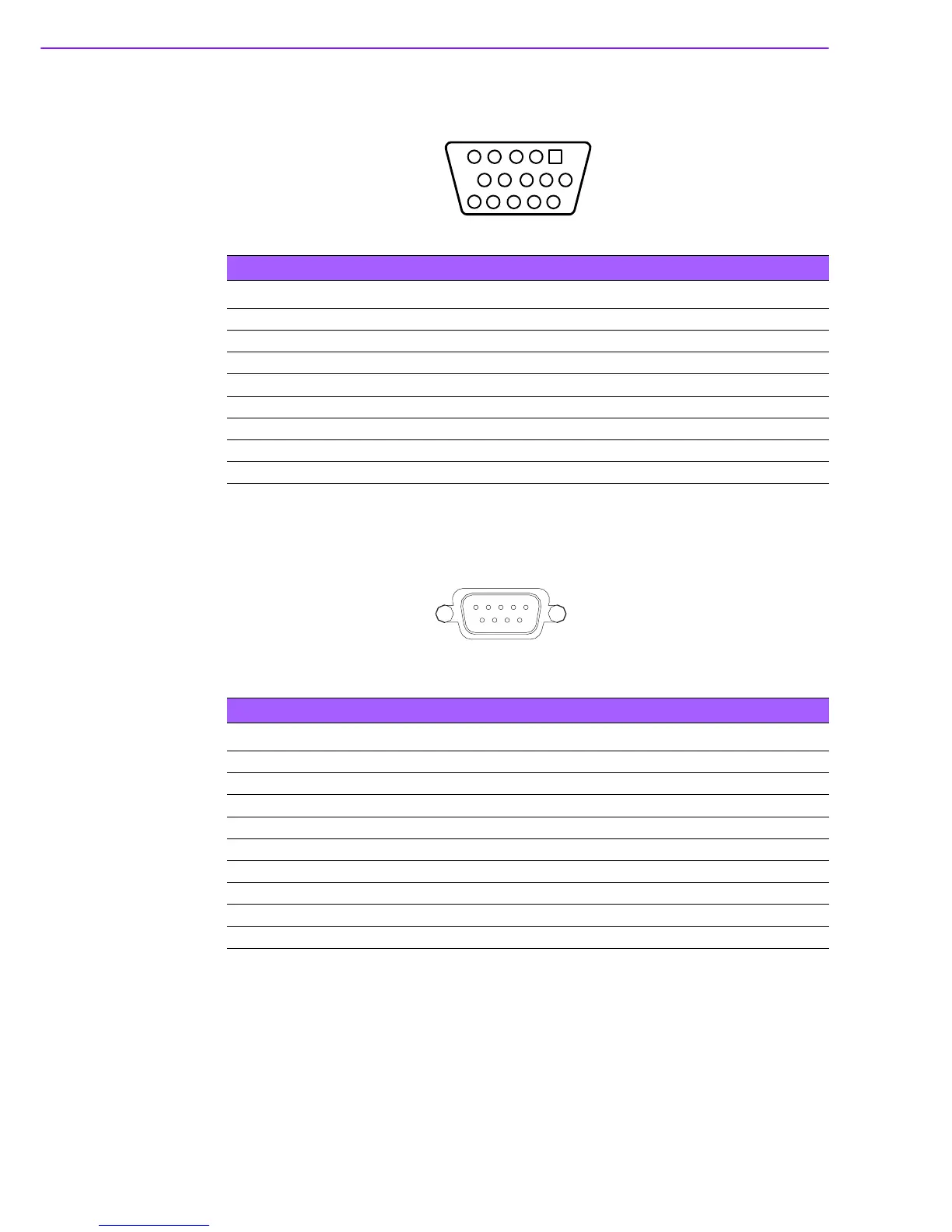

B.4 VGA Connector (VGA1)
B.5 RS-232 Serial Port (COM1)
Table B.4: VGA Connector (VGA1)
Pin Signal Pin Signal
1RED 9VCC
2 GREEN 10 GND
3BLUE 11N/C
4N/C 12SDAT
5 GND 13 H-SYNC
6 GND 14 V-SYNC
7GND 15SCLK
8GND
5
15
1
11
10 6
Table B.5: Rs-232 Serial Port (COM1)
Pin Signal
1DCD
2SIN
3SOUT
4DTR
5GND
6DSR
7RTS
8CTS
9RI
1
6
