Advantech AIMB-501 - Front Panel Connector (JFP3)

AIMB-501 User Manual 90

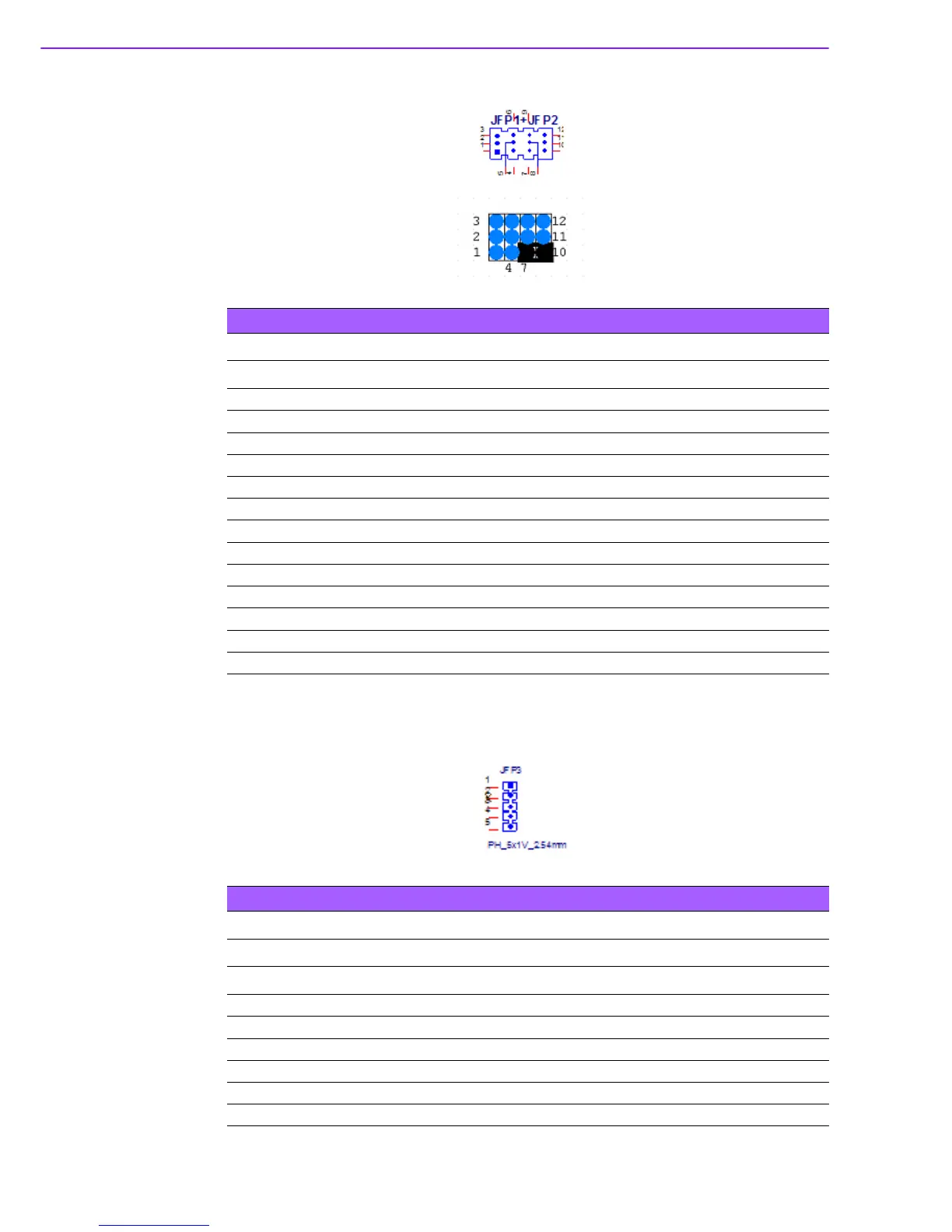

B.13 Front Panel Connector (JFP3)
Table B.12: Front Panel Connector (JFP1+JFP2)
JFP1+JFP2 Front Panel Connector
Part Number 12GA1653004300
Pin Pin Name
1+5V
2+3P3V
3O_PWRBTN#IN
4 SPK_CN17P2
5 ICH_SATALED#
6GND
7 SPK_CN17P4
8 SNMP_SDA
9 FP_SYS_RST#
10 SPK_CN17P3
11 SNMP_SCL
12 GND
Table B.13: Front Panel Connector (JFP3)
JFP3 Front Panel Connector
Part Number 12G06000005C
Pin Pin Name
1 SIO_SUSLED
2NC
3GND
4 #KEYLOCK
5GND
Note: Pin1,3 provide LED function ; Pin4,5 provide the ability to lock PS/2 (KBMS) .
