91 AIMB-501 User Manual
Appendix B I/O Pin Assignments

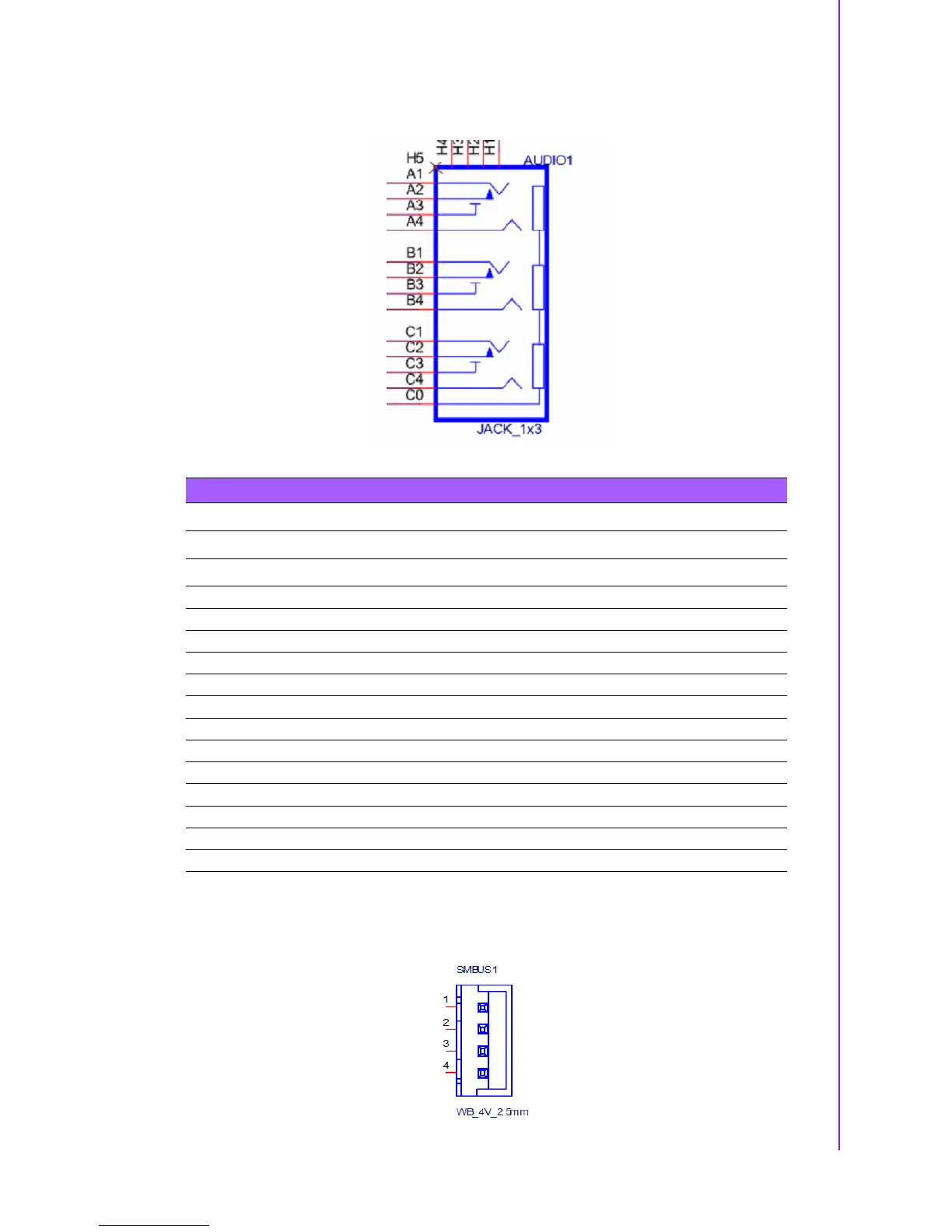

B.14 Audio jack (AUDIO1)
B.15 SM BUS Connector (SMBUS1)
Table B.14: Audio Jack (AUDIO1)
AUDIO1 Audio Jack
Part Number 12GS2400005F04
Pin Pin Name
A1 LIN1_L
A2 LIN1_JD
A3 GND
A4 LIN1_R
B1 FRONT_L
B2 FRONT_JD
B3 GND
B4 FRONT_R
C1 MIC1_L
C2 MIC1_JD
C3 GND
C4 MIC1_R
C0 GND
