1.6 AIMB-501 Board Diagram

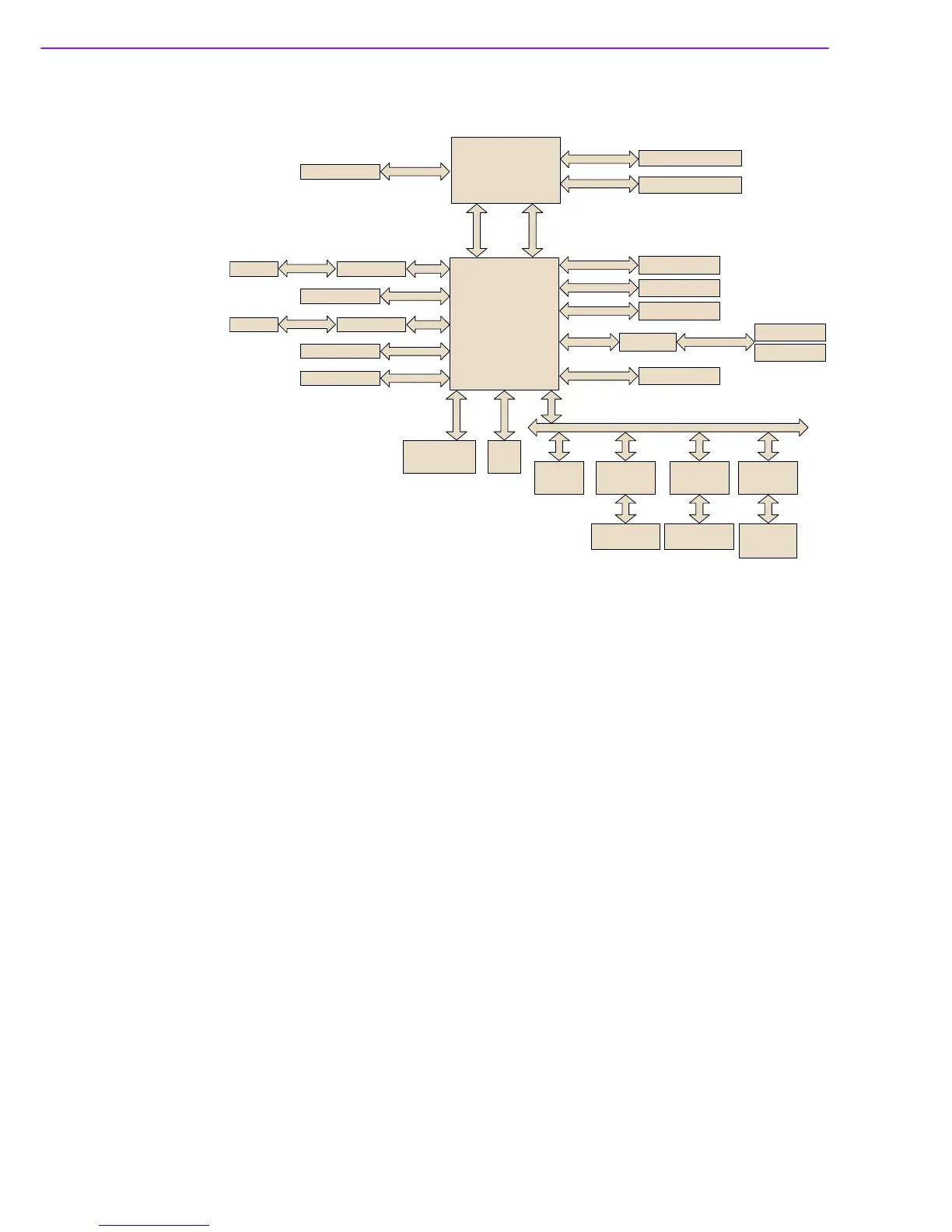

Figure 1.3 AIMB-501 Block Diagram
Intel Core i7/i5/i3
BIOS
Audio Codec
Realtek ALC892
TPM
(Optional)
4 RS-232
(1 w/RS-422/485)
4 RS-232
(1 w/RS-422/485)
2 x RS-232,
PS/2,Parallel,
GPIO,WDT
Fintek
81216AD
Fintek
81216AD
Super I/O
Nuvuton 6776F
Flex D isp lay
Interface
Direct Media
Interface
H61
PCIEx16
DDR3 1333/1600 MHz
DDR3 1333/1600 MHz
RTL 8111E-VL : LAN
PCI1 connector
PCI2 connector
PCIex16
CRT
CRT 1
DVI
DVI
USB 2.0
10 USB Ports
SPI
Intel HD
Audio
Chrontel 7308BLVDS
SDVO
LVD S
Dual Channel
24 bit/Channel
Chrontel 7317CRT2
SDVO
PCIex1
RTL 8111E-VL:LAN2
PCIex1
4 SATA2 Ports
300MB/s
32 bit/33 MHz PCI Bus
IT8892F
PCIex1
PCIex1 connector
1 PCIex1
Channel A
Channel B
LPC BUS
