Advantech AIMB-501 - CPU Fan Connector (CPU_FAN1); System FAN Connector (SYSFAN1;2)

19 AIMB-501 User Manual
Chapter 2 Connecting Peripherals

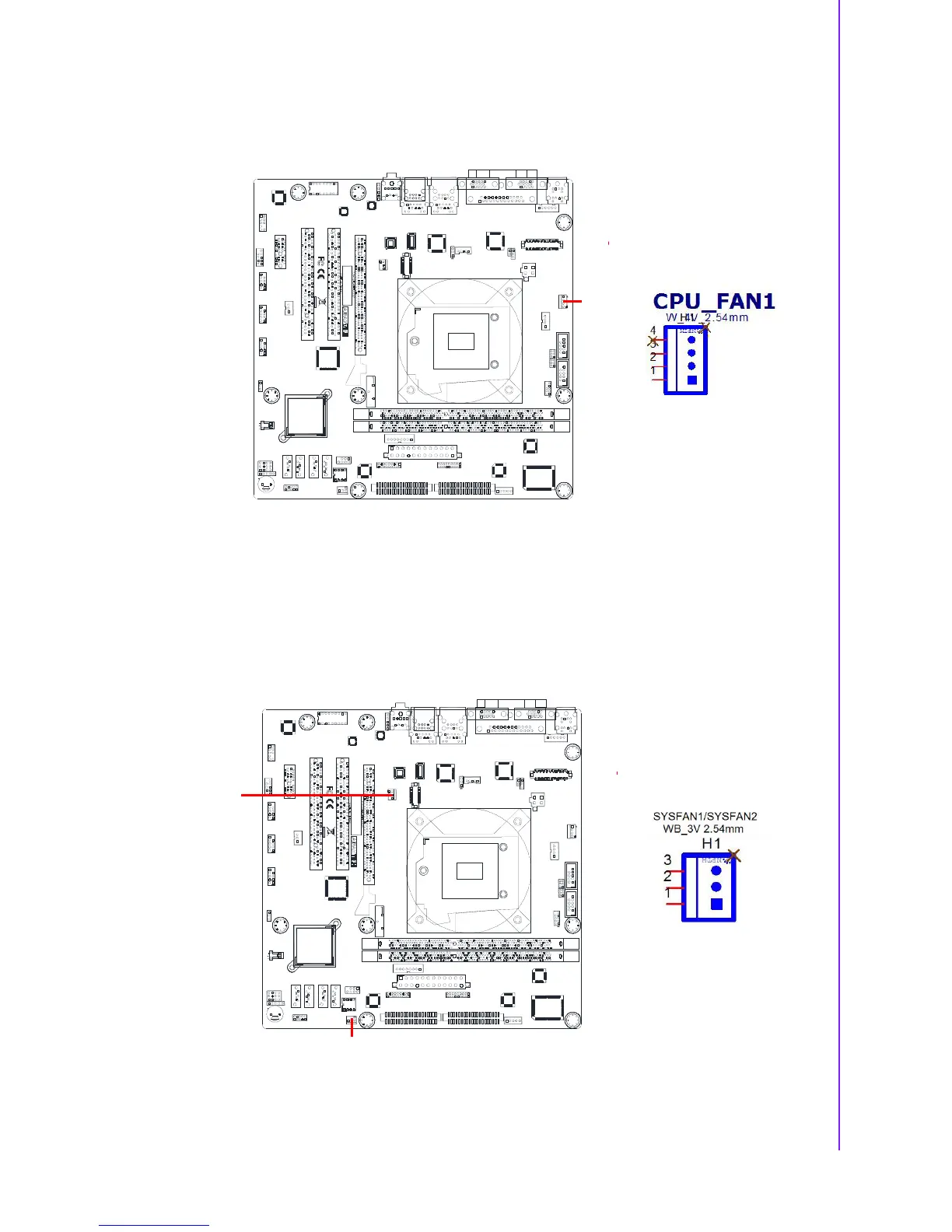

2.7 CPU Fan Connector (CPU_FAN1)
If a fan is used, this connector supports cooling fans of 500 mA (6 W) or less.
2.8 System FAN Connector (SYSFAN1/2)
If a fan is used, this connector supports cooling fans of 500 mA (6 W) or less.
CPU_FAN1
SYSFAN2
SYSFAN1
