Advantech AIMB-501 - SMBUS Header (SMBUS1); Serial ATA Interface (SATA1 ~ SATA4)

AIMB-501 User Manual 22

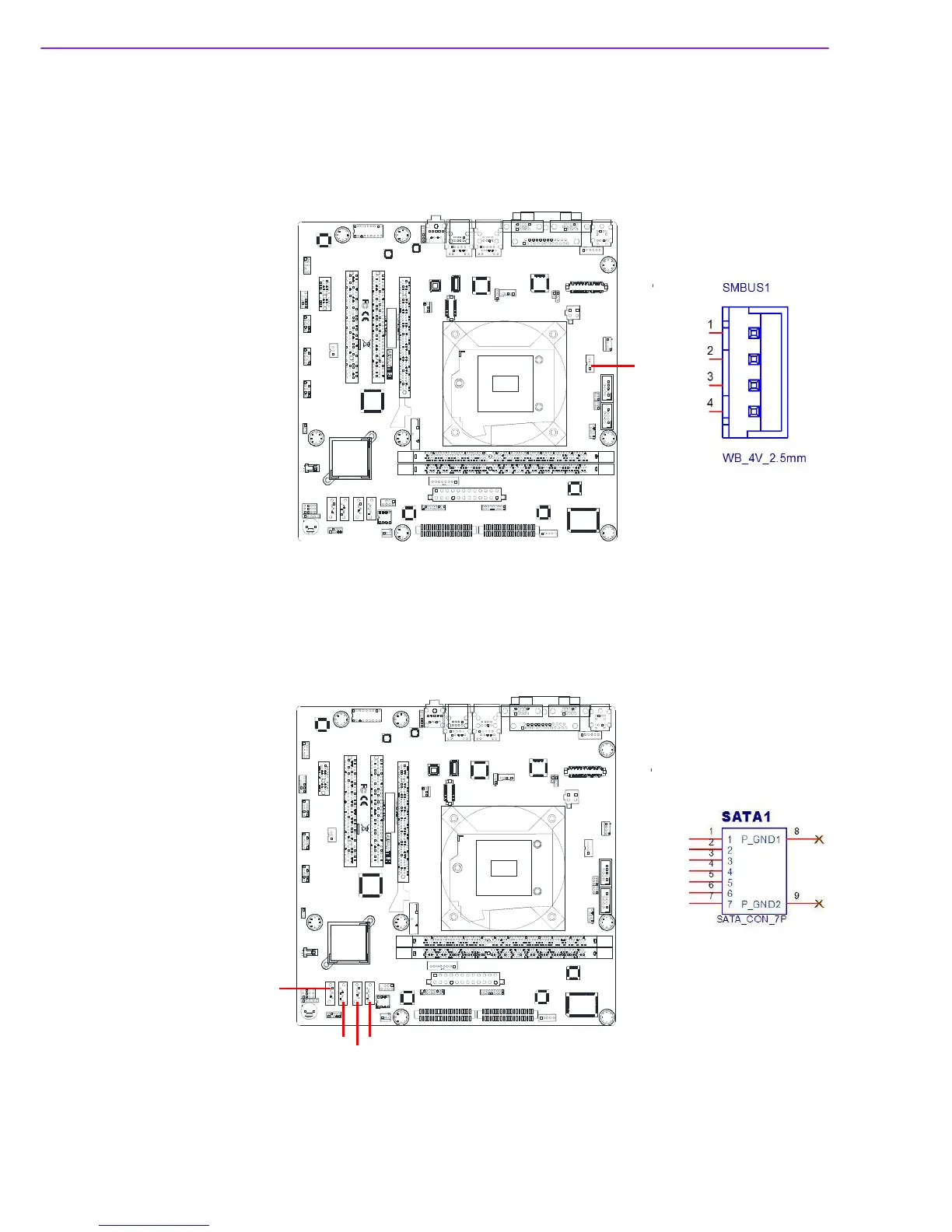

2.11 SMBUS header (SMBUS1)
AIMB-501 provides SMBUS connector for customer connection to SMBUS protocol
embedded device. It can be configured to I2C by customer's request.
2.12 Serial ATA Interface (SATA1 ~ SATA4)
AIMB-501 features a high performance Serial ATA interface (up to 300 MB/s) which
eases hard drive cabling with thin, space-saving cables.
SMBUS1
SATA1
SATA2
SATA3
SATA4
