AIMB-501 User Manual 84

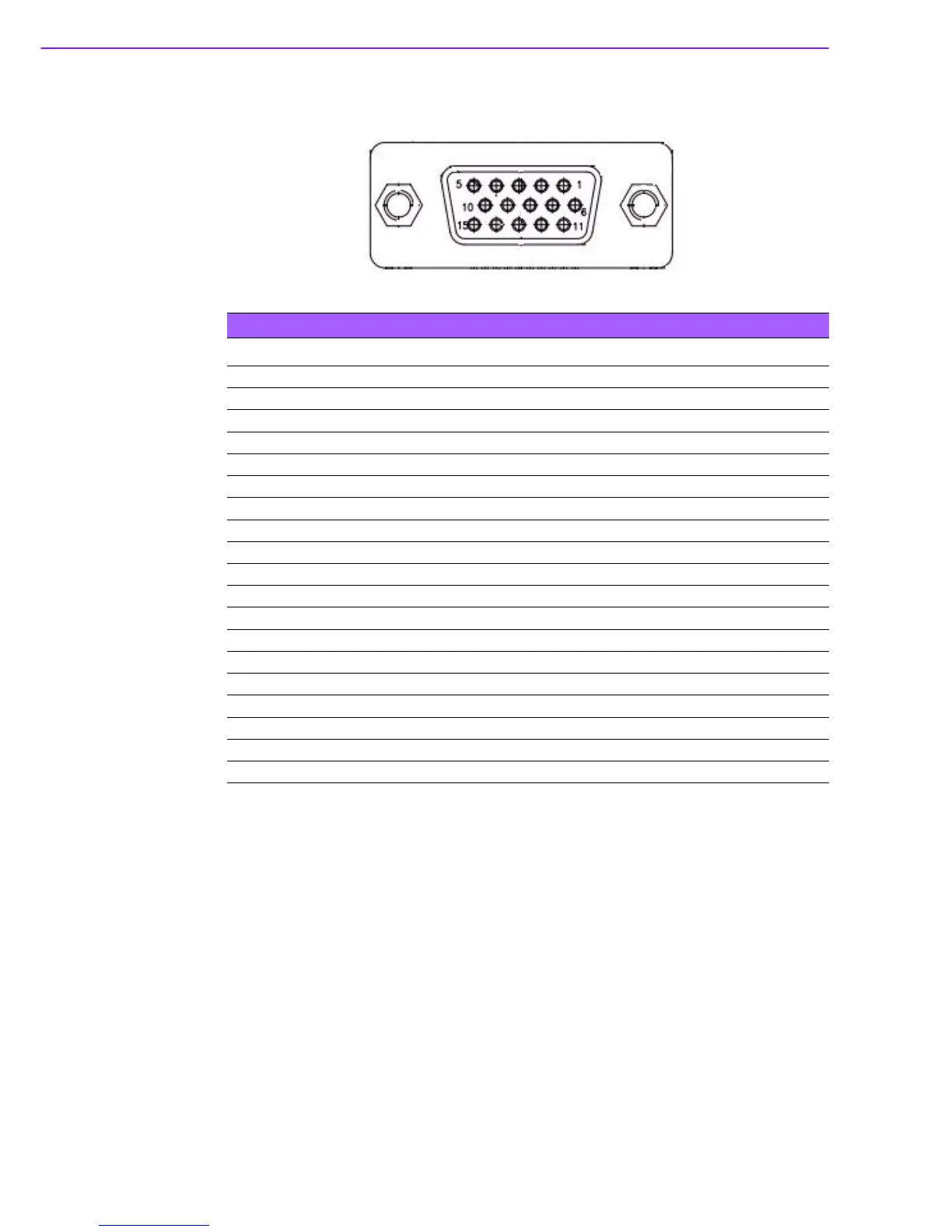

B.4 VGA connector (VGA1/VGA2)
Table B.4: USB Connector (USB01/23/45)
VGA1/VGA2 VGA Connector
Part Number 12G101152158
Pin Pin Name
1RED
2 GREEN
3BLUE
4NC
5GND
6GND
7GND
8GND
9VCC
10 GND
11 NC
12 DATA
13 HSYNC
14 VSYNC
15 DCLK
16 GND
17 GND
