83 AIMB-501 User Manual
Appendix B I/O Pin Assignments

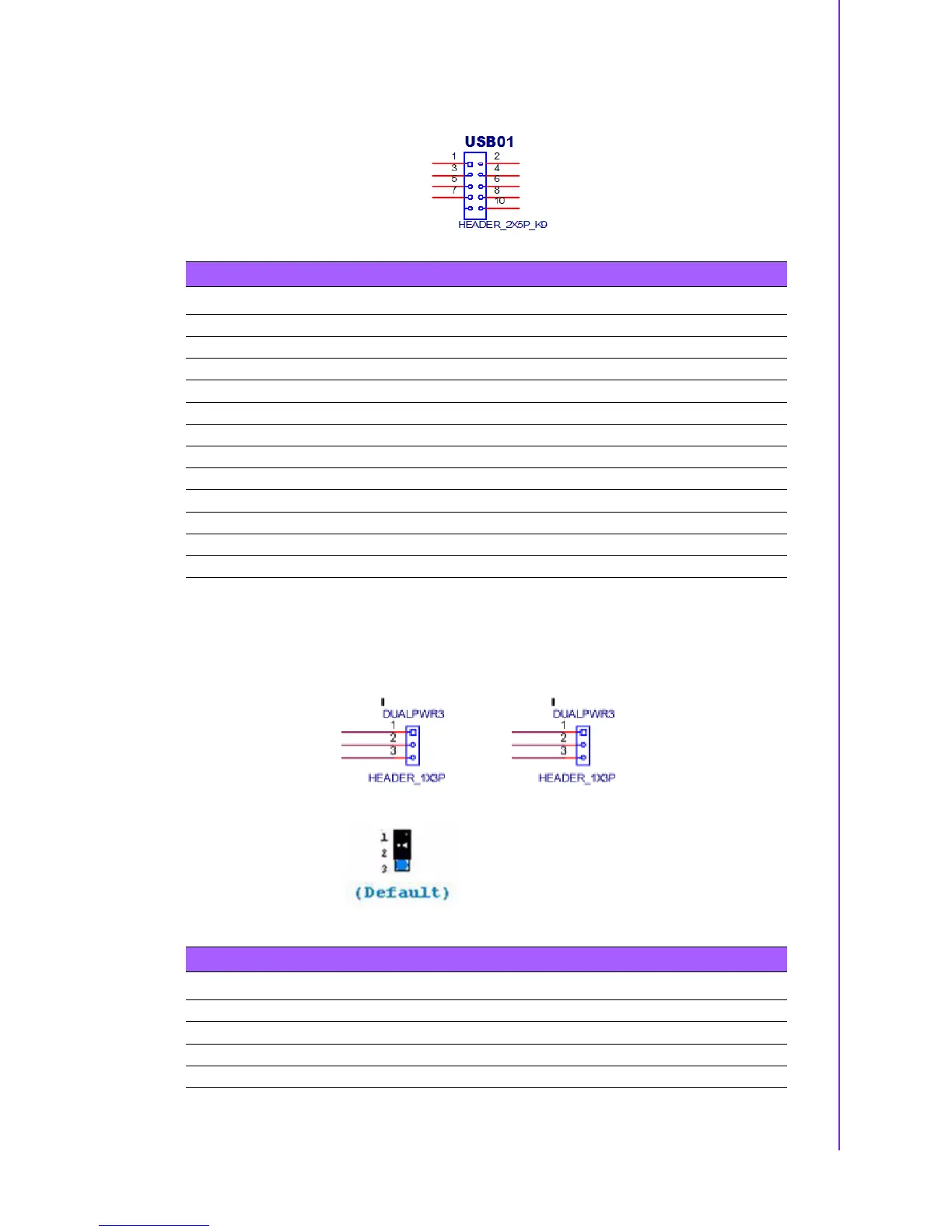

B.2 USB Connector (USB01/23/45)
B.3 USB/PS2 KBMS Power Setting (DUALPWR3/
DUALPWR2)
DUALPWR2- Jumper for on board USB
DUALPWR3- Jumper for rear side USB & PS/2 KBMS
Table B.2: USB Connector (USB01/23/45)
USB01/23/45 USB connector
Part Number 12GP06-016R000
Pin Pin Name
1 +USBV01
2 +USBV01
3LP0-
4LP1-
5LP0+
6LP1+
7GND
8GND
9NC
10 GND
Table B.3: USB/PS2 KBMS Power Setting (DUALPWR3/DUALPWR2)
DUALPWR3/DUALPWR2 USB/PS2 KBMS Power Setting
Setting Function
Pin Pin Name
1-2 USB/PS2 KBMS power from MOS
2-3 USB/PS2 KBMS power from +5V
