25 AIMB-501 User Manual
Chapter 2 Connecting Peripherals

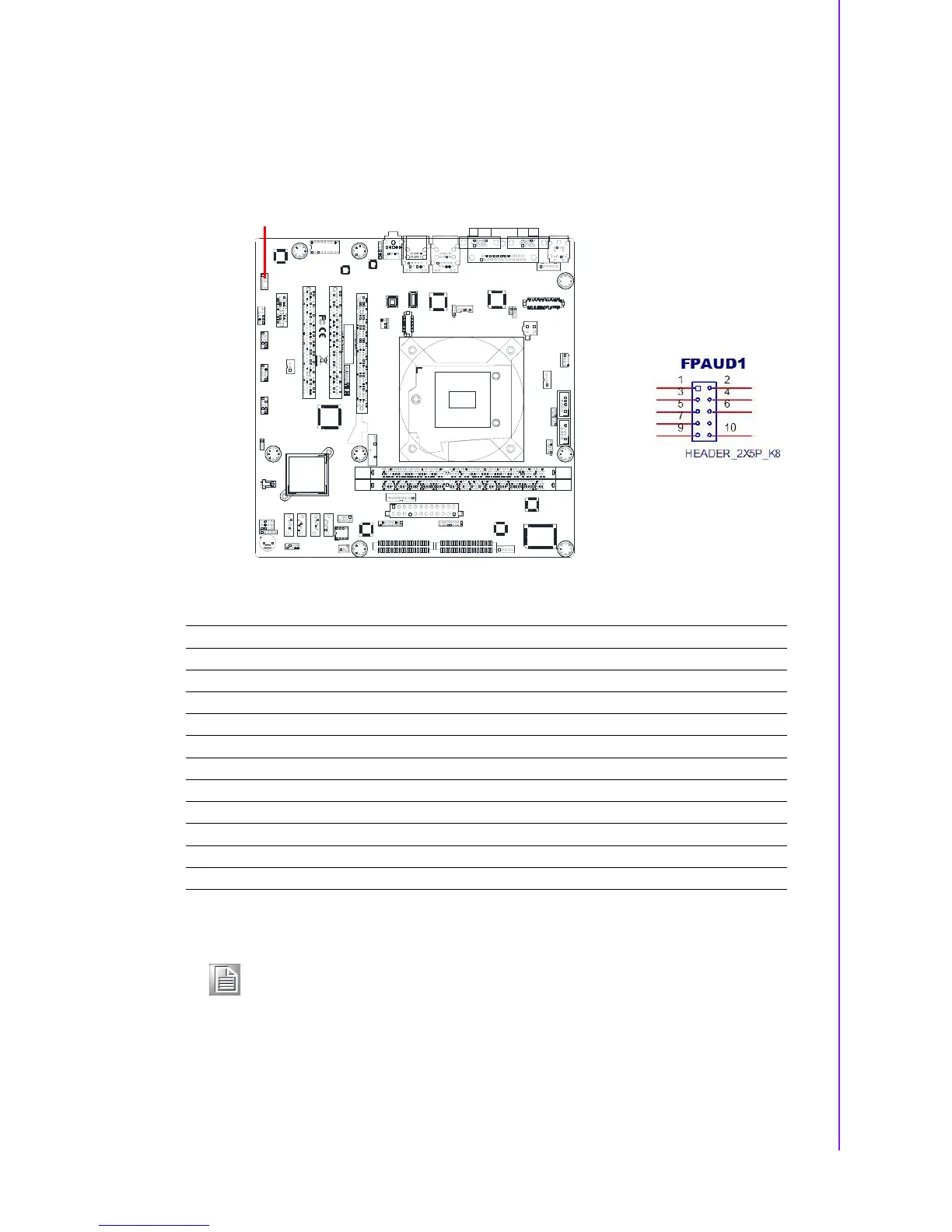

2.15 Front Headphone Connector (FPAUD1)
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC’97 (optional) audio standard. Connect this connector
with the front panel audio I/O module cable.
FPAUD1 Front audio header
Pin Pin Name
1MIC2_L
2GND
3MIC2_R
4 F_AUDIO_DET#
5LIN2_R
6MIC2_JD
7 SENSE_B
8NC
9LIN2_L
10 LIN2_JD
Note! For motherboards with the optional HD Audio feature, we recommend
that you connect a high-definition front panel audio module to this con-
nector to take advantage of the motherboard’s high definition audio
capability.
FPAUD1
