93 AIMB-501 User Manual
Appendix B I/O Pin Assignments
B.18 Front Audio Header (FPAUD1)
Table B.17: VOLT Connector (VOLT1)
VOLT1 VOLT Connector
Part Number 12GA1655008020
Pin Pin Name
1+5VA
2GND
3GND
4-5V
5+5V
6 +3P3V
7-12V
8 +12V

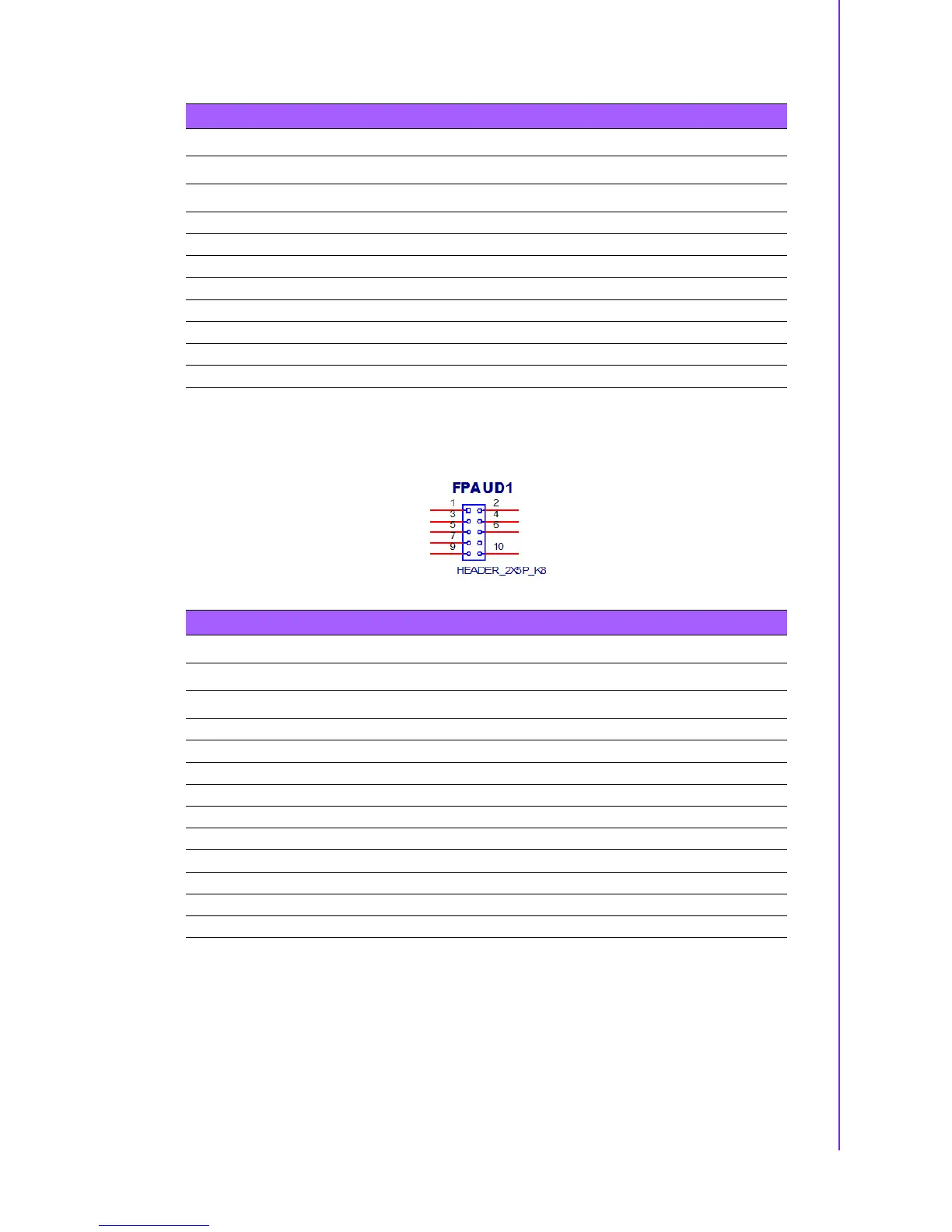

Table B.18: Front Audio Header (FPAUD1)
FPAUD1 Front Audio Header
Part Number 12G06105010V
Pin Pin Name
1 MIC2_L
2GND
3 MIC2_R
4 F_AUDIO_DET#
5LIN2_R
6 MIC2_JD
7 SENSE_B
8NC
9LIN2_L
10 LIN2_JD
