85 AIMB-501 User Manual
Appendix B I/O Pin Assignments

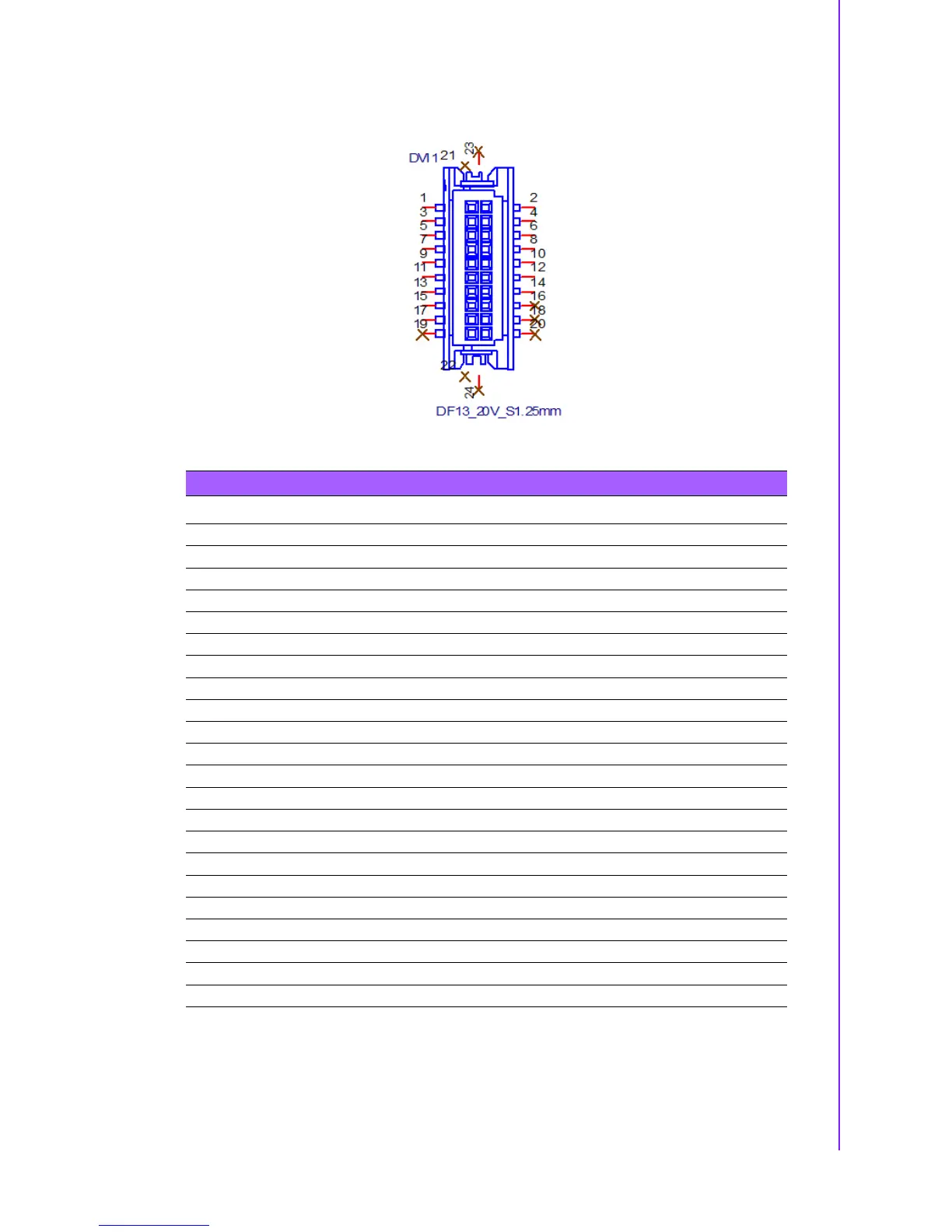

B.5 DVI Connector (DVI1)
Table B.5: DVI Connector (DVI1)
DVI1 DVI Connector
Part Number 12GS1600030H03
Pin Pin Name
1 DVI_TMDS_DATA0_N
2+5V_DVI
3 DVI_TMDS_DATA0_P
4 DVI_TMDS_CLK_P
5GND
6 DVI_TMDS_CLK_N
7 DVI_TMDS_DATA1_N
8GND
9 DVI_TMDS_DATA1_P
10 TMDS1_DDC_SC
11 GND
12 TMDS1_DDC_SD
13 DVI_TMDS_DATA2_N
14 TMDS1_HPD
15 DVI_TMDS_DATA2_P
16 NC
17 +5V_DVI
18 NC
19 NC
20 NC
