AIMB-501 User Manual 88

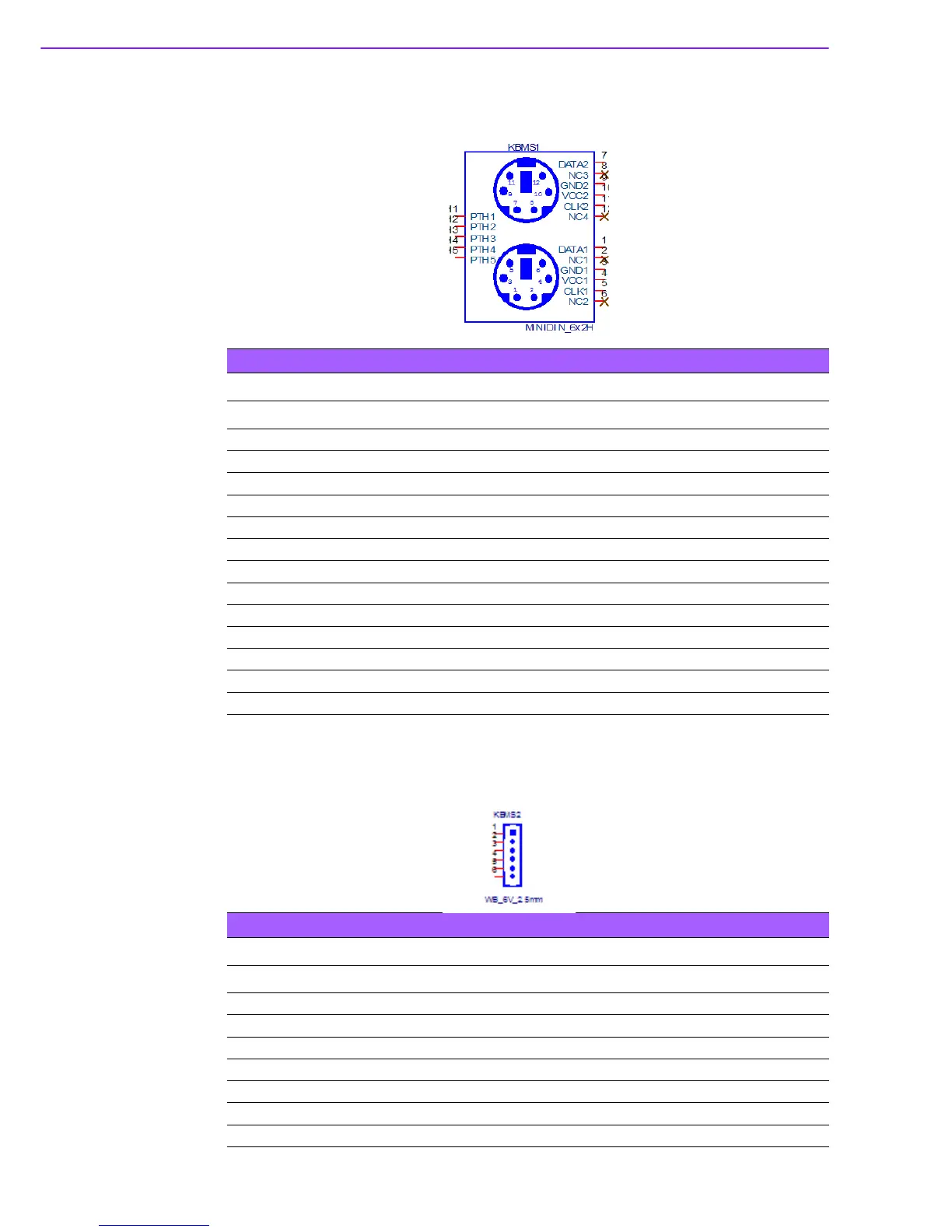

B.8 KB/MS Connector (KBMS1)
B.9 KB/MS Header (KBMS2)
Table B.8: KB/MS Connector (KBMS1)
KBMS1 KB/MS Connector
Part Number 12G14101306P
Pin Pin Name
1 CKBDATA
2NC
3GND
4 +5V_KBMS
5 CKBCLK
6NC
7CMSDATA
8NC
9GND
10 +5V_KBMS
11 CMSCLK
12 NC
Table B.9: KB/MS Header (KBMS2)
KBMS2 KB/MS Header
Part Number 12GA1655006020
Pin Pin Name
1 CKBCLK
2 CKBDATA
3CMSDATA
4GND
5 +5V_KBMS
6CMSCLK
