AIMB-501 User Manual 82

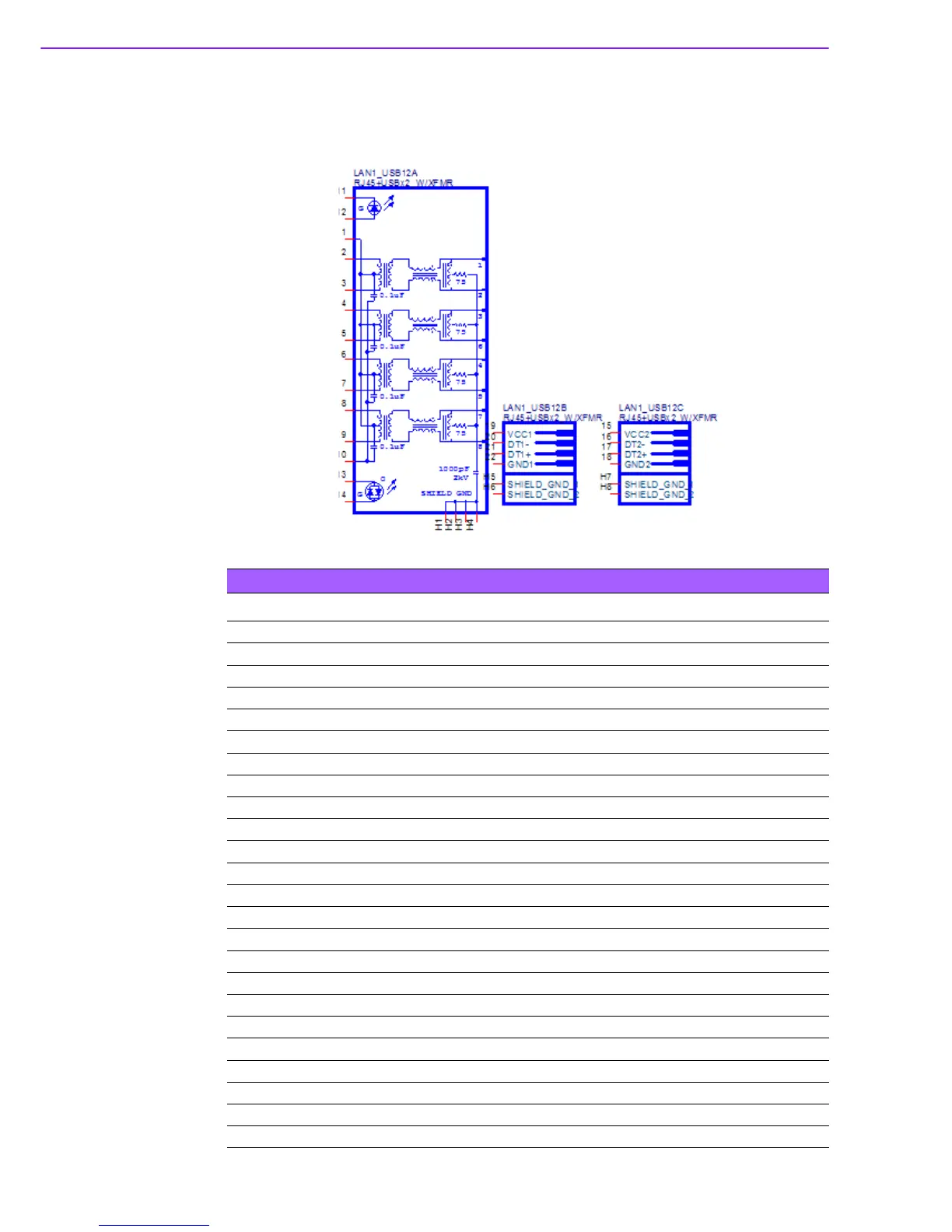

B.1 LAN&USB Connector (LAN1_USB12,
LAN2_USB34)
Table B.1: LAN&USB Connector (LAN1_USB12, LAN2_USB34)
LAN1_USB12, LAN2_USB34 LAN&USB Connector
Part Number 12GA1652003674
Pin Pin Name
1GND
2 LAN_MDI0_P
3 LAN_MDI0_N
4 LAN_MDI1_P
5 LAN_MDI1_N
6 LAN_MDI2_P
7 LAN_MDI2_N
8 LAN_MDI3_P
9 LAN_MDI3_N
10 GND
11 LAN_ACT#
12 LAN_ACTP
13 LINKLED#_N
14 LINKLED#_Q
15 +USBV89
16 LP9-
17 LP9+
18 GND
19 +USBV89
20 LP8-
21 LP8+
22 GND
