AIMB-501 User Manual 46
Serial Port 6 Configuration
 Serial Port
To “enable” or “disable” Serial Port 6.
 Change Settings
To select the IO address/IRQ setting for serial port 6.

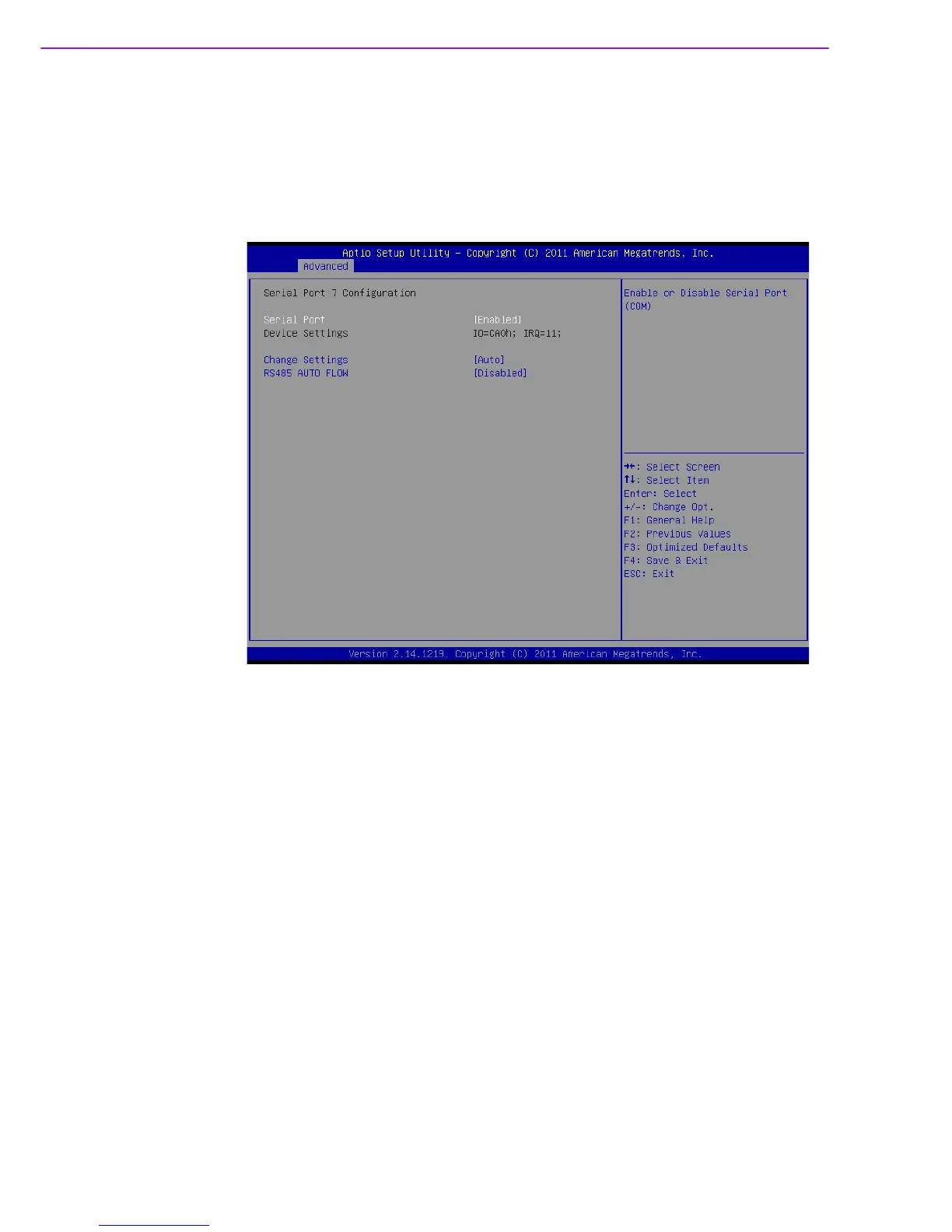

Serial Port 7 Configuration
 Serial Port
To “enable” or “disable” Serial Port 7.
 Change Settings
To select the IO address/IRQ setting for serial port 7.
 Auto flow control
When the COM is to set as RS-485, it supports auto flow control function.
