53 AIMB-501 User Manual
Chapter 3 BIOS Operation
 LAN controller
Enables or disables the LAN1/2 controller.
 LAN option-ROM
Enables or disables the LAN1/2 option-ROM.
 PCIE Wake
Enables or disables PCIE device wake up from sleep state.
 High Precision Timer
Enables or disables the high precision timer.
 SLP_S4 Assertion Width
This item allows users to set a delay of sorts.
 Restore AC Power Loss
This item allows users to select off, on and last state.

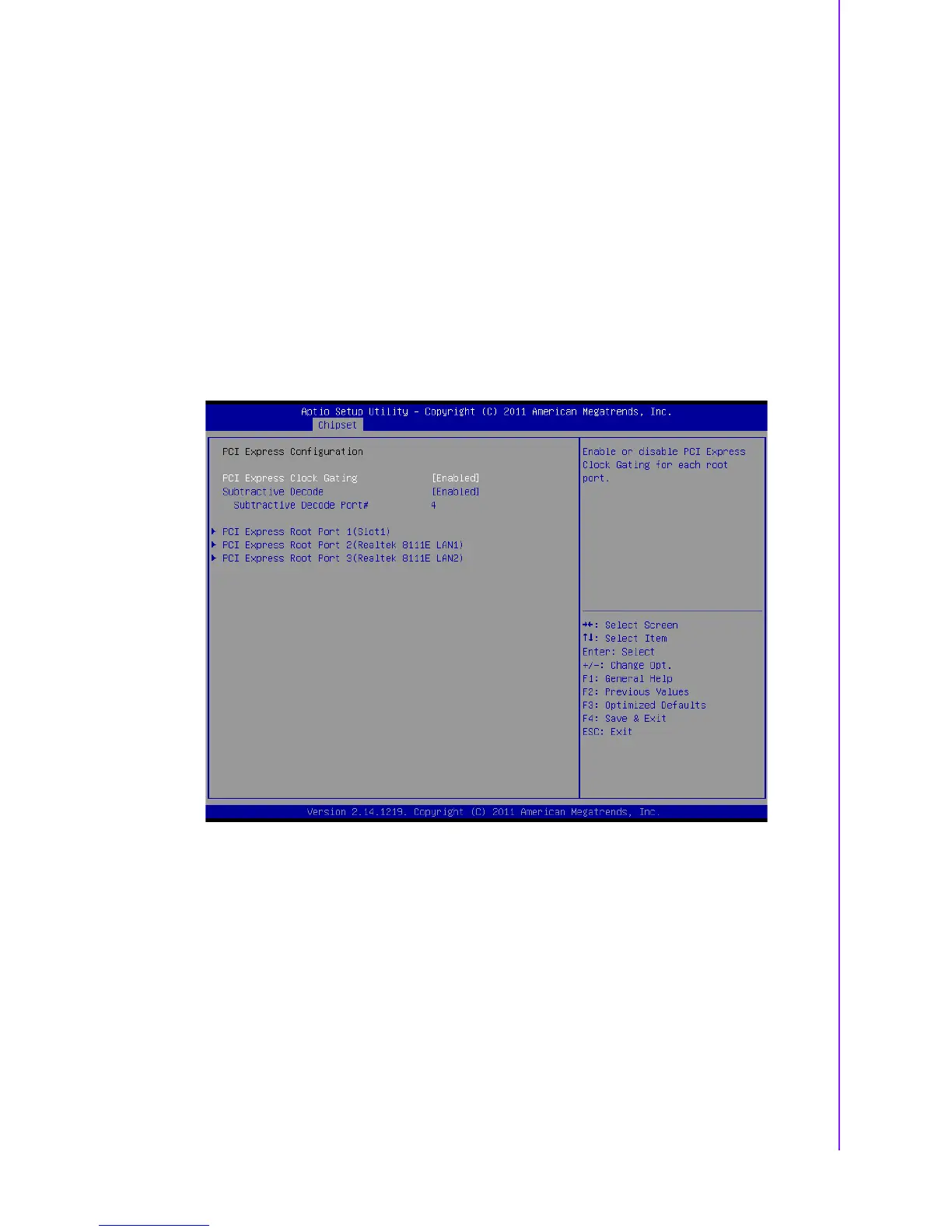

3.4.1.1 PCI Express Configuration
 PCI Express Clock Gating
Enable or disable PCI express clock gating.
 Subtractive Decode
Enable or disable Subtractive decode.
