55 AIMB-501 User Manual
Chapter 3 BIOS Operation

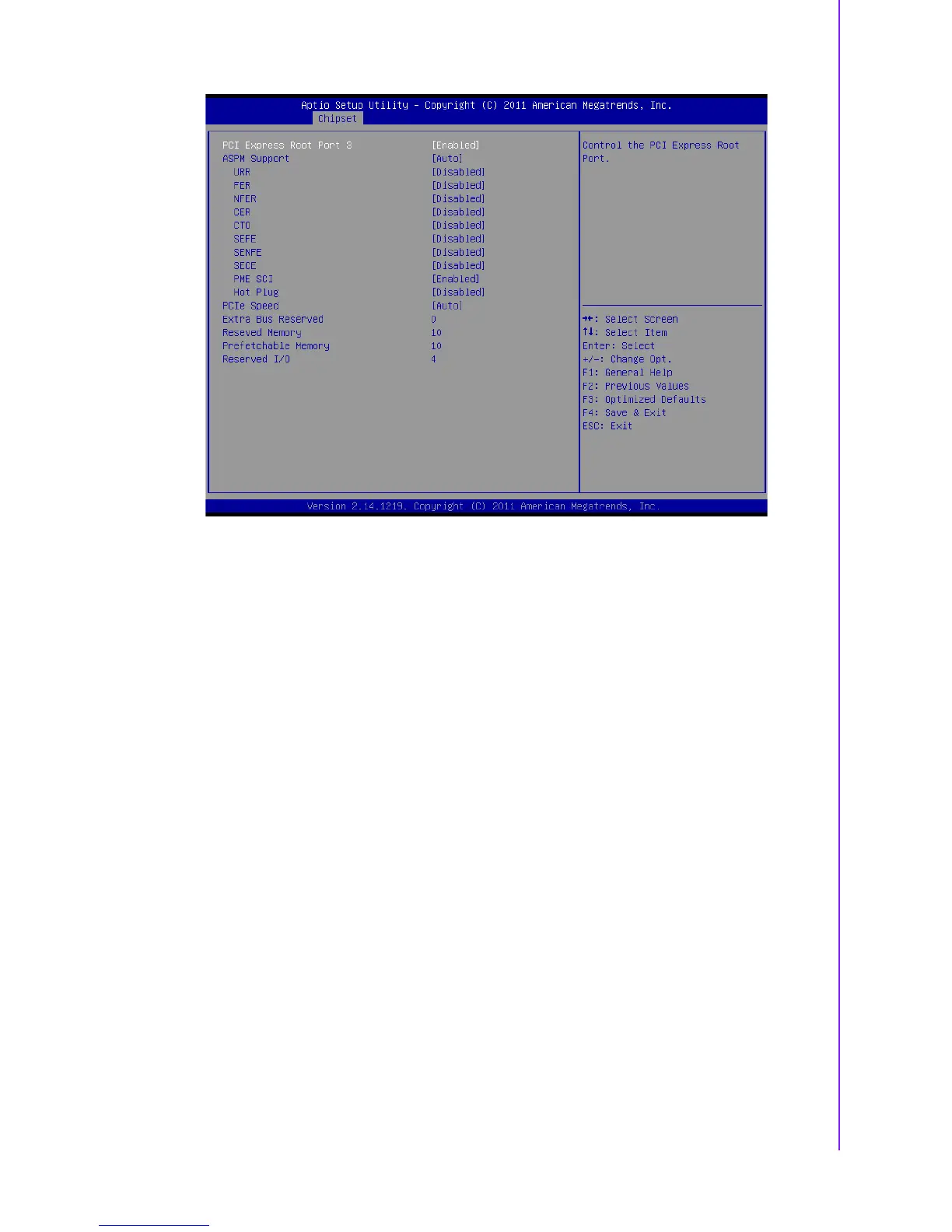

This pages allow users to adjust parameter for PCI express root port 1&2&3.
 ASPM Support
Allow user to set the ASPM Level. Force L0s - Force all links to L0s State.
AUTO - BIOS auto configure. DISABLE - Disables ASPM.
 URR
Enable or disable PCI Express Unsupported Request Reporting.
 FER
Enable or disable PCI Express Device Fatal Error Reporting.
 NFER
Enable or disable PCI Express Device Non-Fatal Error Reporting.
 CER
Enable or disable PCI Express Device Correctable Error Reporting.
 CTO
Enable or disable PCI Express Completion Timer TO.
 SEFE
Enable or disable Root PCI Express System Error on Fatal Error.
 SENFE
Enable or disable Root PCI Express System Error on Non-Fatal Error.
 SECE
Enable or disable Root PCI Express System Error on Correctable Error.
 PME SCI
Enable or disable PCI Express PME SCI.
 Hot Plug
Enable or disable PCI Express Hot Plug.
 PCIe Speed
Select PCI Express port speed.
 Extra Bus Reserved
