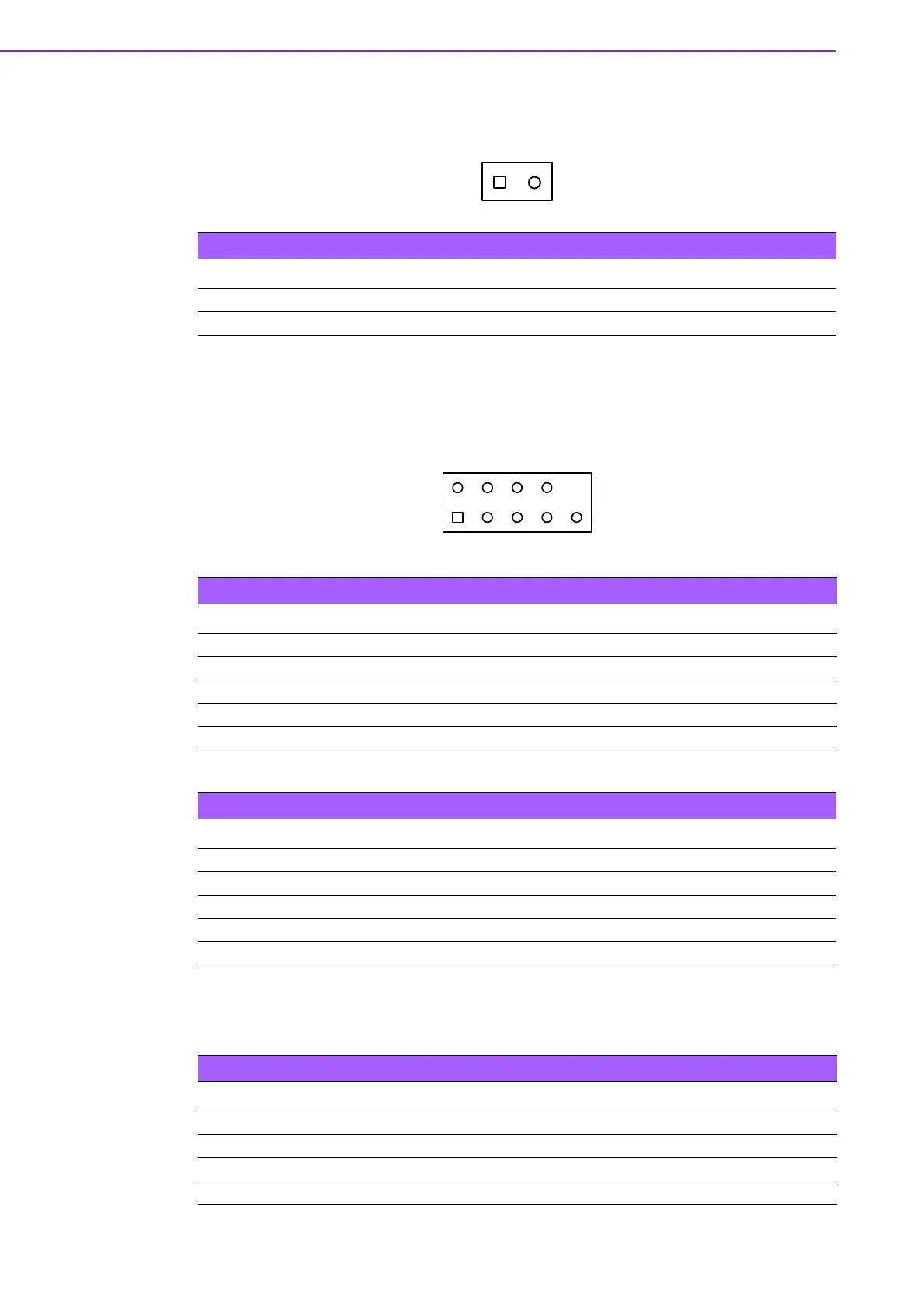

ASMB-785 User Manual 110
B.16 Case Open Connector (JCASE1)
B.17 Front Panel LAN LED Connector
(LAN_LED1,LAN_LED2)
B.18 SPI_CN1: SPI Flash Card Pin Connector
Table B.17: Case Open Connector (JCASE1)
Pin Signal
1 CASEOP
2GND
1 2
Table B.18: LAN LED Connector (LANLED1)
Pin Signal Pin Signal
1 LAN1_LED0_ACT 2 LAN2_LED1_ACT
3 VCC3_LAN1LED 4 VCC3_LAN2LED
5 LAN1_LED1_1000M 6 LAN2_LED2_1000
7 LAN1_LED2_100M 8 LAN2_LED0_100
9 VCC3 10 N/C
Table B.19: LAN LED Connector (LANLED2)
Pin Signal Pin Signal
1 LAN3_LED1_ACT 2 LAN4_LED1_ACT
3 VCC3_LAN3LED 4 VCC3_LAN4LED
5 LAN3_LED2_1000M 6 LAN4_LED2_1000M
7 LAN3_LED0_100M 8 LAN4_LED0_100M
9VCC3 10 NC
2
1
8
9
Table B.20: SPI_CN1:SPI Flash Card Pin Connector
Pin Signal Pin Signal
1 +3VSB 2 GND
3 SPI_CS# 4 SPI_CLK
5 SPI_MISO 6 SPI_MOSI
7N/A 8NC
