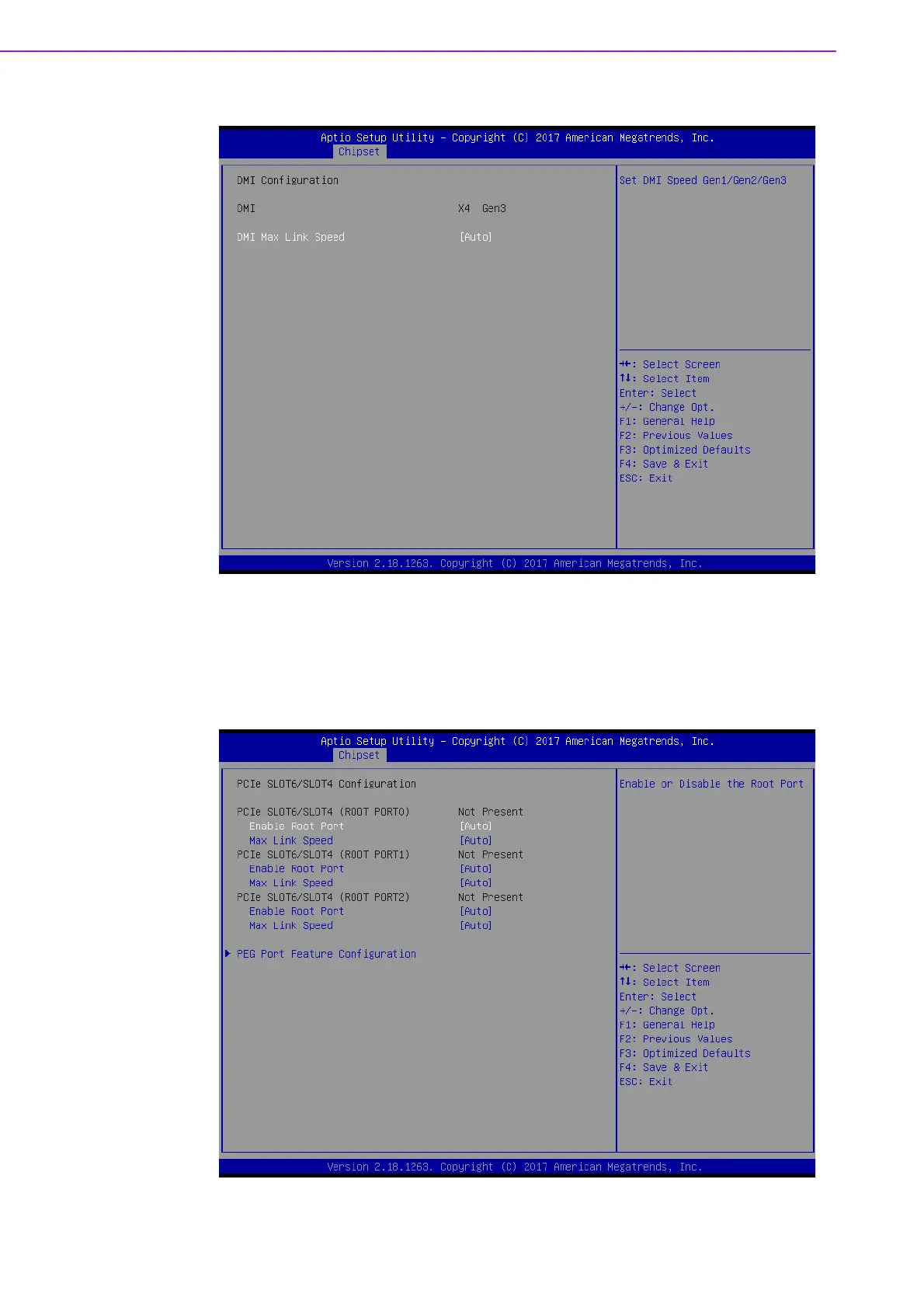

ASMB-785 User Manual 66
3.2.3.3 DMI Configuration
Figure 3.37 DMI Configuration
DMI Max Link Speed
Set DMI speed Auto/Gen1/Gen2/Gen3.
3.2.3.4 PCIe SLOT6/SLOT4 Configuration
Figure 3.38 NB PCIe Configuration
