7 ASMB-785 User Manual
Chapter 1 Hardware Configuration
1.5.1 Onboard LAN LED Definition
1.5.2 Onboard LEDs (LED2, LED3, LED4)
The ASMB-785 has onboard power LED for 5V Power, 5V Standby and 3.3V AUX.

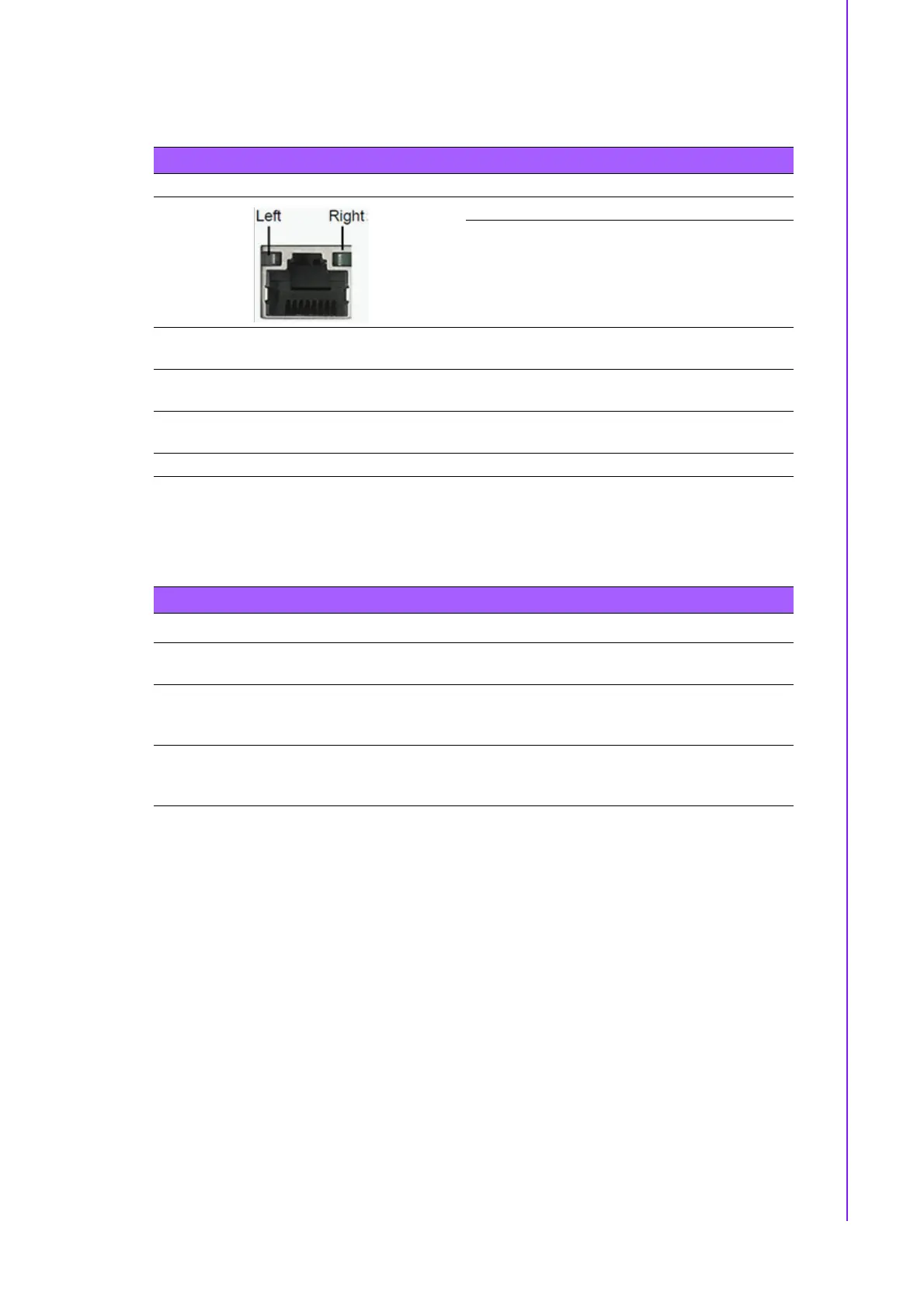

Table 1.3: Onboard LAN LED Definition
10/100/1000 Mbps LAN Link/Activity LED Scheme
LAN1 ~ LAN4
Left LED Right LED
10 Mbps
Link
Active
Off
Off
Green
Blinking green
100 Mbps
Link
Active
Amber
Amber
Green
Blinking green
1000 Mbps
Link
Active
Green
Green
Green
Blinking green
No Link Off Off
Table 1.4: Onboard LED (LED2, LED3, LED4)
LED Description LED Definition
5V_LED2 Power on LED
Off:
Power off
On (Green):
System is On
5VSB_LED3 Standby LED
Off:
No input AC Power
On (Green):
System is ON, in sleep mode,
or in soft-off mode
3V3DSW_LE
D4
Deep sleep well LED
Off: No input AC
Power, Deep sleep
mode enable
On (Green): System is ON, in
sleep mode, in soft-off mode,
or deep sleep mode disable
