Chapter 2 Connecting Peripherals
2.18 SPI Flash Connector(SPI_CN1)

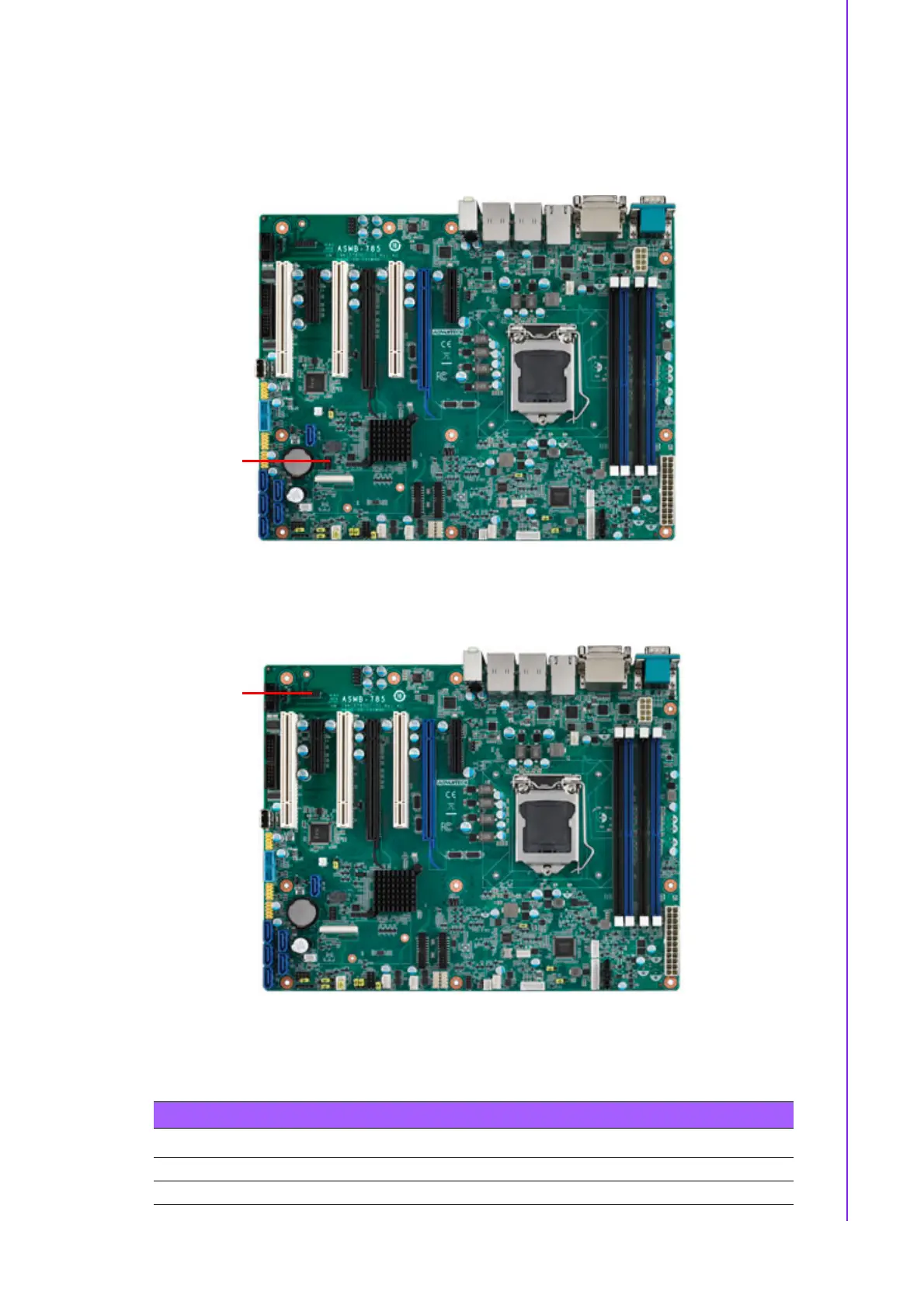

SPI flash card pin header can be connected to BIOS-flashing tools to flash the BIOS,
during which ASMB-785 cannot be powered on
2.19 Low Pin Count Connector (LPC1)
LPC connector on ASMB-785 is reserved for Advantech TPM and COM 232/485
modules. The slot-2 & 3 can't be used when Advantech’s COM module is installed.
Table 2.6: Advantech LPC Module List
Advantech P/N Description
PCA-TPM-00A1E TPM Module
PCA-COM232-00A1E 4 ports RS-232 module connect to LPC connector
