ASMB-785 User Manual
8
1.6

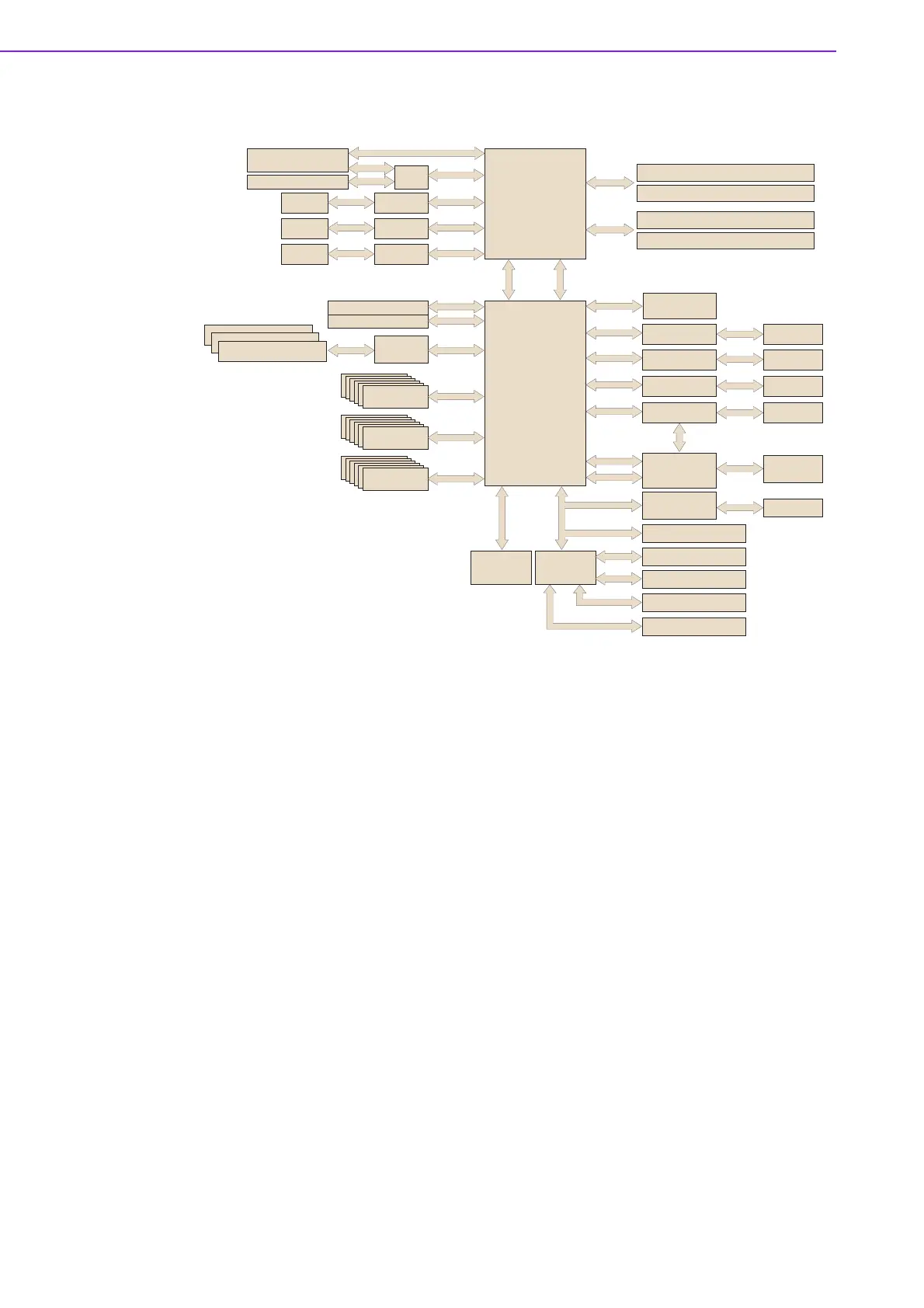

ASMB-785 Block Diagram
Figure 1.3 ASMB-785 Block Diagram
PCIe Gen3 x8
PCIe Gen3 x8
Channel A
Display Port 1
TMDS
PCIe Gen3 x8
PCIe Gen3 x8
Slot 6
Slot 4
Slot 2
PCIe x16 Slot
Switch
(ECC) DDR4 2400/2133/1866/1600/1333
(ECC) DDR4 2400/2133/1866/1600/1333
(ECC) DDR4 2400/2133/1866/1600/1333
(ECC) DDR4 2400/2133/1866/1600/1333
Channel B
Level
Shifter
DVI-D
Display Port 2
TMDS
Level
Shifter
DVI-D
Display Port 3
PCIe Gen3 x4
HD Audio
PCIe Gen3 x4
PCIe Gen3 x1
SAT
A3
6 Gb/s
PCI BUS
AUDIO
DMI Gen3 x4
RGB
Converter
PCIe x4 Slot
Audio Codec
Realtek ALC 892
PCIe Gen1 x1
MDI
GbE LAN1: I219
RJ45
10/100/1G
PCIe Gen2 x1
MDI
GbE LAN3: I210
RJ45
10/100/1G
PCIe Gen2 x1
MDI
GbE LAN4: I210
RJ45
10/100/1G
PCIe Gen2 x1
USB 2.0
PCIe Gen2 x1
LPC BUS
NC-SI
MDI
GbE LAN2: I210
BMC
Connector
(Optional)
Super I/O
Nuvoton
NCT6776D
RJ45
10/100/1G
SM BUS
HWM
W83782D
LPC to UART
F81216AD
LPC BUS
LPC Connector
PS/2 KB, MS Header
2 x RS-232
8 bit GPIO Pin Header
LPT Connector
4 x RS-232
Slot 7
Slot 5
128M-bit
Slot 3
Slot 1
PCIe x4 Slot
PCI Slot
6 x SA
T
A3
(RAID 0,1,5,10)
USB 2.0
7 x USB2.0
(1 type A)
(6 on board)
USB 3.0
SPI BUS
LPC BUS
6 x USB3.0
(2 on board / 4 rear)
ITE
IT8892
SPI BIOS
VGA
D-Sub
PCIe x16 Slot
Intel E3-1200 v5/v6 and
6th/7th Generation
Core i3/i5/i7 series
Processors
Intel C236 PCH
21
23
Table of Contents
Default Chapter
4
Declaration of Conformity
4
Table of Contents
9
Chapter 1 Hardware Configuration
15
Introduction
16
Features
16
Specifications
17
Cpu
17
Pch
17
Memory
17
Input/Output
17
Graphics
17
Ethernet LAN
18
Industrial Features
18
Mechanical and Environmental Specifications
18
Jumpers and Connectors
18
Table 1.2: Connector List
19
Board Layout: Jumper and Connector Locations
20
Onboard LAN LED Definition
21
Onboard Leds (LED2, LED3, LED4)
21
ASMB-785 Block Diagram
22
Safety Precautions
23
Jumper Settings
23
How to Set Jumpers
23
Table 1.5: JCMOS1
24
Table 1.8: USB Power Switch (JUSB1/JUSB2)
25
Table 1.10: ATX/AT Mode Selector (PSON1)
26
System Memory
27
Memory Installation Procedures
27
Table 1.13: PCI Clock Selection (JPCICLK1)
27
PCI Bus Routing Table
28
Chapter 2 Connecting Peripherals
29
Introduction
30
USB Ports (LAN1_USB1_2, LAN2_USB5_6, USB3_4, USB7~13)
30
USB Power Switch (JUSB1/JUSB2)
31
VGA and DVI1, DVI2 Connector
32
Serial Ports (COM1 ~ COM6)
33
External Keyboard & Mouse (KBMS1)
34
CPU Fan Connector (CPUFAN0)
35
System FAN Connector (SYSFAN0 ~ SYSFAN3)
36
Front Panel Connectors (JFP1/2/3)
37
Power LED (JFP3 Pins 1, 3)
38
External Speaker (JFP2 Pins 1, 4, 7, 10)
38
HDD LED Connector (JFP1 Pins 2 & 5)
38
SNMP Smbus Connector (JFP2 Pins 8 & 11)
38
ATX Soft Power Switch (JFP1 Pins 3 & 6)
38
Reset Connector (JFP1 Pins 9 & 12)
39
8-Pin Alarm Board Connector (VOLT1)
39
Case Open Connector (JCASE1)
40
Front Panel LAN Indicator Connector (LANLED1, LANLED2)
41
Serial ATA Interface (SATA0~5)
42
PCI Slots (PCI_SLOT1, PCI_SLOT3, PCI_SLOT5)
43
Pcie X16 Expansion Slot (PCIEX16_SLOT4 and PCIEX16_SLOT6)
44
Jpeg2
44
Pcie X4 Expansion Slot (PCIEX4_SLOT2, PCIEX4_SLOT7)
45
Auxiliary 8-Pin Power Connector (ATX12V1)
46
SPI Flash Connector(SPI_CN1)
47
Low Pin Count Connector (LPC1)
47
Parallel Port (LPT1)
48
PCI Clock Selection (JPCICLK1)
48
Table 2.7: PCI Clock Selection (JPCICLK1)
49
BIOS Operation
51
Chapter 3 BIOS Operation
51
Introduction
52
Entering BIOS Setup
53
Main Menu
53
Advanced BIOS Features Setup
54
Figure 3.4 CPU Configuration
55
Figure 3.5 CPU Power Management Control
56
Figure 3.6 Intel ME FW Configuration Information
57
Figure 3.7 ASF Support
58
Figure 3.9 PET Progress
59
Figure 3.11Mebx Resolution Settings
60
Figure 3.13TPM Settings
61
Figure 3.14 ACPI Settings
62
Figure 3.15SMART Setting
63
Figure 3.17COM1 Configuration
64
Figure 3.19Parallel Port Configuration
65
Figure 3.20PC Health Status
66
Figure 3.21COM3/4/5/6 Configuration
67
Figure 3.23COM4 Configuration
68
Figure 3.25COM6 Configuration
69
Figure 3.26PCA-COM232 Configuration
70
Figure 3.27Serial Port 1 Configuration
71
Figure 3.28S5 RTC Wake Settings
72
Figure 3.29Serial Port Console Redirection
73
Figure 3.30Legacy Console Redirection Settings
74
Figure 3.31PCI Subsystem Settings Screen
75
Figure 3.32CSM Configuration
76
Figure 3.33USB Configuration
77
Chipset
78
Figure 3.36Graphics Configuration
79
Figure 3.37DMI Configuration
80
Figure 3.39PEG Port Feature Configuration
81
Figure 3.40Memory Configuration
82
Figure 3.41PCH-IO Configuration
83
Figure 3.42PCI Express Configuration
84
Figure 3.43PCI Express Slot 2 Configuration
85
Figure 3.44PCI Express Slot 7 Configuration
86
Figure 3.45SATA Configuration
87
Figure 3.46USB Configuration
88
Security
89
Boot
90
Save & Exit
91
Chapter 4 Chipset Software Installation Utility
93
Before You Begin
94
Introduction
94
Windows os Driver Setup
94
Chapter 5 VGA Setup
97
Introduction
98
Windows os Driver Setup
98
Chapter 6 LAN Configuration
99
Introduction
100
Features
100
Installation
100
Windows os Driver Setup (LAN)
100
Chapter 7 Intel ME
101
Introduction
102
Installation
102
Chapter 8 Intel USB 3.0
103
Introduction
104
Installation
104
Chapter 9 SATA RAID Setup
105
Introduction
106
SATA RAID Driver and Utility Setup
106
Chapter 10 HD Audio
107
Introduction
108
Installation
108
Appendix A Programming the Watchdog Timer
109
Watchdog Timer Overview
110
Programming the Watchdog Timer
110
Example Programs
112
Table A.1: Watchdog Timer Registers
112
Appendix B I/O Pin Assignments
117
USB2.0 Header (USB7~12)
118
USB3.0 Header (USB3_4)
118
VGA Connector (VGA)
119
Interface (COM2)
119
External Keyboard and Mouse Connector (KBMS1)
120
System Fan Power Connector (SYSFAN0~3)
120
Power LED and Keyboard Lock (JFP3)
120
External Speaker Connector (JFP2)
121
HDD LED Connector (JFP2)
121
SNMP Smbus Connector (JFP2)
121
ATX Soft Power Switch (JFP1)
122
Reset Connector (JFP1)
122
USB/LAN Ports (LAN1_USB1_2 and LAN2_USB5_6)
122
Front Panel Audio Connector (FPAUD1)
123
8-Pin Alarm Board Connector (VOLT1)
123
Case Open Connector (JCASE1)
124
Front Panel LAN LED Connector (LAN_LED1,LAN_LED2)
124
SPI_CN1: SPI Flash Card Pin Connector
124
GPIO Connector (GPIO1)
125
B.22 Interrupt Assignments
126
B.24 Parallel Port (LPT1)
127
