Chapter 3 BIOS Operation
3.2.3.6 PCH-IO Configuration

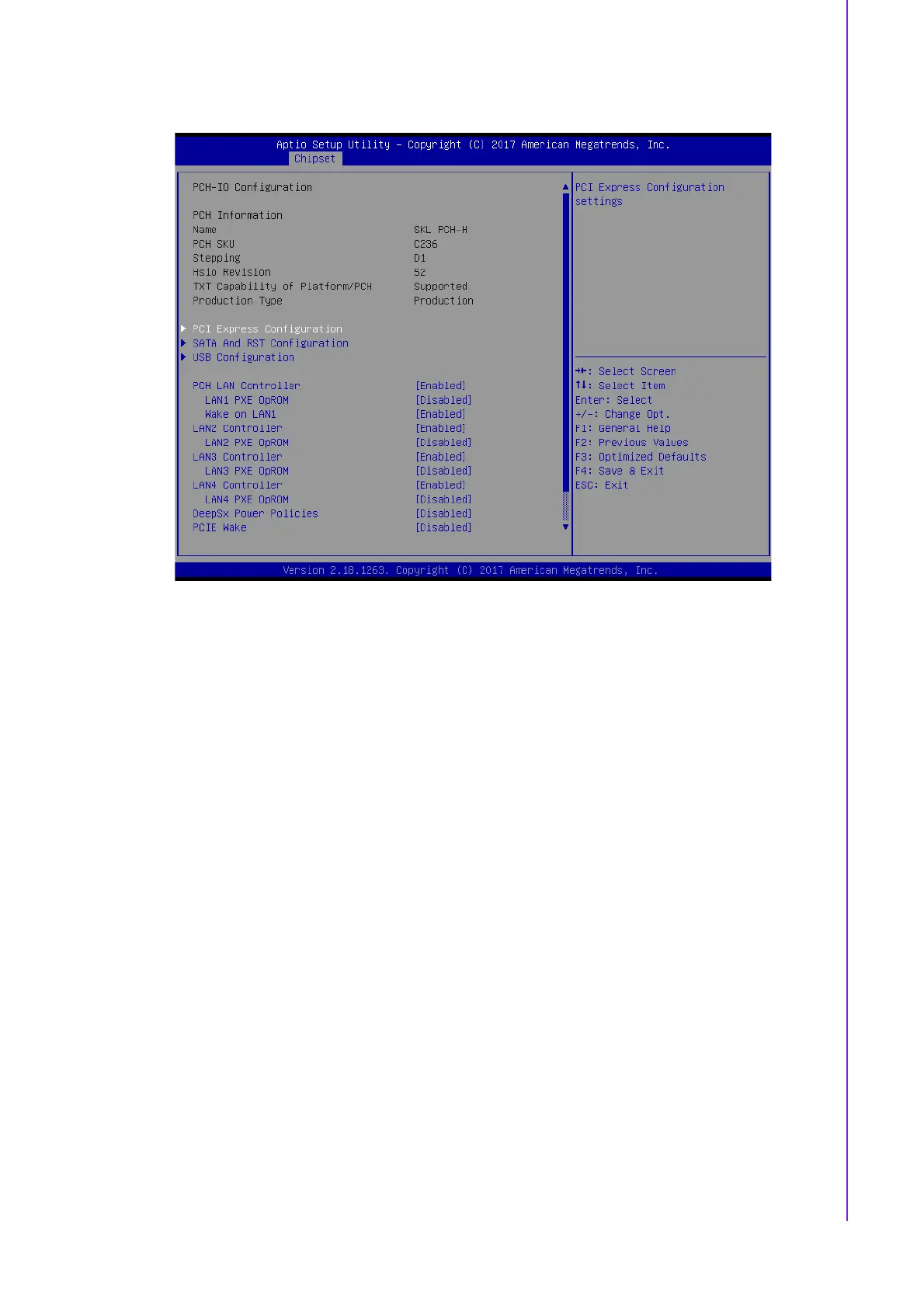

Figure 3.41 PCH-IO Configuration
 PCH LAN Controller
Enable/Disable onboard LAN1
 LAN1 PXE OpROM
Enable/Disable boot option for LAN1 controller
 Wake on LAN1
Enable/Disable integrated LAN to wake the system
 LAN2 Controller
Enable/Disable onboard LAN2
 LAN2 PXE OpROM
Enable/Disable boot option for LAN2 controller
 LAN3 Controller
Enable/Disable onboard LAN3
 LAN3 PXE OpROM
Enable/Disable boot option for LAN3 controller
 LAN4 Controller
Enable/Disable onboard LAN4
 LAN4 PXE OpROM
Enable/Disable boot option for LAN4 controller
 Deep Sx Power Policies
Enable or disable Deep Sx feature. When Deep Sx is enabled, most power
including 5VSB will be off during Deep Sx for energy saving.
 PCIE Wake
To enable or disable PCIE to wake the system from S5.
 Serial IRQ Mode
