15 EPC-P30X6 User Manual/ 用户手册
Chapter 2 Connecting 内部连接 內部連接

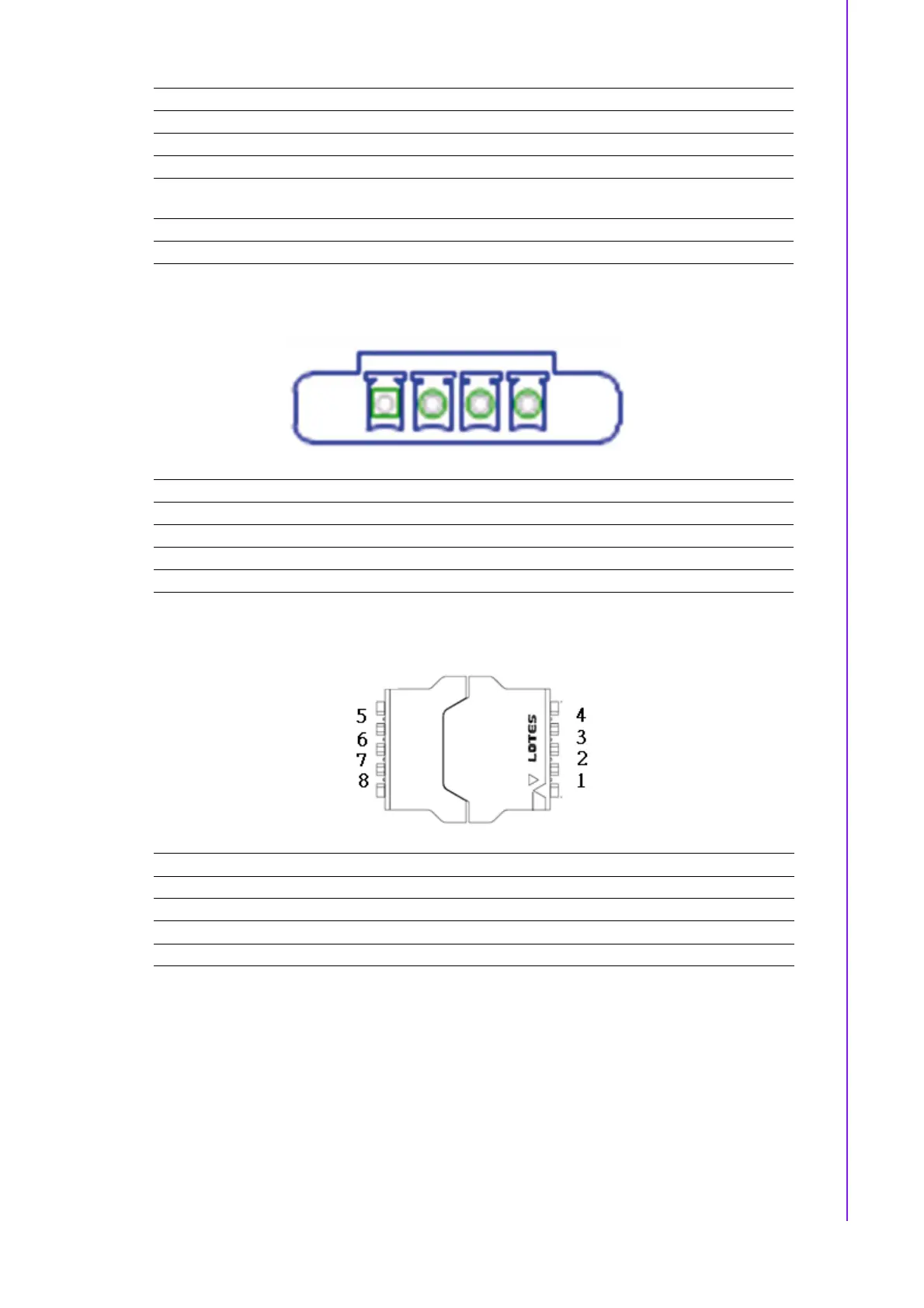

2.3.1 DCIN power connector (DCIN1)
2.3.2 SPI BIOS flash socket (SPI1)
47 HD Audio interface (Digital) SPDIF1
48 Front panel audio header FPAUD1
49 Mini-PCIE/MSATA Connector MINIPCIE2
50 Mini-PCIE/MSATA Connector MINIPCIE1
51
USB Power selection for LAN1_USB12 / LAN2_USB34
/ LAN3_USB56
JUSBPWR1
52 Display header DP2
53 Display header DP1
Pin Signal
1GND
2 +VDCIN_ADP_IN
3 +VDCIN_ADP_IN
4GND
Pin Signal Pin Signal
1CS# 5MOSI
2MISO 6SCLK
3 WP# / IO2 7 HOLD# / IO3
4 GND 8 +V3.3_SPI
1 4
