Advantech EPC-P30X6 Series User Manual

EPC-P30X6 User Manual/ 用户手册 28

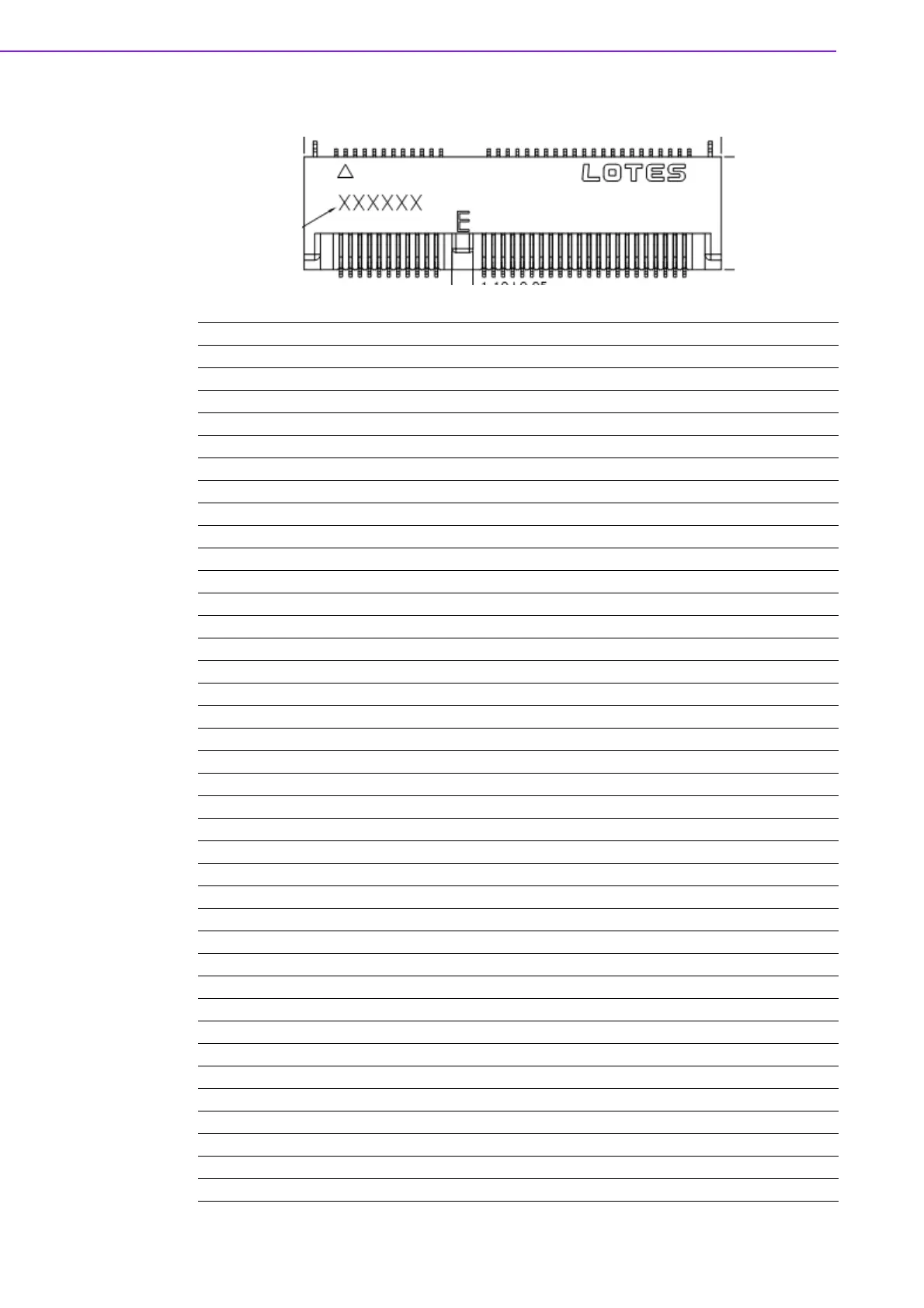

2.3.24 M.2 E Key connector (M2E1)
Pin Signal Pin Signal
1GND 2 3.3V
3 USB_D+ 4 3.3V
5 USB_D- 6 LED1# (I)(OD)
7 GND 8 PCM_CLK/I2S SCK (O/I)(0/1.8V)
9 CNV_WR_D1- 10 PCM_SYNC/I2S WS (I/O)(0/1.8V)
11 CNV_WR_D1+ 12 PCM_IN/I2S SD_IN (I)(0/1.8V)
13 GND 14 PCM_OUT/I2S SD_OUT (O)(0/1.8V)
15 CNV_WR_D0- 16 LED2# (I)(OD)
17 CNV_WR_D0+ 18 GND
19 GND 20 UART WAKE# (I)(0/3.3V)
21 CNV_WR_CLK- 22 UART RXD (I)(0/1.8V)
23 CNV_WR_CLK+ 24 Connector Key
25 Connector Key 26 Connector Key
27 Connector Key 28 Connector Key
29 Connector Key 30 Connector Key
31 Connector Key 32 CNV_RGI_DT
33 GND 34 CNV_RGI_RSP
35 PETp0 36 CNV_BRI_DT
37 PETn0 38 PCH_CLINK_RST#
39 GND 40 PCH_CLINK_DATA
41 PERp0 42 PCH_CLINK_CLK
43 PERn0 44 CNV_GNSS_BLANKING
45 GND 46 CNV_MFUART2_TXD
47 REFCLKp0 48 CNV_MFUART2_RXD
49 REFCLKn0 50 SUSCLK(32kHz) (O)(0/3.3V)
51 GND 52 PERST0# (O)(0/3.3V)
53 CLKREQ0# (I/O)(0/3.3V) 54 W_DISABLE2# (O)(0/3.3V)
55 PEWAKE0# (I/O)(0/3.3V) 56 W_DISABLE1# (O)(0/3.3V)
57 GND 58 RESERVED
59 RESERVED/PETp1 60 RESERVED
61 RESERVED/PETn1 62 RESERVED
63 GND 64 M.2_38P4M_REFCLK
65 RESERVED/PERp1 66 RESERVED
67 RESERVED/PERn1 68 RESERVED
69 GND 70 PCIE_WAKE#
71 RESERVED/REFCLKp1 72 3.3V
73 RESERVED/REFCLKn1 74 3.3V
75 GND
