25 EPC-P30X6 User Manual/ 用户手册
Chapter 2 Connecting 内部连接 內部連接

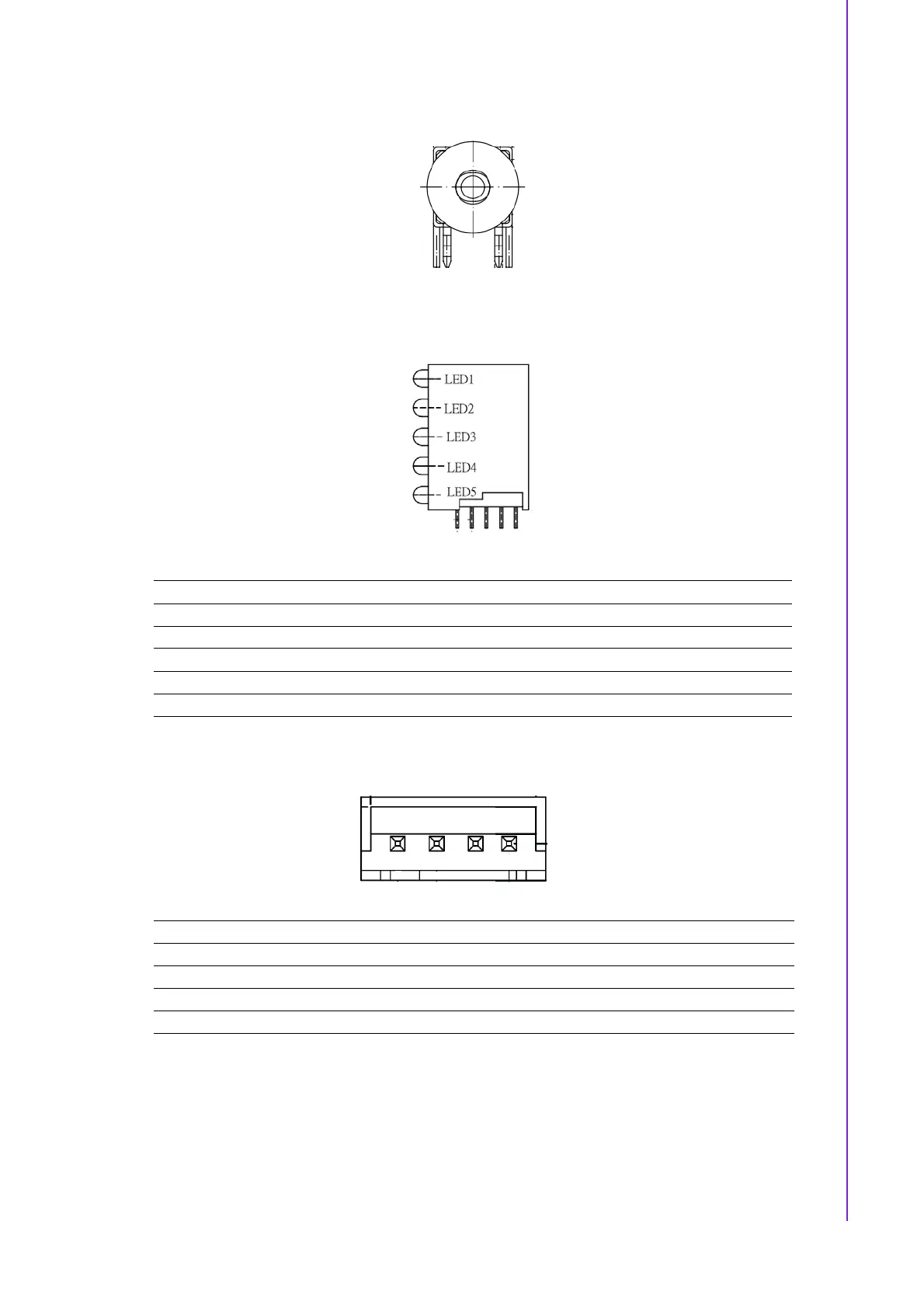

2.3.18 PWRBTN(PWRBTN1)
2.3.19 UART1/2, STAT LED (LED1)
2.3.20 SATA Power Connector (SATA PWR3/PWR2/PWR1)
LED Signal
1 UART1_SOUT_LED
2 UART1_SIN_LED
3 UART2_SOUT_LED
4 UART2_SIN_LED
5 SATA_PCH_LED#
Pin Signal
1+V5
2GND
3GND
4+V12
4
1 5
1
