Chapter 2 Connecting 内部连接 內部連接

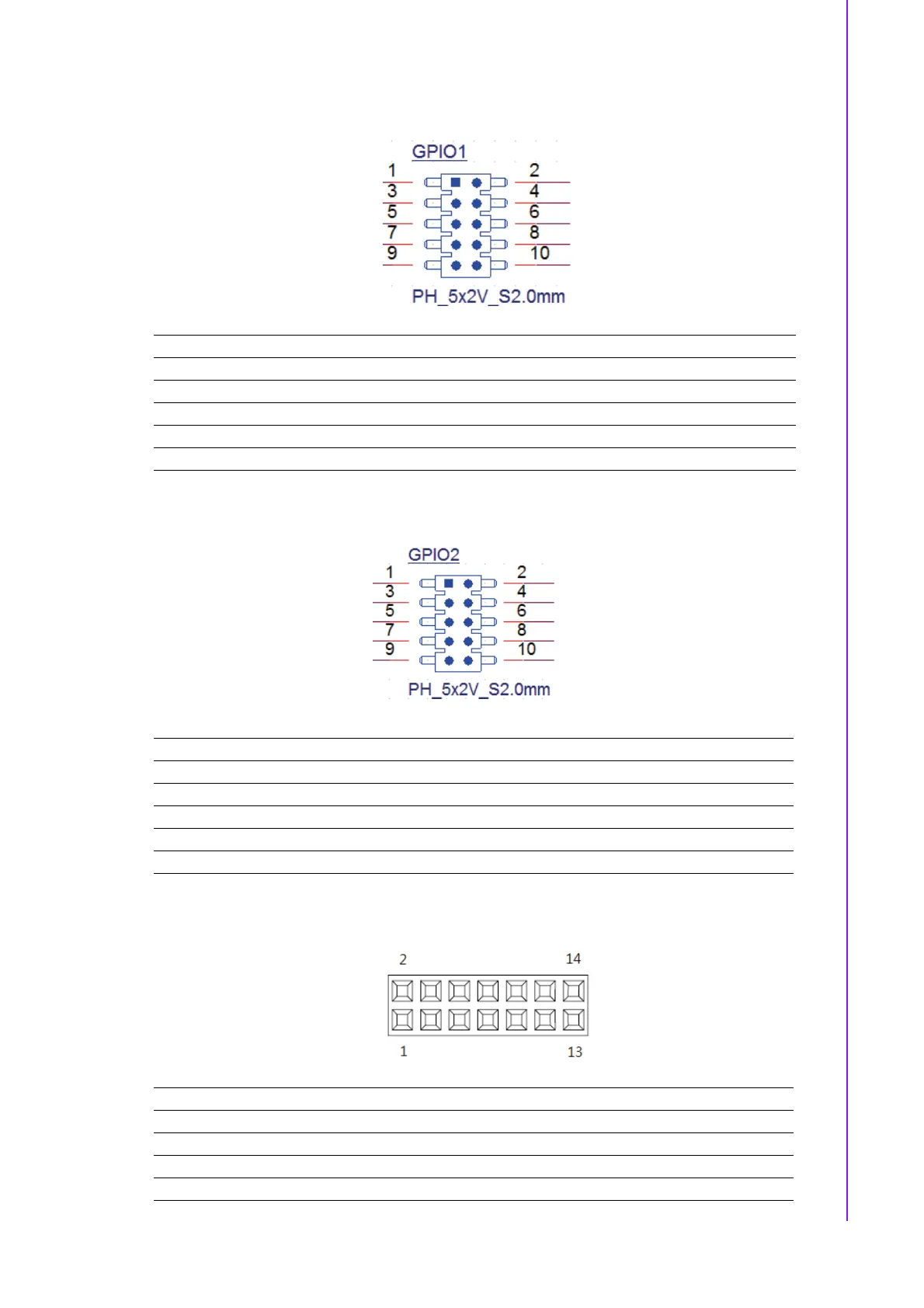

2.3.36 General Purpose I/O Pin Header (GPIO1)
2.3.37 General Purpose I/O Pin Header (GPIO2)
2.3.38 Low pin count interface connector (LPC1)
Pin Signal Pin Signal
1 GPIO0 2 GPIO4
3 GPIO1 4 GPIO5
5 GPIO2 6 GPIO6
7 GPIO3 8 GPIO7
9+V5_DUAL10GND
Pin Signal Pin Signal
1 GPIO8 2 GPIO12
3 GPIO9 4 GPIO13
5 GPIO10 6 GPIO14
7 GPIO11 8 GPIO15
9 +V5_DUAL 10 GND
Pin Signal Pin Signal
1 CLK (24MHz) 2 AD1
3 RESET# 4 AD0
5FRAME# 6 +3.3V
7 AD3 8 GND
