29 EPC-P30X6 User Manual/ 用户手册

Chapter 2 Connecting 内部连接內部連接

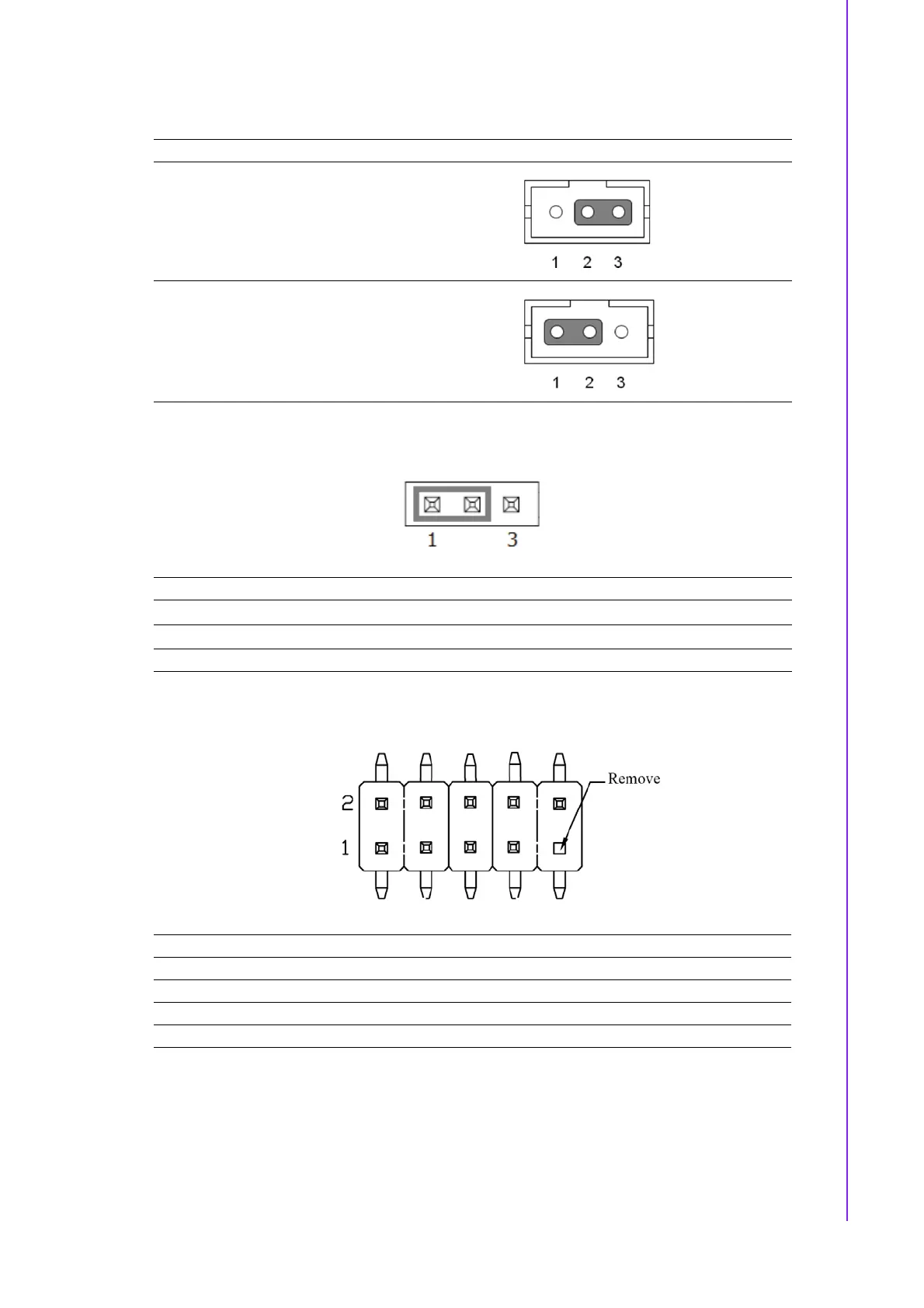

2.3.25 AT / ATX Mode selection (PSON1)

2.3.26 USB Power selection header #2 (JUSBPWR2)

2.3.27 Universal Serial Bus Port 9 /14(USB910)

(*) Depends on JUSBPWR2 Jump Setting.

Function Jumper Setting

ATX Mode (Default)

AT Mode

Pin Signal

1 (Default)

+VDUAL

2 (Default)

Advantech define

3+V5

Pin Signal Pin Signal

1 VBUS (*) 2 VBUS (*)

3 USB_D9- 4 USB_D10-

5 USB_D9+ 6 USB_D10+

7GND 8 GND
