Advantech EPC-P30X6 Series - RJ45 + USB3.0 Stack Connector (LAN2_USB34)

EPC-P30X6 User Manual/ 用户手册 22

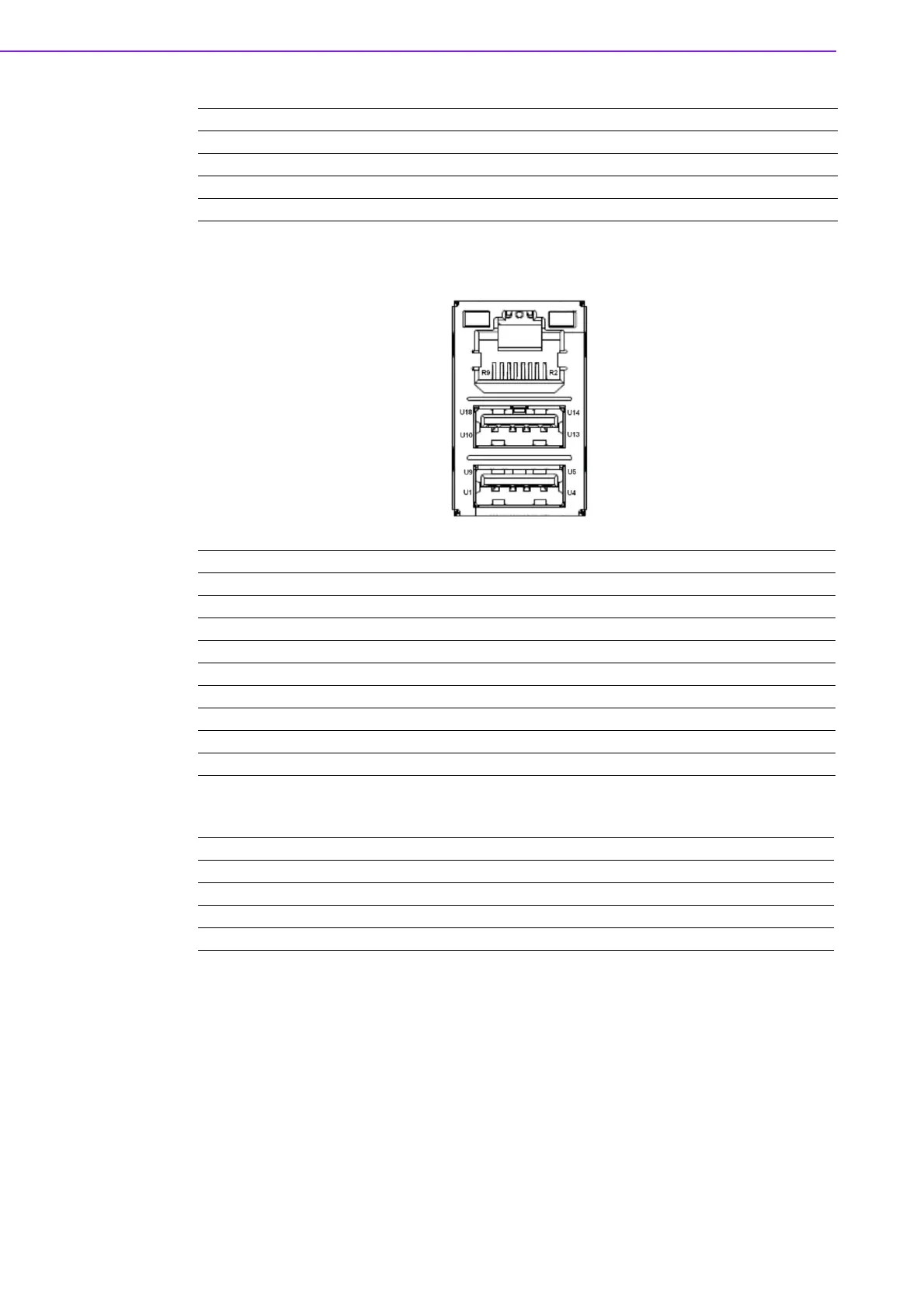

2.3.14 RJ45 + USB3.0 stack connector (LAN2_USB34)
(*) Depends on JUSBPWR1 Jump Setting
Pin Signal Pin Signal
R2 MDI_0+ R6 MDI_2+
R3 MDI_0- R7 MDI_2-
R4 MDI_1+ R8 MDI_3+
R5 MDI_1- R9 MDI_3-
Pin Signal Pin Signal
U1 VBUS (*) U10 VBUS (*)
U2 D-_3 U11 D-_4
U3 D+_3 U12 D+_4
U4 GND U13 GND
U5 RX-_3 U14 RX-_4
U6 RX+_3 U15 RX+_4
U7 GND U16 GND
U8 TX-_3 U17 TX-_4
U9 TX+_3 U18 TX+_4
Pin Signal Pin Signal
R2 MDI_0+ R6 MDI_2+
R3 MDI_0- R7 MDI_2-
R4 MDI_1+ R8 MDI_3+
R5 MDI_1- R9 MDI_3-
