Advantech EPC-P30X6 Series - Display Header(DP1;DP2); Jumper Setting List; CMOS Clear (JCOMS1)

37 EPC-P30X6 User Manual/ 用户手册
Chapter 2 Connecting 内部连接 內部連接

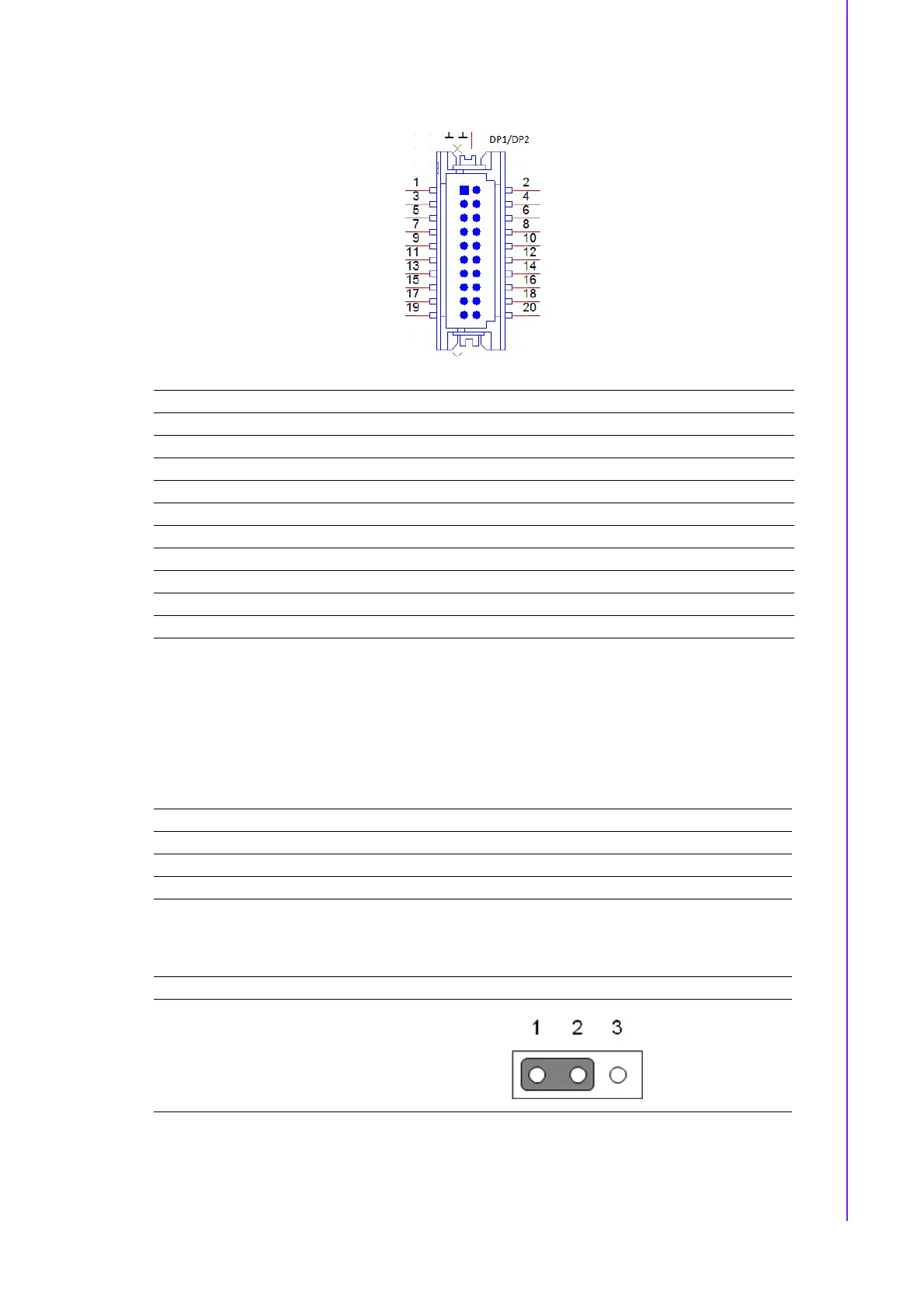

2.3.43 Display header(DP1/DP2)
2.4 Jumper Setting List
2.4.1 CMOS clear (JCOMS1)
Pin Signal Pin Signal
1 GND 2 GND
3 DDPC_TX0-_B 4 DDPC_TX3-_B
5 DDPC_TX0+_B 6 DDPC_TX3+_B
7GND 8DP1_CONFIG1
9 DDPC_TX1-_B 10 DP1_CONFIG2
11 DDPC_TX1+_B 12 DDIC_CPU_AUXN_CN
13 GND 14 DDIC_CPU_AUXP_CN
15 DDPC_TX2-_B 16 GND
17 DDPC_TX2+_B 18 DDPC_HPD_Q
19 +VCC_DP1 20 +VCC_DP1
Description Part Reference
1 RTC / CMOS clear JCOMS1
2 Watchdog timer output and OBS beep JIR1+JOBS1
3 Case open header JCASE1
Function Jumper Setting
Keep CMOS Data (Default)
