23 EPC-P30X6 User Manual/ 用户手册

Chapter 2 Connecting 内部连接內部連接

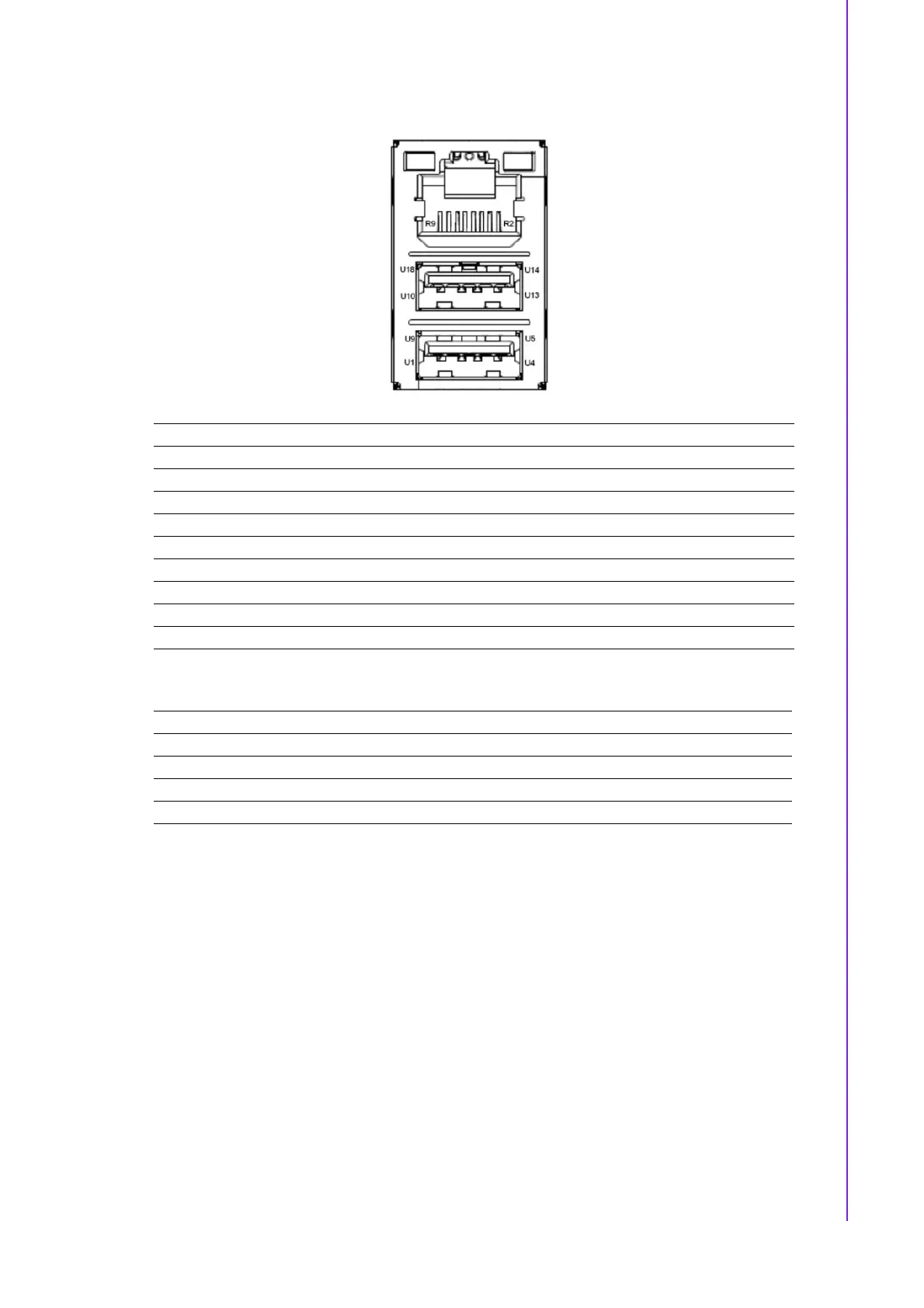

2.3.15 RJ45 + USB3.0 stack connector (LAN1_USB12)

(*) Depends on JUSBPWR1 Jump Setting

Pin Signal Pin Signal

U1 VBUS (*) U10 VBUS (*)

U2 D-_3 U11 D-_4

U3 D+_3 U12 D+_4

U4 GND U13 GND

U5 RX-_3 U14 RX-_4

U6 RX+_3 U15 RX+_4

U7 GND U16 GND

U8 TX-_3 U17 TX-_4

U9 TX+_3 U18 TX+_4

Pin Signal Pin Signal

R2 MDI_0+ R6 MDI_2+

R3 MDI_0- R7 MDI_2-

R4 MDI_1+ R8 MDI_3+

R5 MDI_1- R9 MDI_3-
