Advantech EPC-P30X6 Series User Manual

EPC-P30X6 User Manual/ 用户手册 34

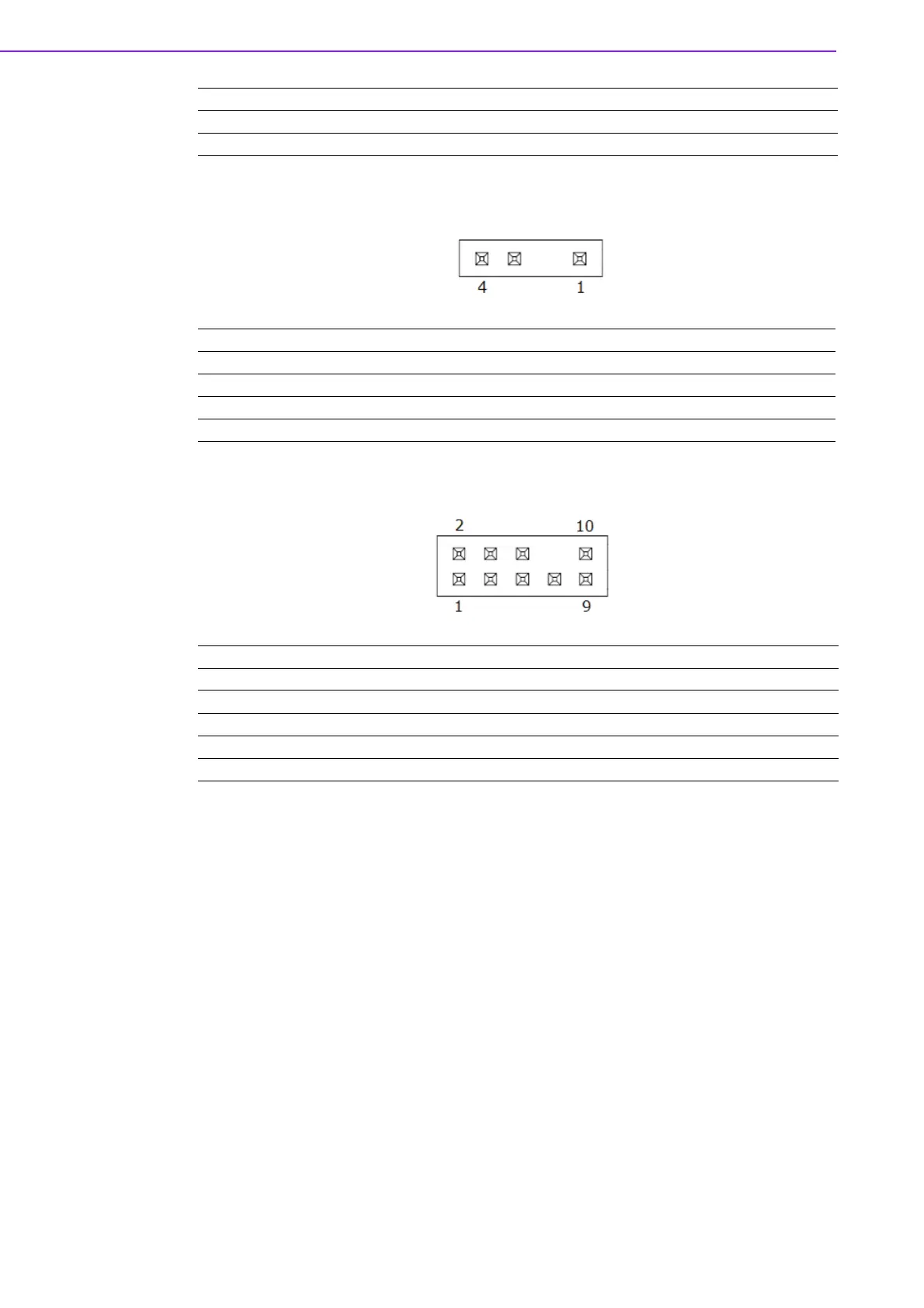

2.3.39 HD Audio interface (SPDIF1)
2.3.40 Front panel audio pin header (FPAUD1)
9 AD2 10 SMB CLK
11 SERIRQ 12 SMB DAT
13 +5VSB 14 +5V
Pin Signal
1+5V
2NA
3 SPDIF OUT
4GND
Pin Signal Pin Signal
1 MIC IN-L 2 GND
3 MIC IN-R 4 FPAUD_DETECT#
5 LINE OUT-R 6 SENSE R1
7SENSE 8 NA
9 LINE OUT-L 10 SENSE R2
