Advantech EPC-P30X6 Series User Manual

EPC-P30X6 User Manual/ 用户手册 36
2.3.42 USB Power selection for USB Power selection for
LAN1_USB12 / LAN2_USB34 / LAN3_USB56 (JUSBPWR1)
13 Reserved 14 Reserved
15 GND 16 Reserved
17 Reserved 18 GND
19 Reserved 20 Reserved
21 DETECT# 22 Reserved
23 RX+ 24 +3.3V
25 RX- 26 GND
27 GND 28 +1.5V
29 GND 30 SMB_CLK
31 TX- 32 SMB_DATA
33 TX+ 34 GND
35 GND 36 Reserved
37 GND 38 Reserved
39 +3.3V 40 GND
41 +3.3V 42 Reserved
43 Reserved 44 Reserved
45 Reserved 46 Reserved
47 Reserved 48 +1.5V
49 Reserved 50 GND
51 MSATA_DETECT# 52 +3.3V

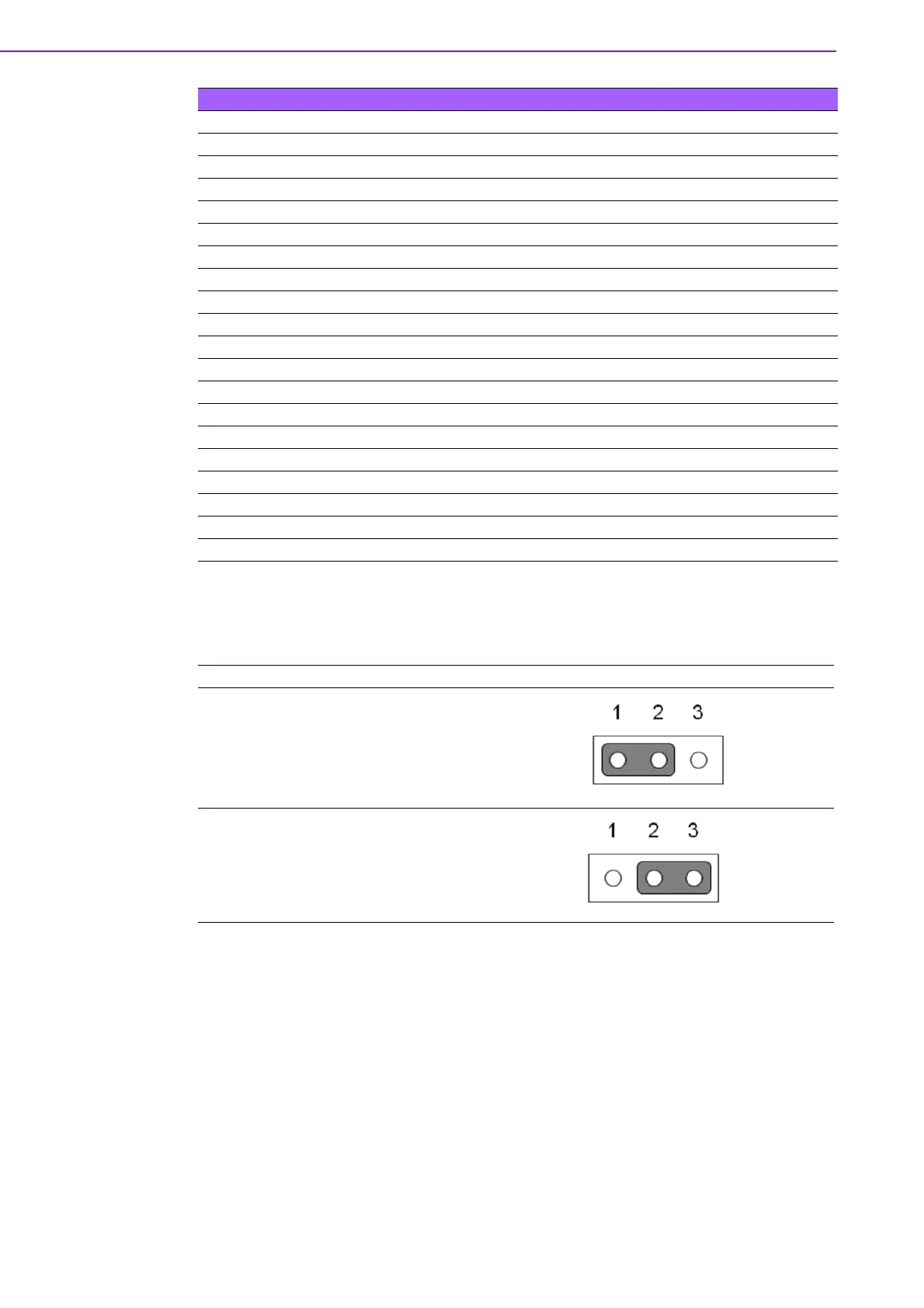

Table 2.2: mSATA
Function Jumper Setting
Set USB VBUS as +5VSB(Default)
Set USB VBUS as +5V
