Advantech EPC-P30X6 Series User Manual

31 EPC-P30X6 User Manual/ 用户手册
Chapter 2 Connecting 内部连接 內部連接

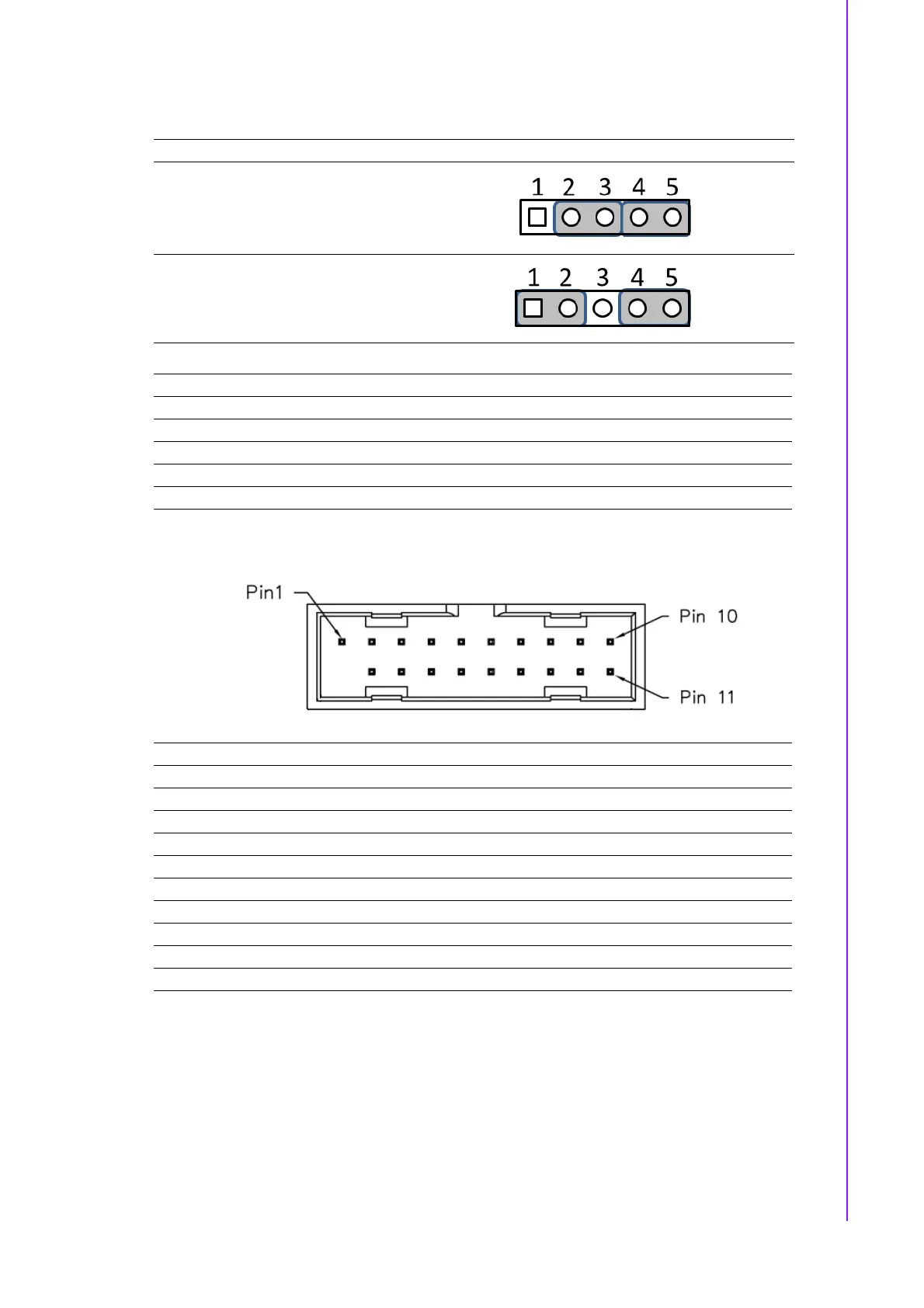

2.3.31 Watchdog Timer Output and OBS Beep (JWDT1+JOBS1)
\
2.3.32 Universal Serial Bus 3.1 Port 7 / 8(USB78)
(*) Depends on JUSBPWR2 Jump Setting.
Function Jumper Setting
Watchdog Timer Output(2-3) (Default)
OBS BEEP(4-5) (Default)
Watchdog Timer Disable (1-2)
OBS BEEP(4-5) (Default)
Pin Signal Pin Definition
1N/C
2 Watch dog reset# output
3 System reset input#
4 SIO Warning Beep output
5 SP1 Buzzer Beep input
Pin Signal Pin Signal
1VBUS (*) 11D+_11
2 RX-_5 12 D-_11
3 RX+_5 13 GND
4GND 14TX+_6
5 TX-_5 15 TX-_6
6 TX+_9 16 GND
7GND 17RX+_6
8 D-_10 18 RX-_6
9 D+_10 19 VBUS (*)
10 NC
