EPC-P30X6 User Manual/ 用户手册 32

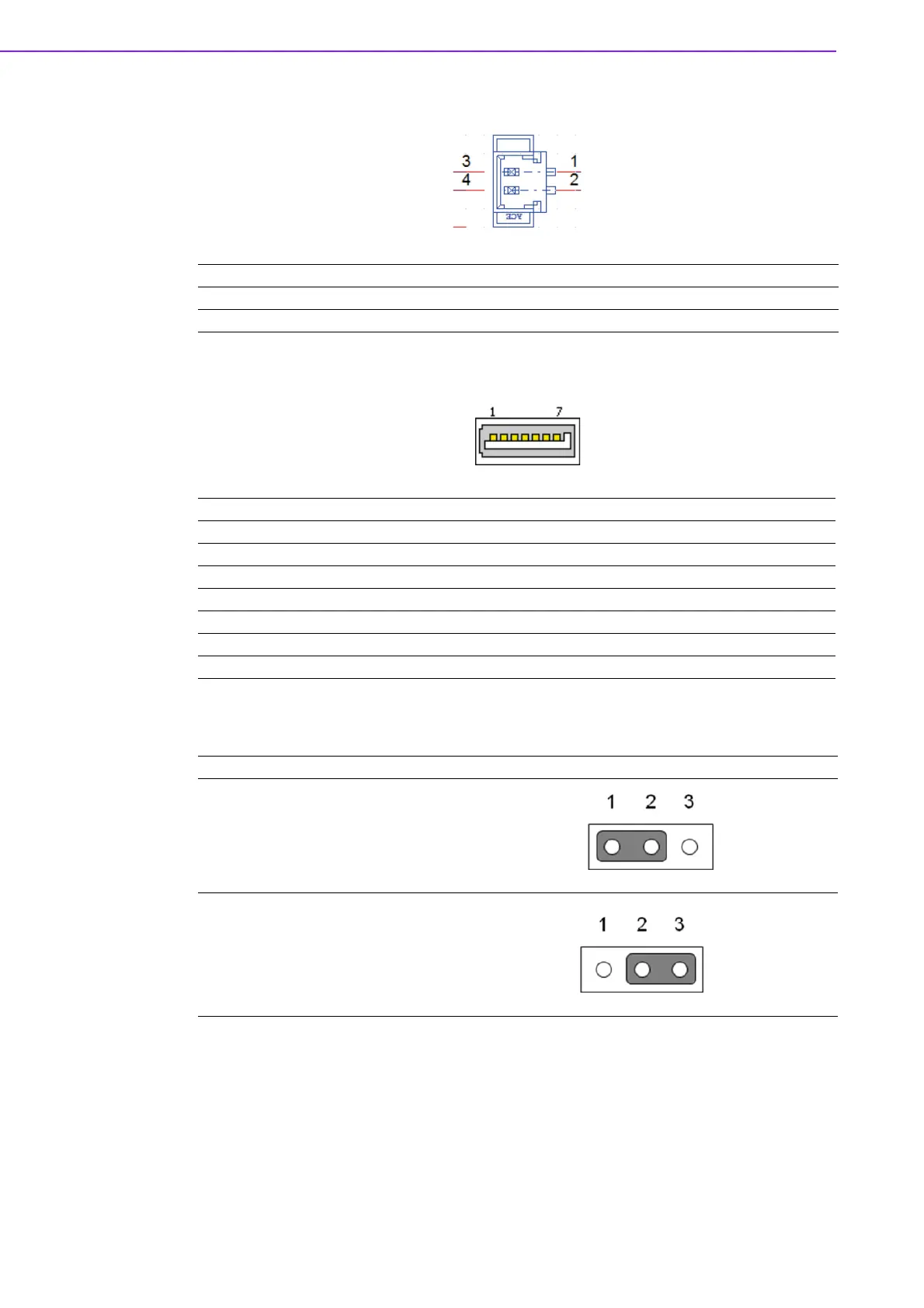

2.3.33 CMOS battery connector (BAT1)

2.3.34 Serial ATA interface connector (SATA1/SATA2/SATA3)

2.3.35 CMOS Clear Jumper (JCMOS1)

Pin Signal

1VBAT

2GND

Pin Signal

1GND

2TX+

3TX-

4GND

5RX-

6RX+

7GND

Function Jumper Setting

Keep COMS Data (Default)

Clear CMOS Date
