Advantech PCA-6186 - Parallel Port Connector (CN4)

PCA-6186 User’s Manual 112

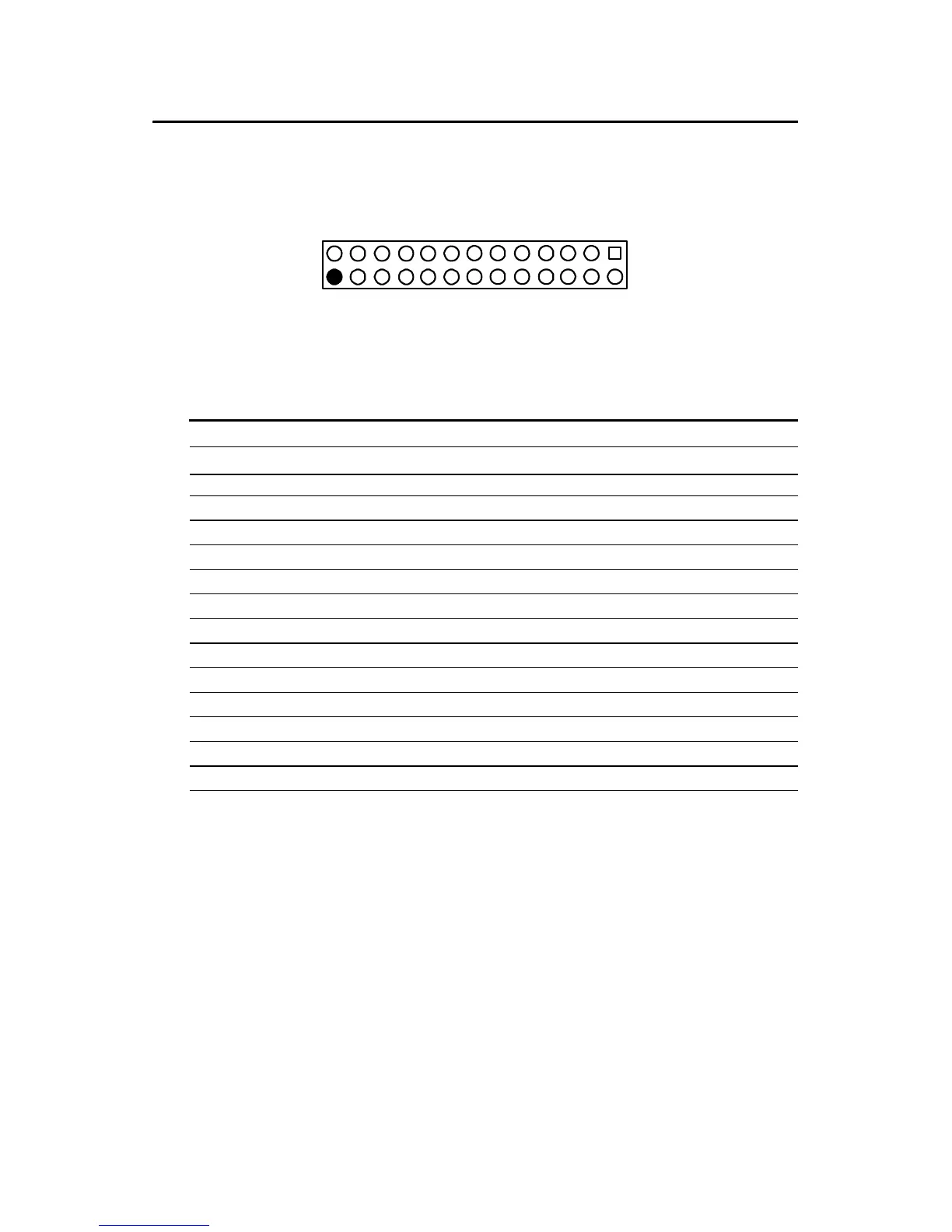

B.3 Parallel Port Connector (CN4)
Table B.3: Parallel port connector (CN4)
Pin Signal Pin Signal
1 STROBE* 14 AUTOFD*
2D0 15 ERR
3D1 16 INIT*
4D2 17 SLCTINI*
5D3 18 GND
6D4 19 GND
7D5 20 GND
8D6 21 GND
9D7 22 GND
10 ACK* 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SLCT 26 N/C
* low active
1526
13 2
25
12 1
14
