Advantech PCA-6186 - USB Connector (CN6); VGA Connector (CN7)

113 Appendix B

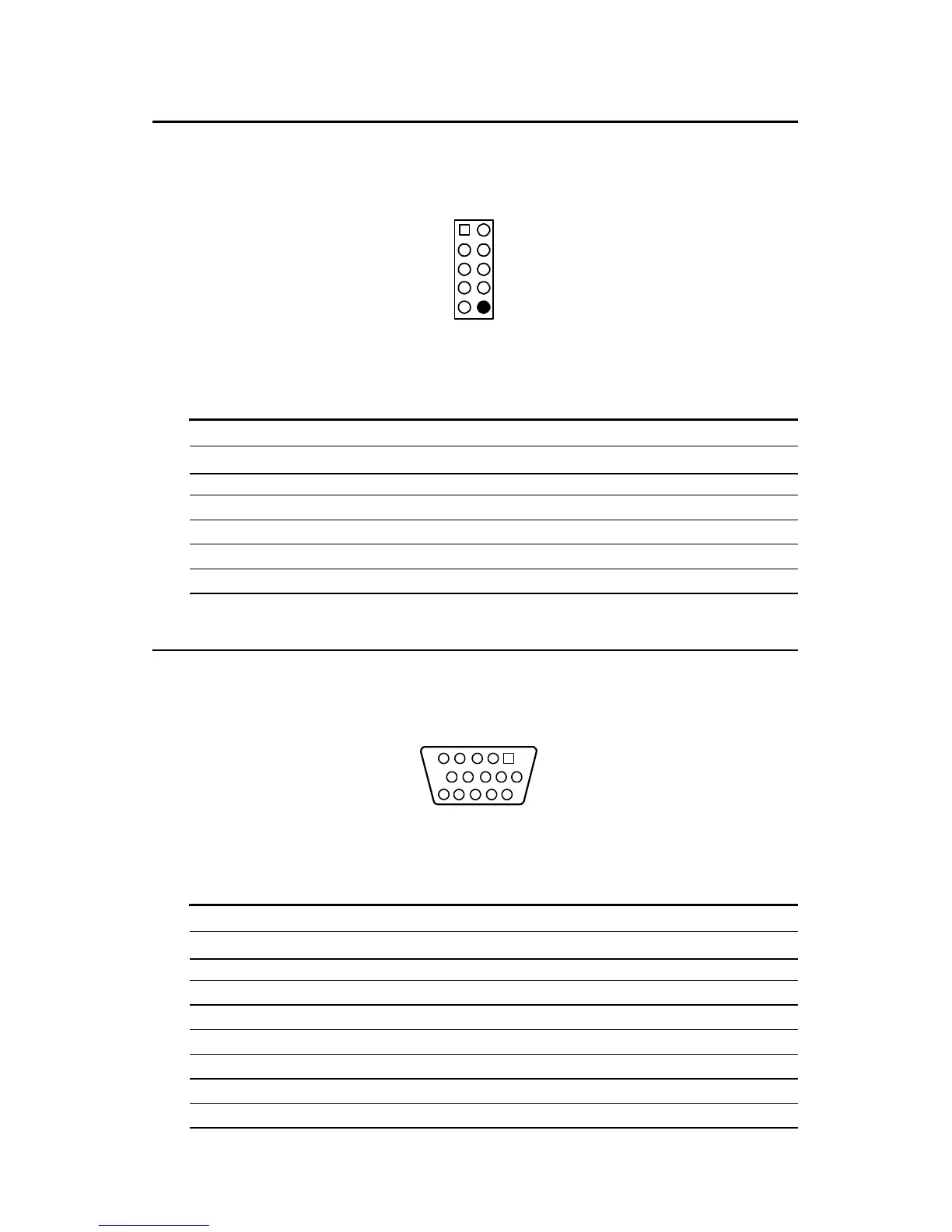

B.4 USB Connector (CN6)
Table B.4: USB1/USB2 connector (CN6)
Pin USB1 Signal Pin USB2 Signal
1+5 V 6 +5 V
2 UV- 7 UV-
3 UV+ 8 UV+
4 GND 9 GND
5 Chassis GND 10 N/C
B.5 VGA Connector (CN7)
Table B.5: Table B-6: VGA connector (CN7)
Pin Signal Pin Signal
1RED 9 VCC
2 GREEN 10 GND
3BLUE 11 N/C
4N/C 12 SDT
5 GND 13 H-SYNC
6 GND 14 V-SYNC
7GND 15 SCK
7
3
2
8
16
9
10
4
5
5
15
1
11
10 6
