41 Chapter 3
3.8 PnP/PCI Configurations
3.8.1 PnP OS Installed
Select Yes if you are using a plug and play capable operating system.
Select No if you need the BIOS to configure non-boot device
3.8.2 Reset Configuration Data
Default is Disable. Select Enable to reset Extended System Configura-
tion Data (ESCD) if you have installed a new add-on and system configu-
ration has caused such a conflict that OS cannot boot.
3.8.3 Resources controlled by:
The commands here are “Auto” or “Manual.” Choosing “manual”
requires you to choose resources from each following sub-menu. “Auto”
automatically configures all of the boot and Plug and Play devices but
you must be using Windows 95 or above.
3.8.4 PCI/VGA Palette Snoop
This is left at “Disabled.”

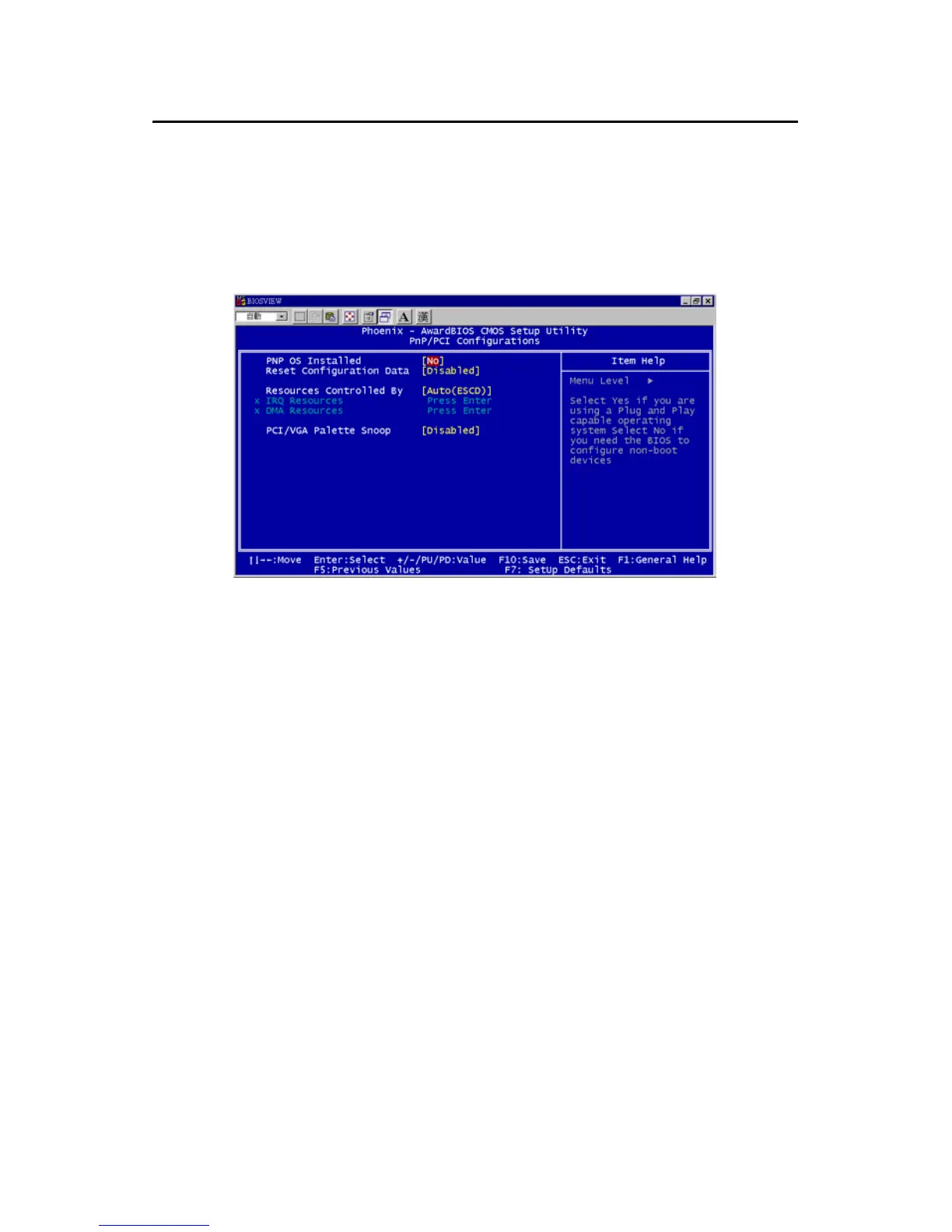

Figure 3.9: PnP/PCI configurations screen
