Advantech PCA-6186 - COM1;COM2 RS-232 Serial Port (CN9, CN10)

PCA-6186 User’s Manual 114

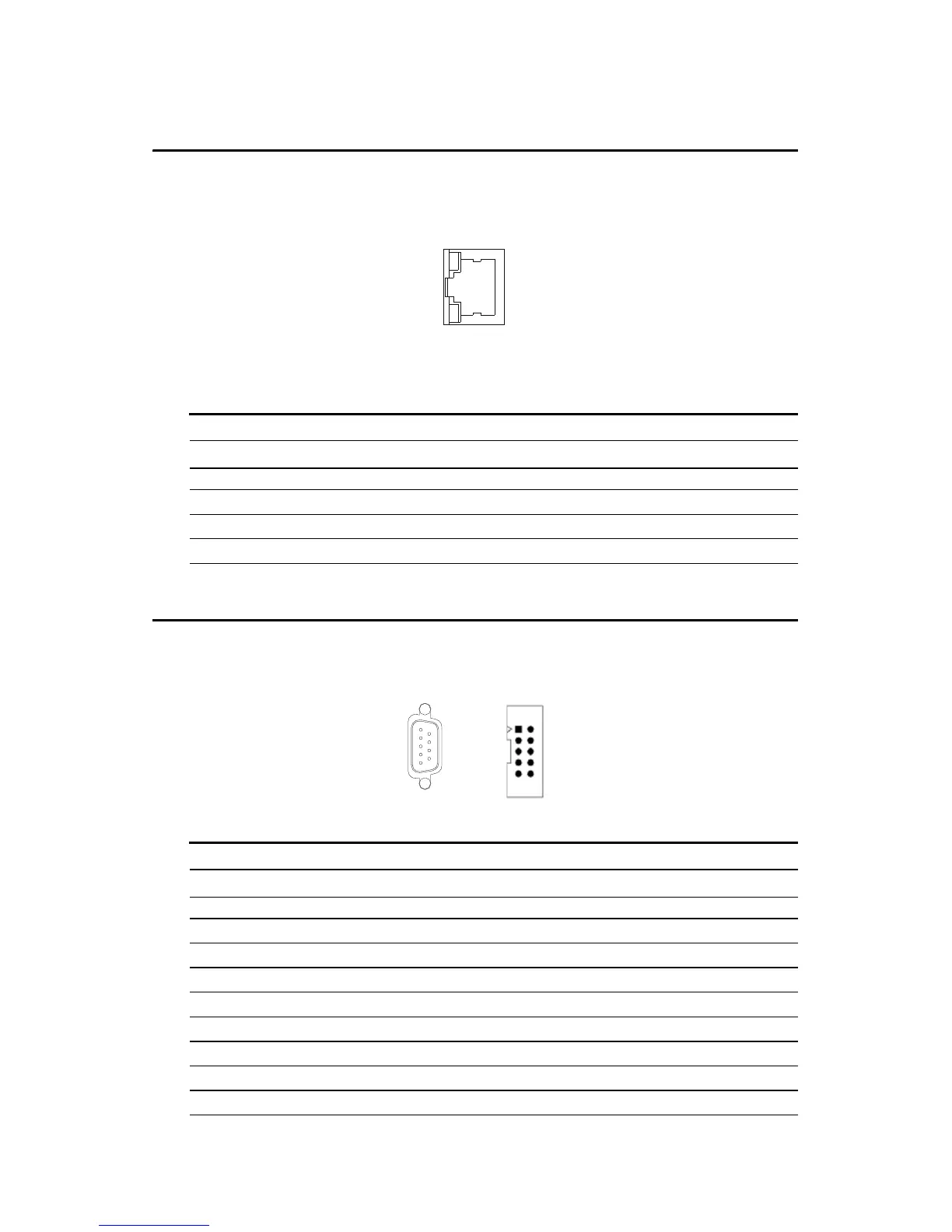

B.6 Ethernet 10/100Base-T RJ-45 Connector (CN8,
CN34)
Table B.6: Ethernet 10/100Base-T RJ-45 connector (CN8, CN34)
Pin Signal Pin Signal
1XMT+5 N/C
2 XMT- 6 RCV-
3 RCV+ 7 N/C
4 N/C 8 N/C
B.7 COM1/COM2 RS-232 Serial Port (CN9, CN10)
Table B.7: COM1/COM2 RS-232 serial port (CN9, CN10)
Pin Signal
1DCD
2RXD
3TXD
4DTR
5GND
6DSR
7RTS
8CTS
9RI
CN8 and CN34
