119 Appendix B

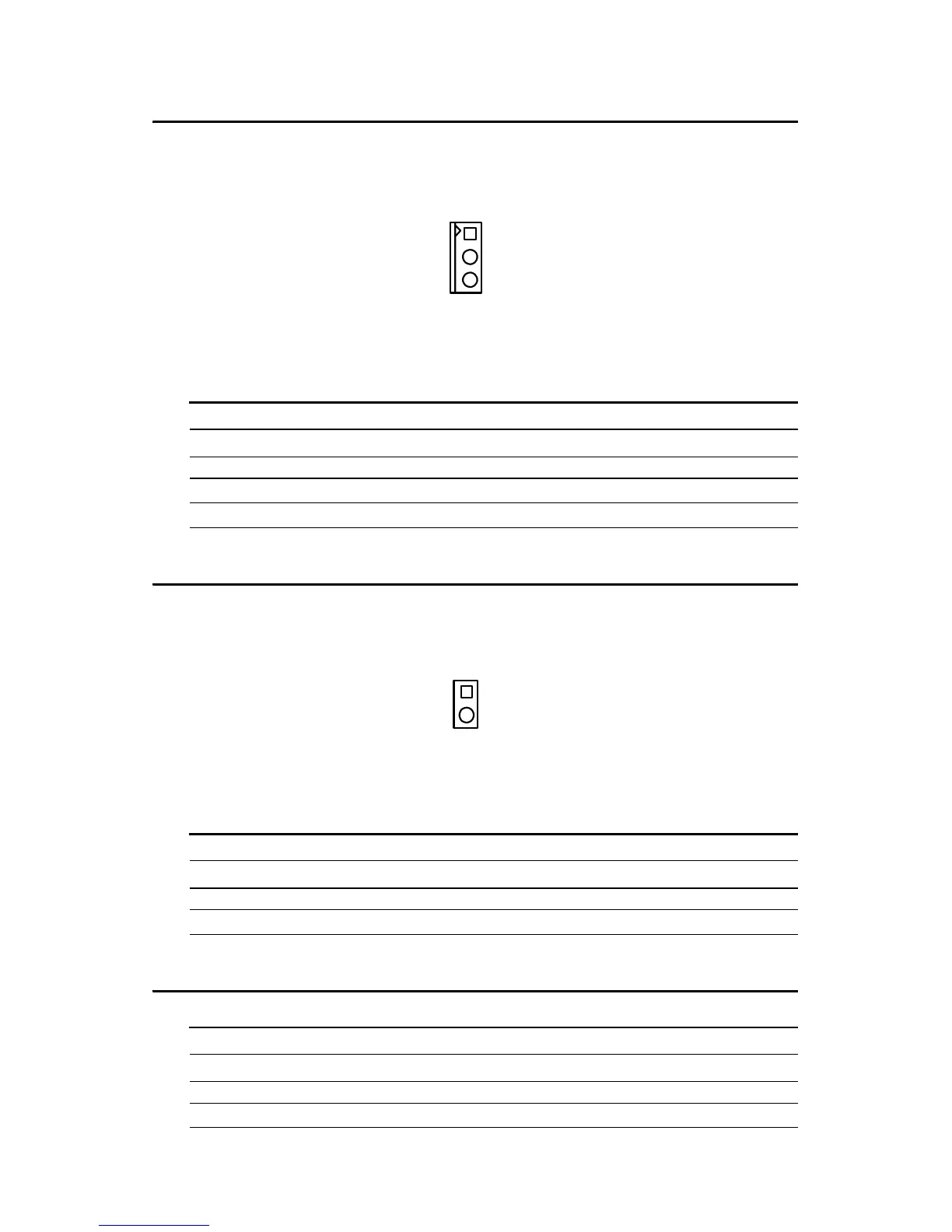

B.16 ATX Feature Connector (CN20)
Table B.16: ATX feature connector (CN20)
Pin Signal
1 PS-ON
2VCC
3VCCSB
B.17 ATX Soft Power Switch (CN21))
Table B.17: ATX soft power switch (CN21)
Pin Signal
1 5VSB
2PWR-BTN
B.18 H/W Monitor Alarm (CN22)
Table B.18: H/W monitor alarm (CN22)
Pin Signal
1 Enable OBS alarm
2 Disable OBS alarm
1
1
