121 Appendix B

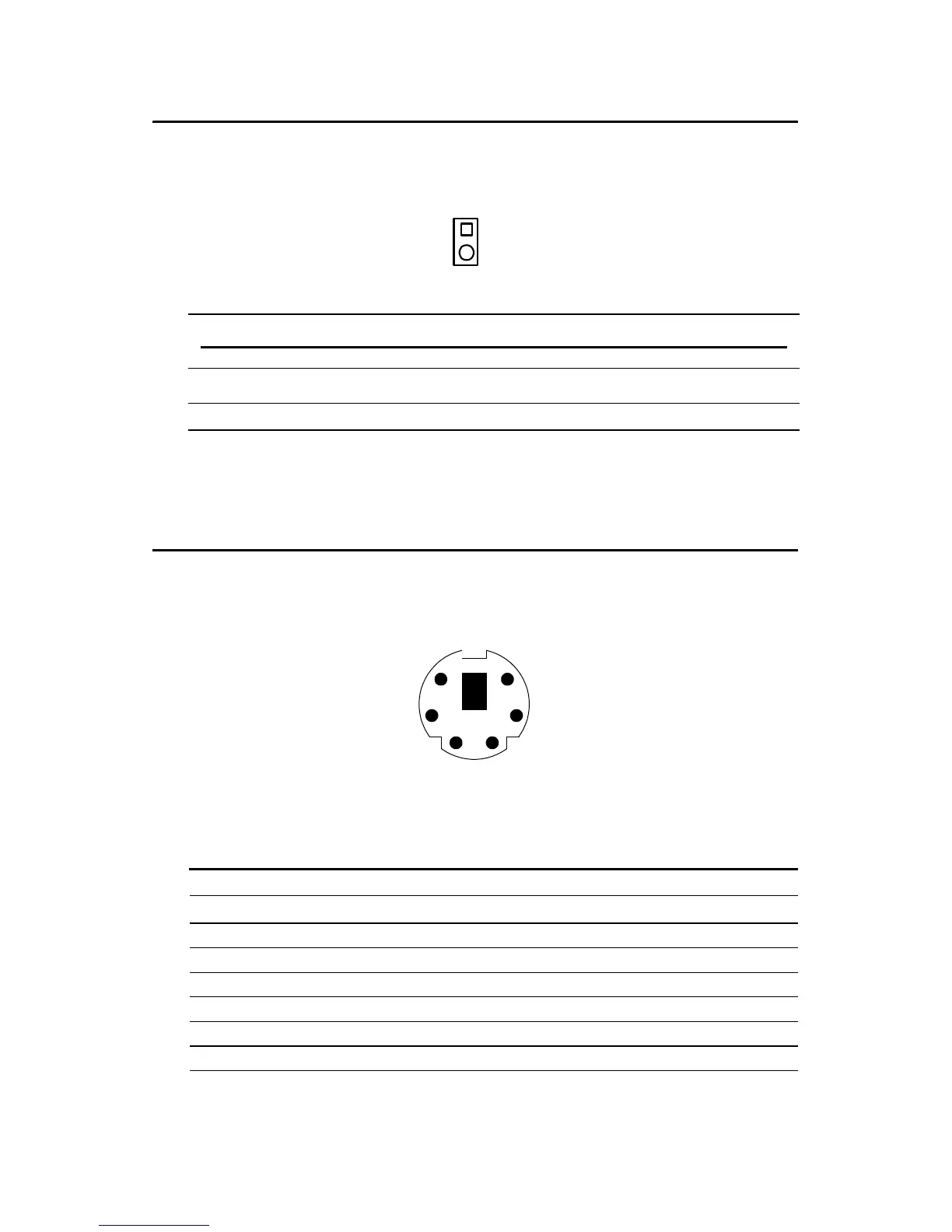

B.21 SM Bus Connector (CN29)
B.23 PS/2 Mouse Connector (CN33)
Table B.21: PS/2 mouse connector (CN33)
Pin Signal
1MS DATA
2N/C
3GND
4VCC
5MS CLOCK
6N/C
B.22 SM Bus Connector (CN 29)
Pin Signal
1SMB_DATA
2SMB_CLK
1
5
3
12
4
6
