Advantech PCI Series - 2.2 Jumper and Switch Locations

9 PCI Communication User Manual
Chapter 2 Hardware Configuration
2.2 Jumper and Switch Locations
2.2.1 PCI-1602B

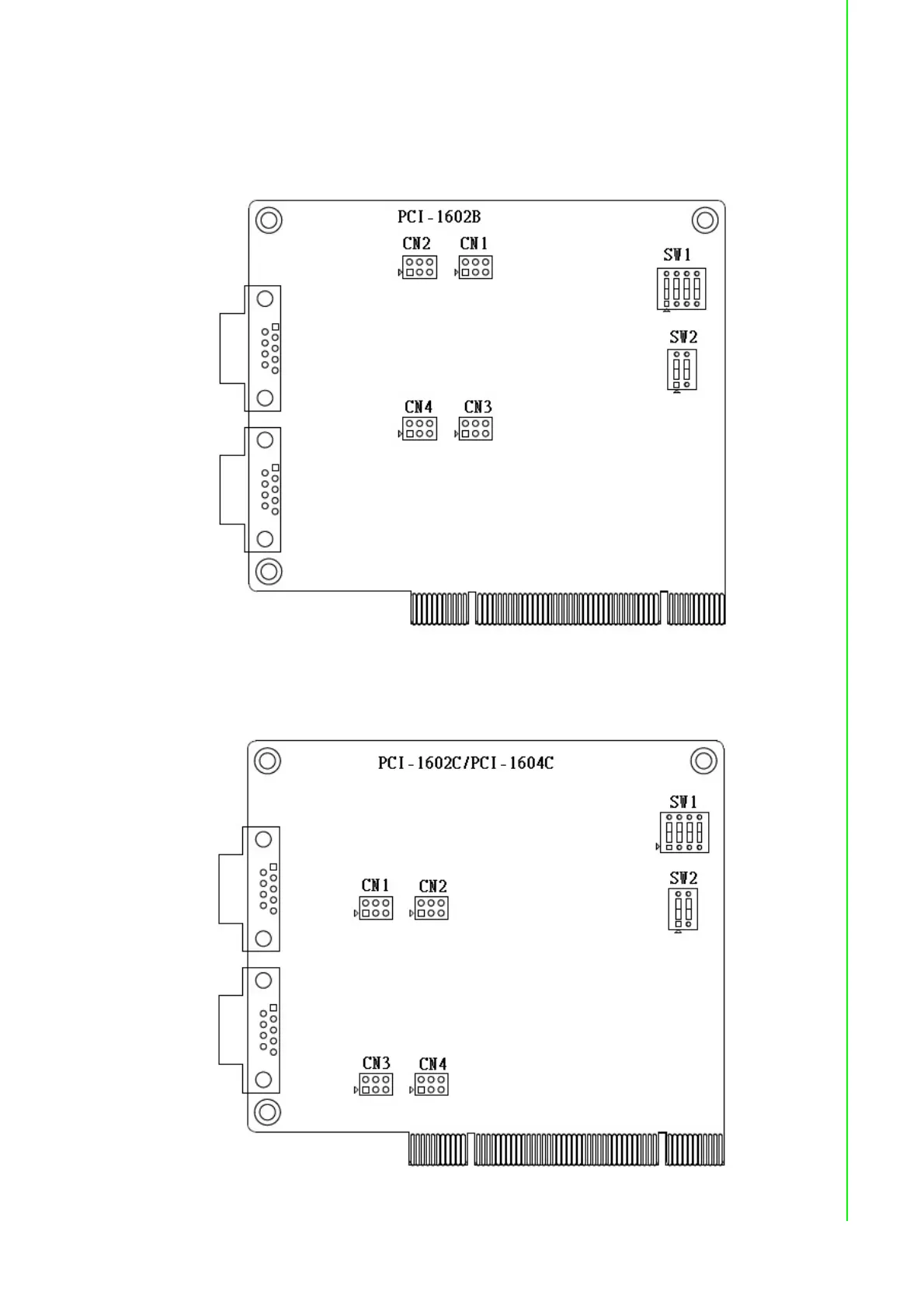

Figure 2.1 PCI-1602B Silk Screen
2.2.2 PCI-1602C/PCI-1604C
Figure 2.2 PCI-1602C/1604C Silk Screen
