41 PCI Communication User Manual

Chapter 5 Pin Assignments and Wiring

5.1.5 PCI-1620A, PCI-1620B and PCI-1622B

The following tables show the cable pin assignments for connecting a female DB62

connector (bracket) to a DB9 connector for the PCI-1620A, PCI-1620B, and PCI-

1622B.

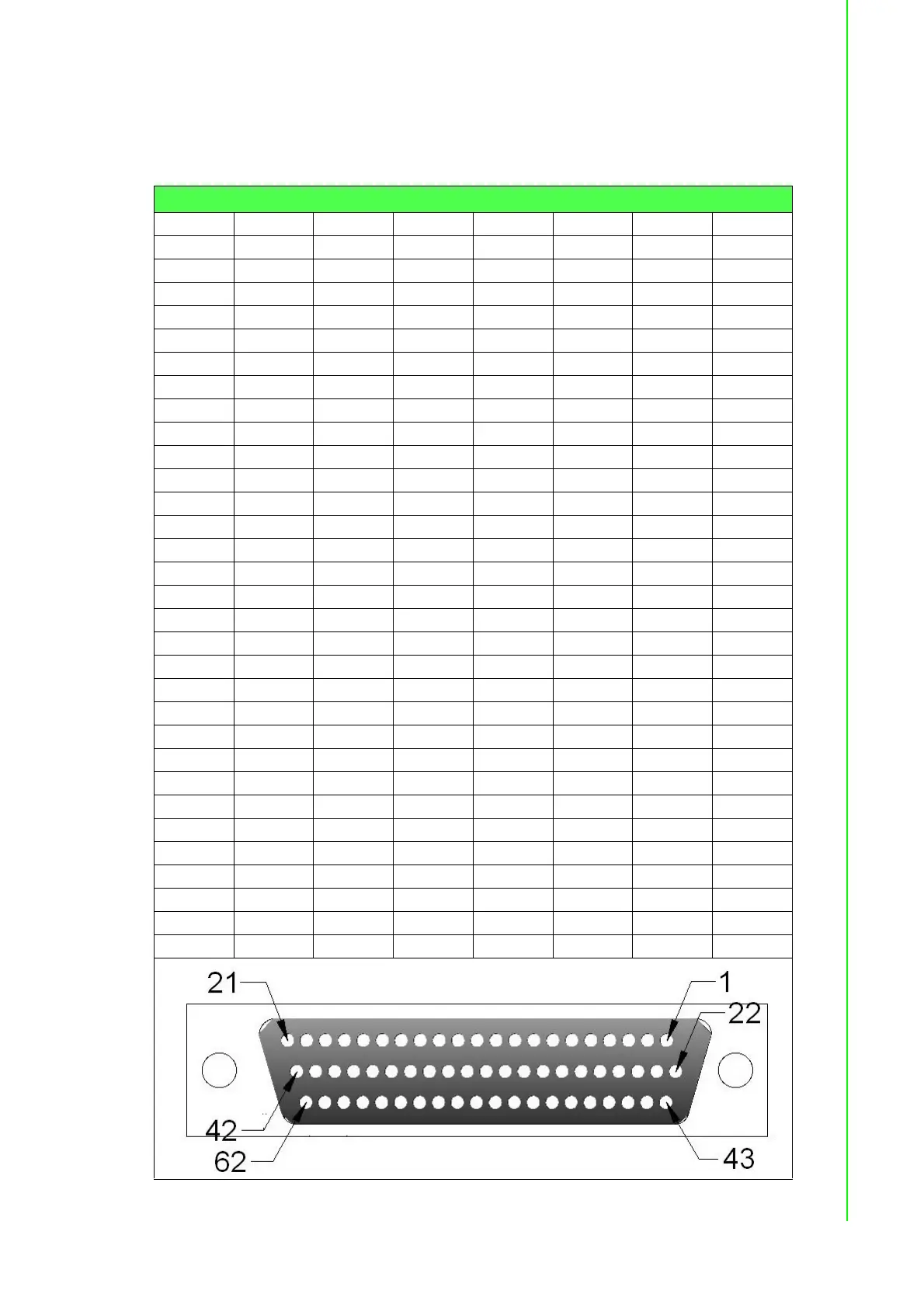

Table 5.9: PCI-1620A, PCI-1620B and PCI-1622B Female DB62 (Bracket)

Pin RS-232 RS-422 RS-485 Pin RS-232 RS-422 RS-485

1 1_TX 1_RX+ - 32 GND GND GND

2 1_DTR 1_RX- - 33 5_TX 5_RX+ -

3 2_RX 2_TX+ 2_Data+ 34 5_DTR 5_RX- -

4 2_DSR - - 35 6_RX 6_TX+ 6_Data+

5 2_DCD 2_TX- 2_Data- 36 6_DSR - -

6 3_TX 3_RX+ - 37 6_DCD 6_TX- 6_Data-

7 3_DTR 3_RX- - 38 7_TX 7_RX+ -

8 4_RX 4_TX+ 4_Data+ 39 7_DTR 7-RX- _

9 4_DSR - - 40 GND GND GND

10 4_DCD 4_TX- 4_Data- 41 8_TX 8_RX+ -

11 5_RX 5_TX+ 5_Data+ 42 8_DTR 8_RX- -

12 5_DSR - - 43 1_CTS - -

13 5_DCD 5_TX- 5_Data- 44 1_RTS - -

14 6_TX 6_RX+ - 45 GND GND GND

15 6_DTR 6_RX- - 46 2_CTS - -

16 7_RX 7_TX+ 7_Data+ 47 2_RTS - -

17 7_DSR - - 48 3_CTS - -

18 7_DCD 7_TX- 7_Data- 49 3_RTS - -

19 8_RX 8_TX+ 8_Data+ 50 GND GND GND

20 8_DSR - - 51 4_CTS - -

21 8_DCD 8_TX- 8_Data- 52 4_RTS - -

22 1_RX 1_TX+ 1_Data+ 53 5_CTS - -

23 1_DSR - - 54 5_RTS - -

24 1_DCD 1_TX- 1_Data- 55 GND GND GND

25 2_TX 2_RX+ - 56 6_CTS - -

26 2_DTR 2_RX- - 57 6_RTS - -

27 3_RX 3_TX+ 3_Data+ 58 GND GND GND

28 3_DSR - - 59 7_CTS - -

29 3_DCD 3_TX- 3_Data- 60 7_RTS - -

30 4_TX 4_RX+ - 61 8_CTS - -

31 4_DTR 4_RX- - 62 8_RTS - -

Advantech PCI Series User Manual
