43 PCI Communication User Manual

Chapter 5 Pin Assignments and Wiring

5.1.6 PCI-1622C

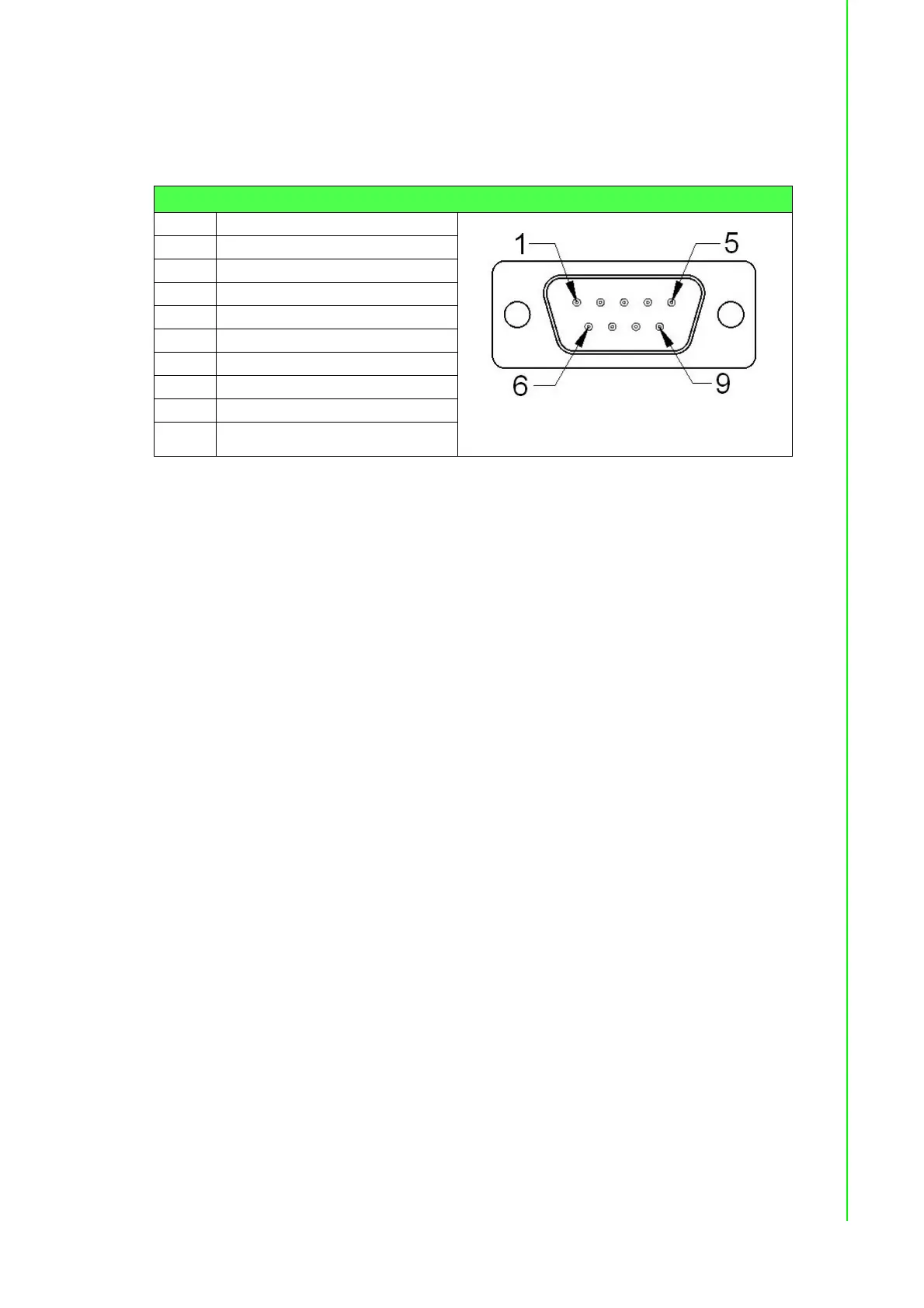

The following table shows the cable pin assignments for connecting a female DB78

connector (bracket) to a DB9 connector for the PCI-1622C in RS-232, RS-422, and

RS-485 modes.

Table 5.13: PCI-1622C Male DB9 (Cable)

Pin RS-232 RS-422 RS-485

1 DCD Tx- Data-

2RxDTx+ Data+

3TxDRx+N/A

4DTRRx- N/A

5GNDGNDGND

6 DSR RTS- N/A

7RTSRTS+N/A

8 CTS CTS+ N/A

9RI CTS-N/A
