PCI Communication User Manual 38

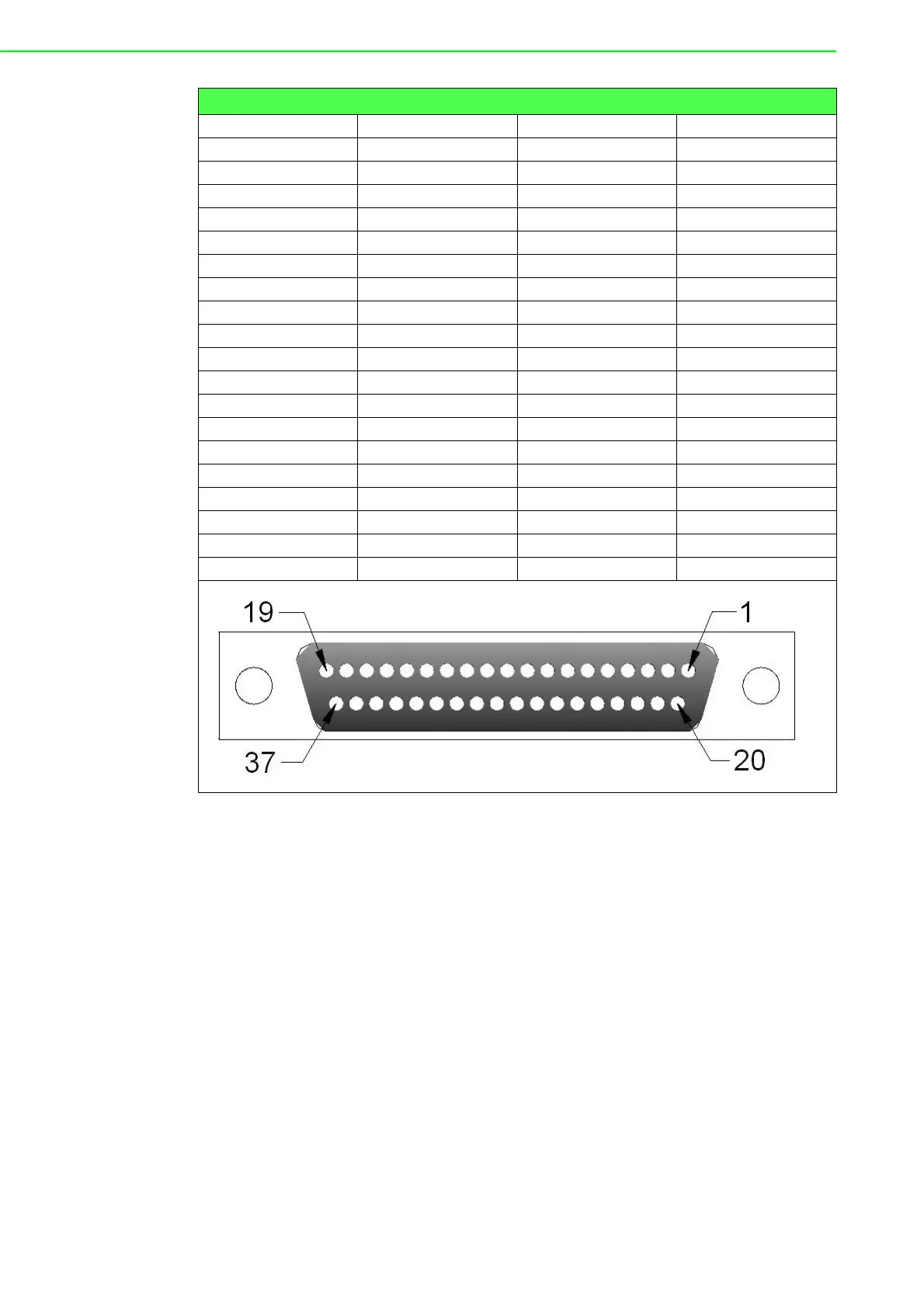

Table 5.5: PCI-1610B/C Female DB37 (Bracket)

Pin RS-232 Pin RS-232

1 - 20 3_RI

2 3_DCD 21 3_DTR

3 3_GND 22 3_DSR

4 3_CTS 23 3_RTS

5 3_RxD 24 3_TxD

64_RI254_DCD

7 4_DTR 26 4_GND

8 4_DSR 27 4_CTS

9 4_RTS 28 4_RxD

10 4_TxD 29 2_RI

11 2_DCD 30 2_DTR

12 2_GND 31 2_DSR

13 2_CTS 32 2_RTS

14 2_RxD 33 2_TxD

15 1_RI 34 1_DCD

16 1_DTR 35 1_GND

17 1_DSR 36 1_CTS

18 1_RTS 37 1_RxD

19 1_TxD
