Chapter 4 System Configuration

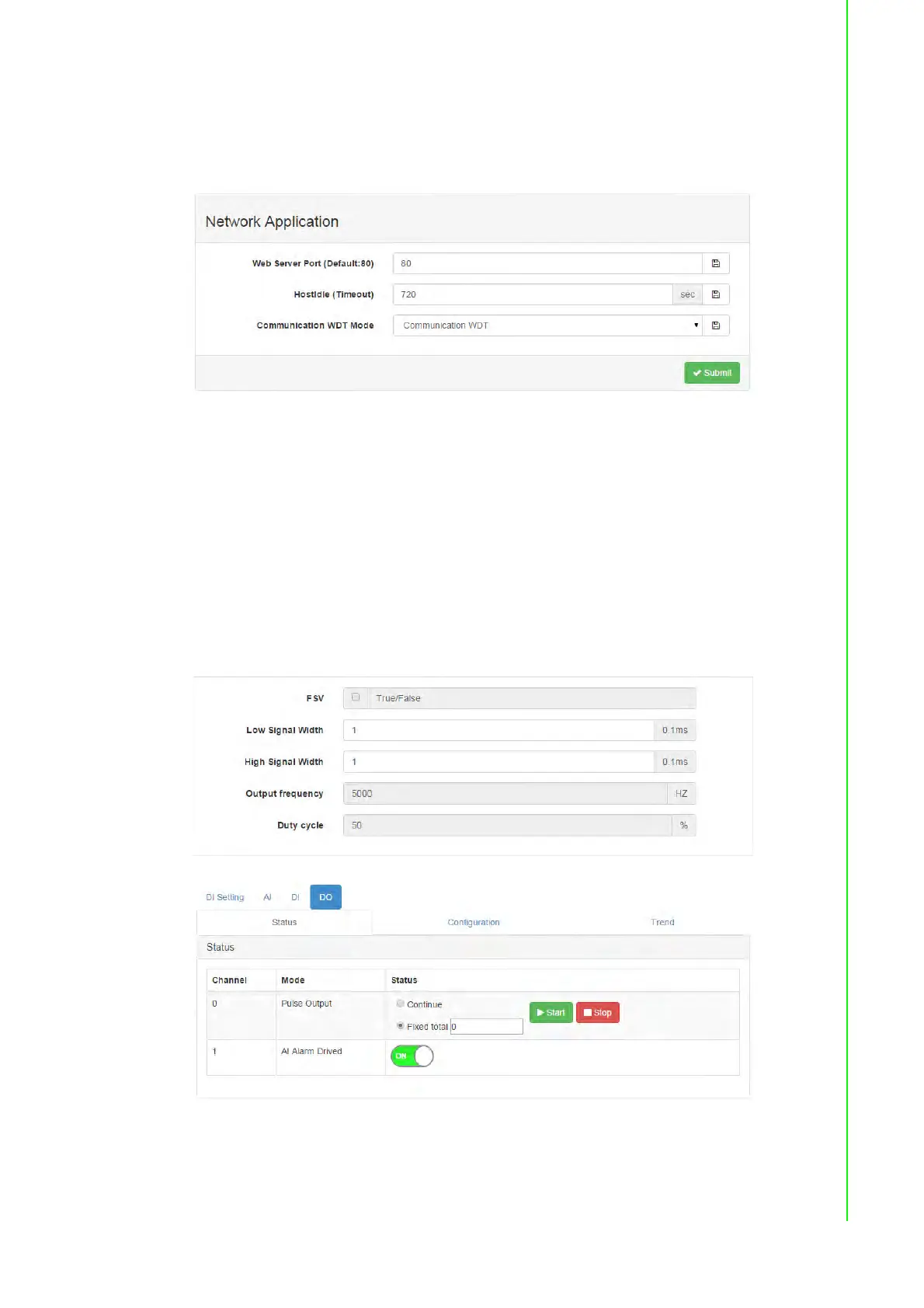

To decide the time period to trigger the communication WDT, go to Network Applica-
tion to enable the Communication WDT Mode as Communication WDT first, and
then configure the Host Idle (Timeout). (Unit: second) The default host idle time is
720 seconds.
Pulse Output
After you choose the Pulse Output mode, the selected digital output channel can
generate continuous pulse train or finite pulses. You can define the pulse width by
entering into the Low Signal Width and High Signal Width text box in the configura-
tion page. (Unit: 0.1 ms) The frequency and duty cycle of the pulse output signal will
be calculated automatically and displayed by the Output frequency and Duty cycle
text box.
Then choose whether to generate a continuous pulse train or finite pulses by select-
ing the Continuous (for pulse train) or the Fixed total (for finite pulses). The text box
on the right of the Fixed total button is used to define how many pulses you want to
generate. After selecting pulse output mode, click the Start or Stop button to gener-
ate or to stop the pulse output.
