WISE-4210 Series User Manual 22
WISE-S250

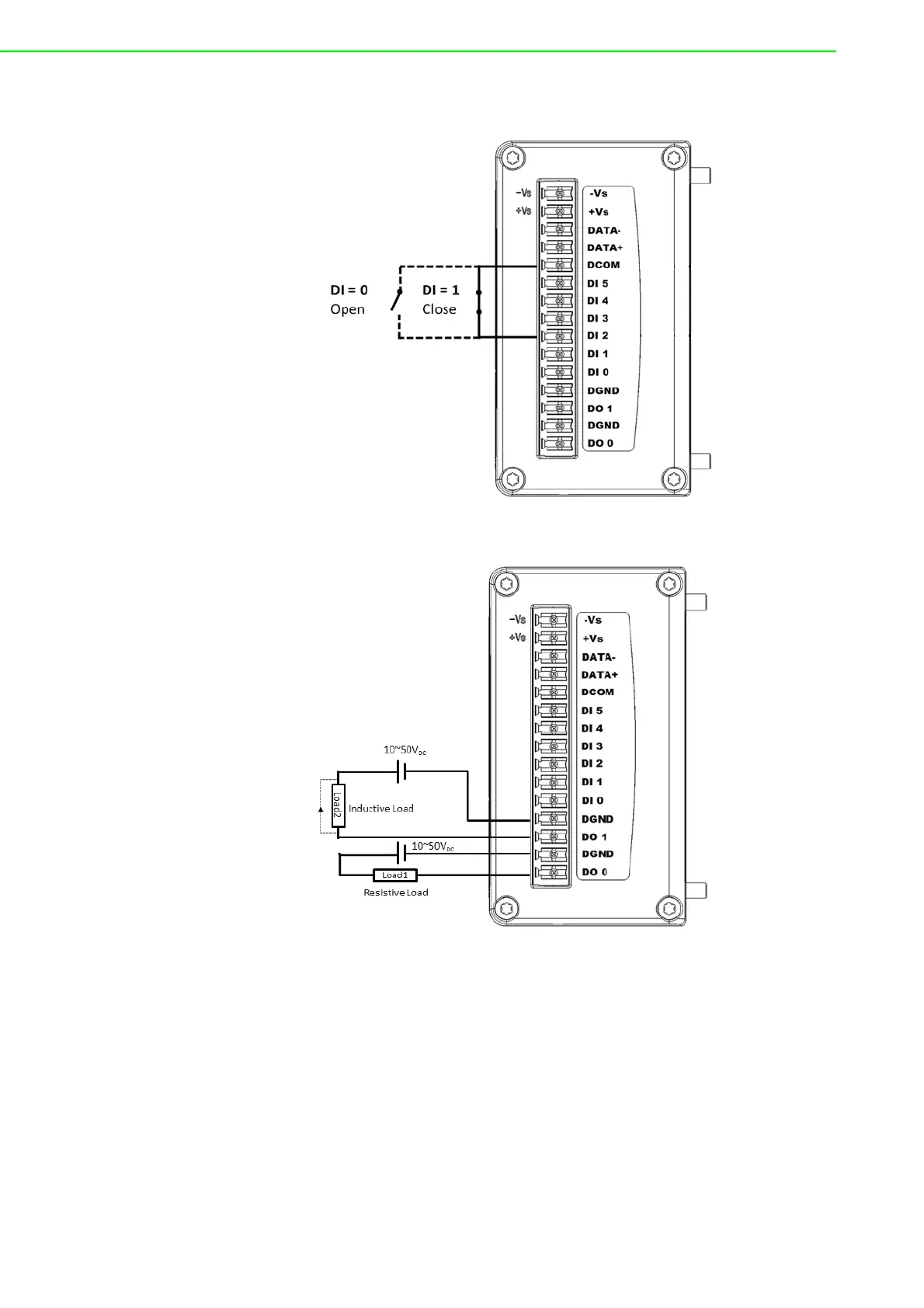

Figure 2.9 WISE-S250 Digital Input Wiring Diagram
Figure 2.10 WISE-S250 Digital Output Wiring Diagram
