2.7 Landing Gear Operations

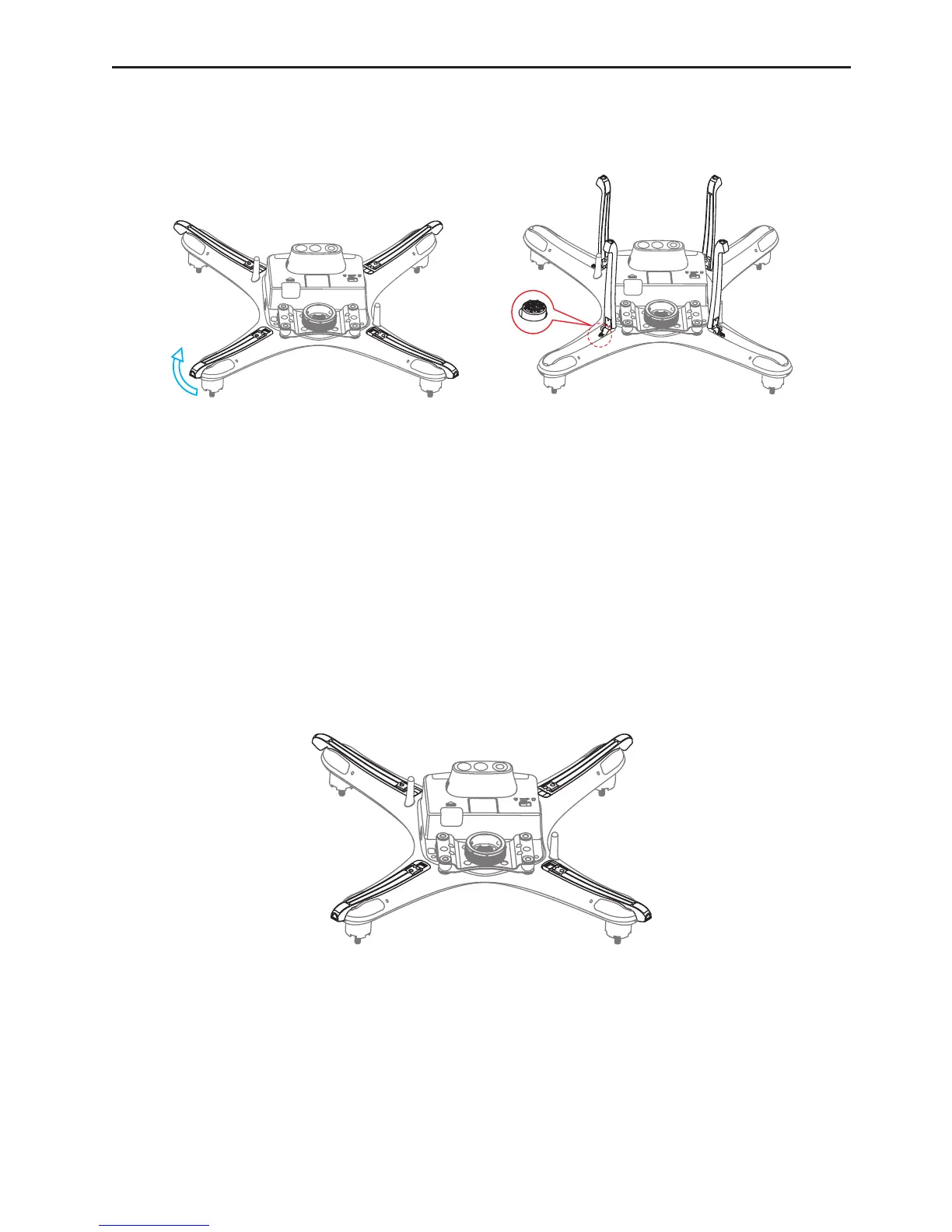

(1) Pullthelandinggear(Fig.A)uptoerectituntilyouhearaclicksound.
(2) Presstheretractbutton(Fig.B)andretractthelandinggear.
,OM'
,OM(
Note: therearetwotypesoflandinggears:automaticretractablelandinggear(Condor Elite)andmanual
retractablelandinggear(Condor Advanced).
2.8 Install the Optical Flow Module (Only for Condor Elite)
Followthestepsbelowtoinstalltheopticalowmodule:
(1) FittherightfasteneroftheopticalowmoduleintotherightlockingseatoftheUAV.
(2) Pressandholdthebuttonoftheleftfasteneroftheopticalowmodule,tthepinandleftfastener
oftheopticalowmodulerespectivelyintothepinholeandleftlockingseatoftheUAV,pressthe
leftfastenerdown,andthenreleasethebutton.
(3) Pulltheopticalowmoduleuplightlytocheckwhetheritisinstalledreliably.Ifnot,repeatstep(1)and
(2)untilitisinstalledreliably.
(4) DonotplugorremovetheVisualmoduleandultrasonicmodulewhentheUAVispoweredon.
(5) Thegure12belowshowstheinstallationeect.

Fig.12
