EN
1205. 6755517_02
25
19. SELECTION AND PLACE OF IN
STALLATION
Before beginning installation consent with client and
pay attention to the following recommendations:
1. The support surface must be capable of sup-
porting the unit weight;
2. The safety differences between the unit and
ther appliances or structures must be scrupu-
lously respected so that the inlet and outlet
AIR from the fans is free to circulate;
3. The unit must be installed by an enabled
technician in compliance with the national le-
gislation in force in the country of destination,
respecting the minimum technical spaces in
order to allow maintenance.

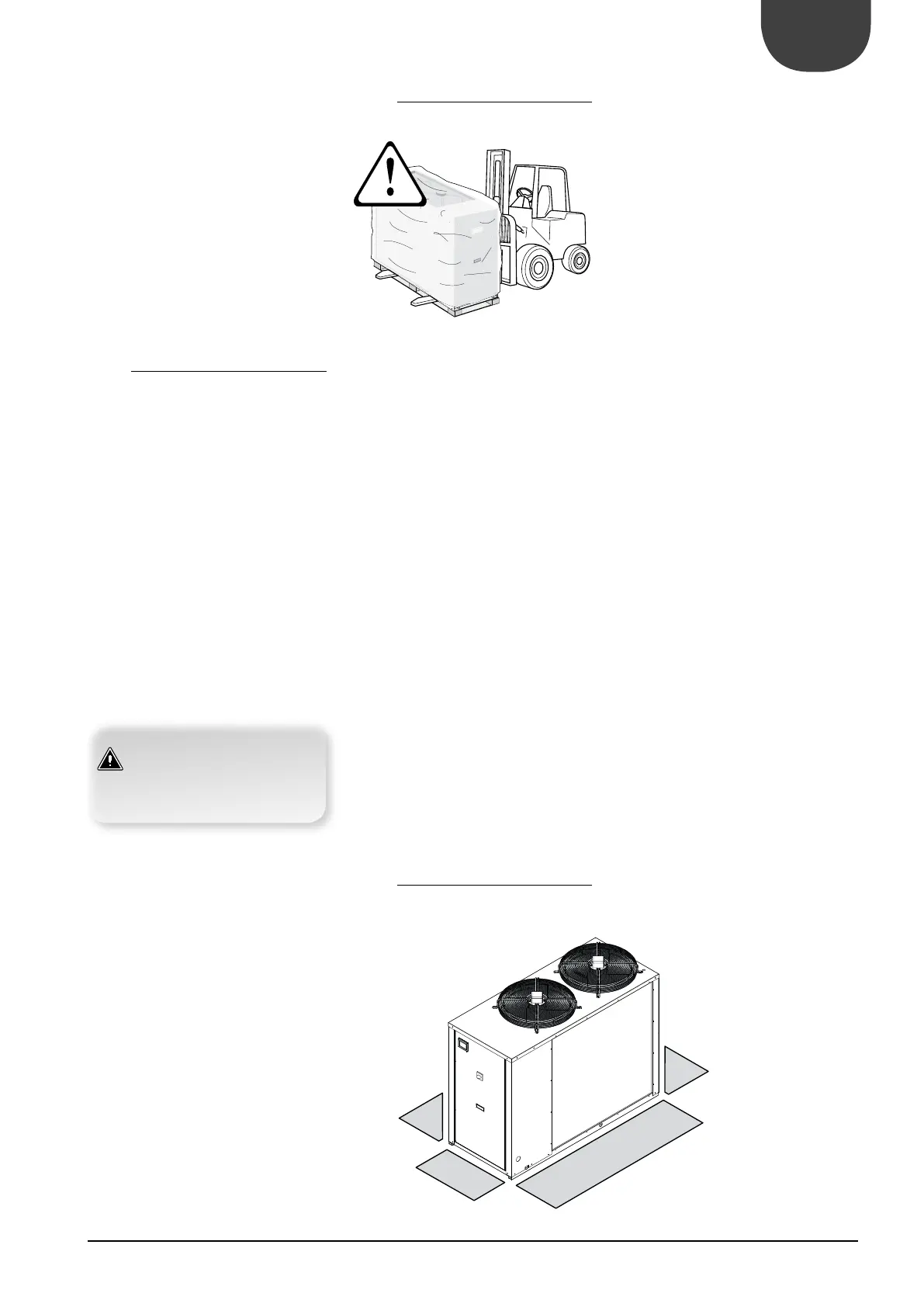

19.2.1. POSITIONING
Before handling the unit, verify the lifting capacity of
the machines used, respecting the indications given
on the packaging.
Insert pipes into the holes supplied on the base
such to allow positioning of the lifting belts and
relative safety pins.
Position the unit in the place indicated by the
customer, placing a rubber covering between the
For further information, refer to the dimensional
tables.
Fix the unit checking that it is level. Make sure that
the hydraulic and electric part can be easily reached.
In case of installation in places where gusts of wind
are frequent, fix the unit suitably using tie-rods.
Envision the installation of the condensate drain tray
in the versions where envisioned.
ATTENTION
19.2.2. EXEMPOL OF MOVIMENTATION
1100 mm
800 mm
800 mm
800 mm
19.2.3. MINIMUM TECHNICAL SPACES
