EN
1205. 6755517_02
27
ATTENTION
The choice and the installation of
components external to the ANL
operate according to the rules
of good technical design and in
compliance with the regulations in
force in the country of destination.
ATTENTION
The hydraulic pipes connecting to
the machine must be properly si-
zed to the actual flow of water re-
quired by the system in operation.
The water flow to the exchanger
must always be constant.
ATTENTION
Carefully wash the plant, before
connecting the unit. This allows
cleaning to remove any residue
such as weld spatter, slag, rust or
other impurities from the pipes.
These substances may otherwise
accumulate in and cause a machi-
ne malfunction. The connecting
pipes should be supported so as
not to weigh, with their weight on
the unit.
PH 6-8
less than 50 ppm
less than 50 ppm
less than 0,3 ppm
less than 50 ppm
less than 50 ppm
none
None
less than 30 ppm

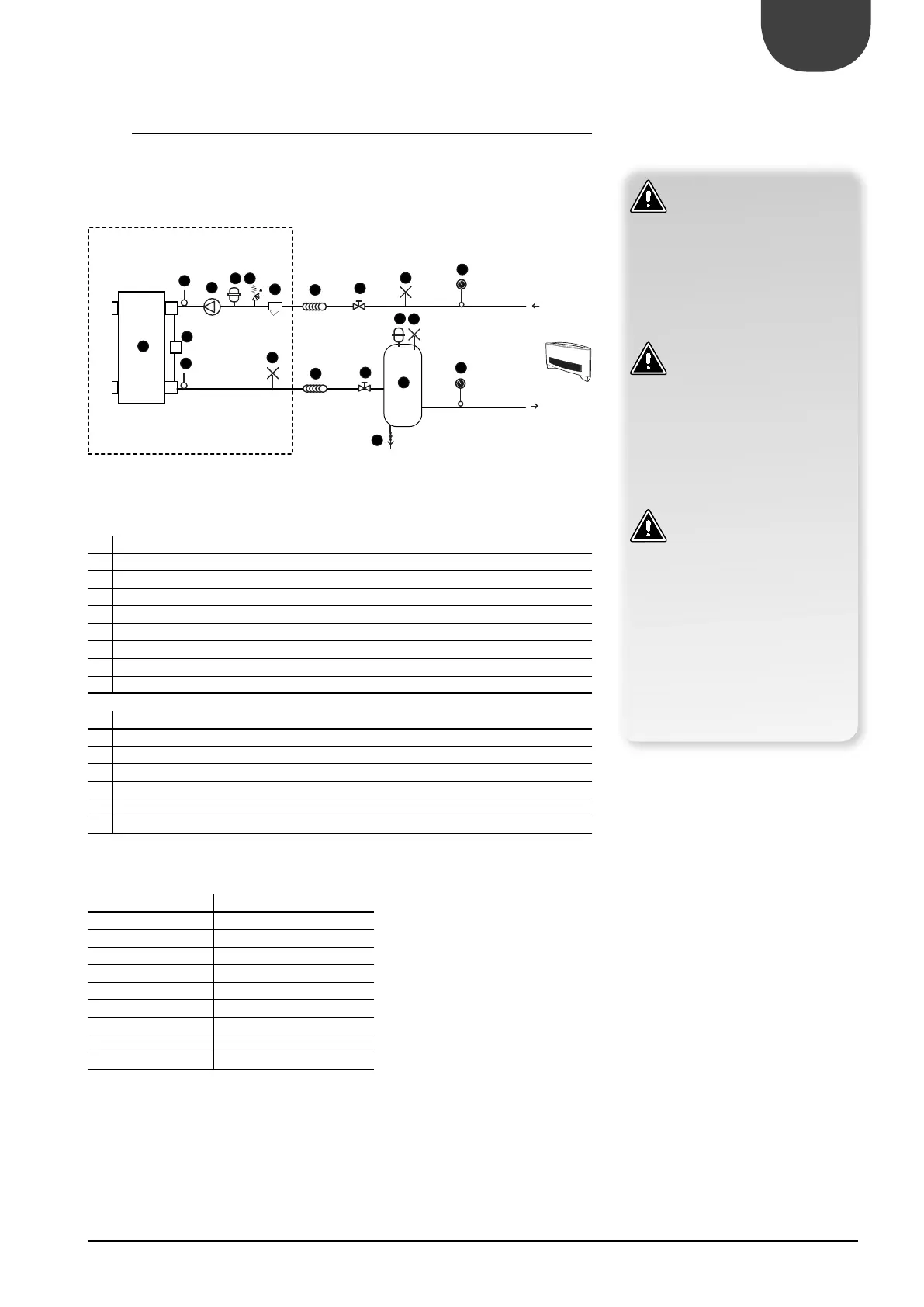

20.2.
HYDRAULIC
COMPONENTS
ANL
HYDRAULIC COMPONENTS
SUGGESTED EXTERNAL UNIT
3
PD
4
4
2
12
5
5
1
8
13
7
11
6
8
9
10
11
13
8
7
COMPONENTS SUPPLIED AS STANDARDS
1 Water filter
2 Pressure switch
3 Plate exchanger
4
6 Safety valve
7 Expansion tank
8
12 Pump
NOT SUGGESTED COMPONENTS PROVIDED TO LOAD INSTALLER
5 anti vibration joints
7
9 Storage tank
10 Drain cock
11 Ball Stop
13 Manometer
